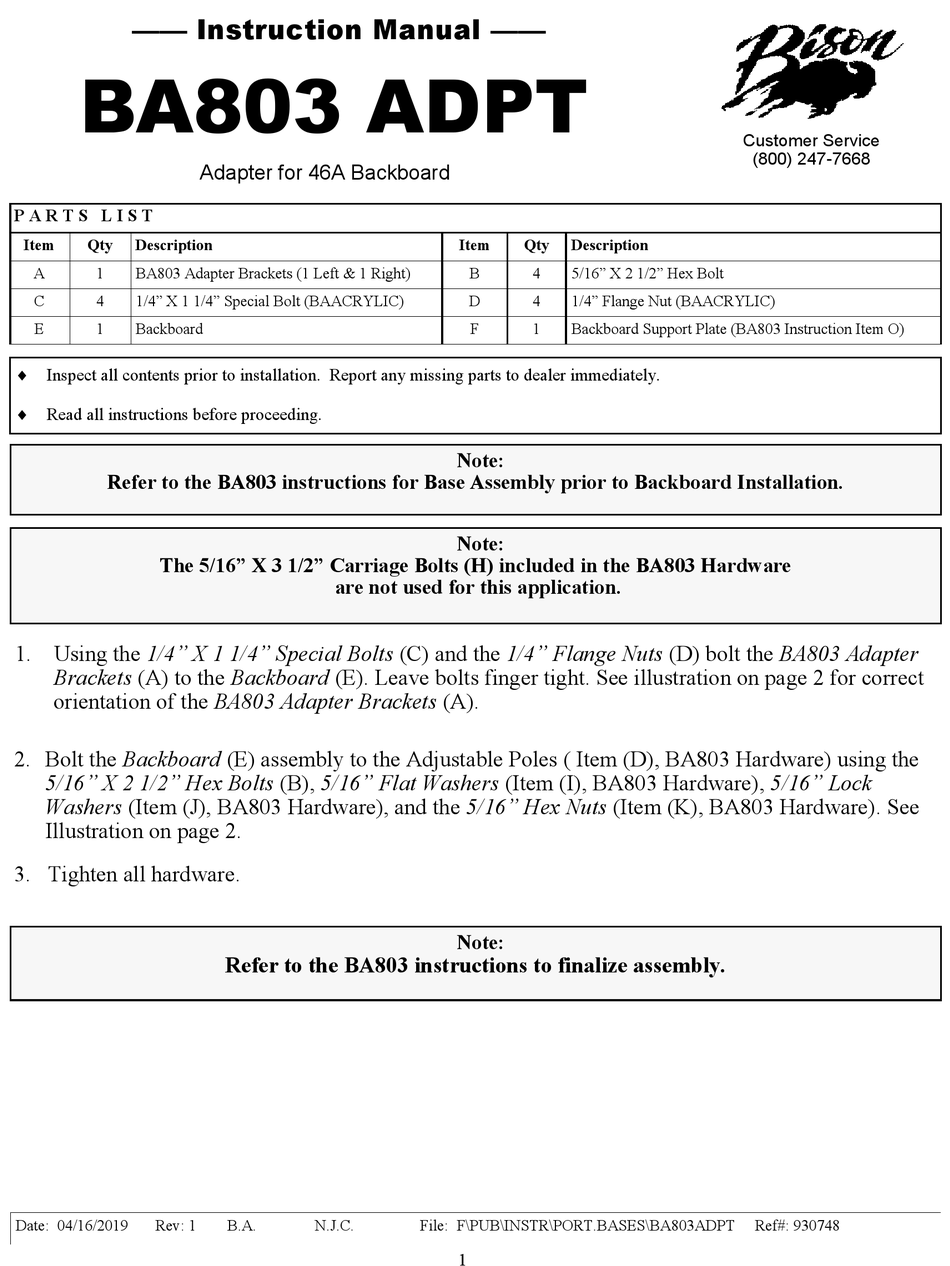

—— Instruction Manual ——
BA803 ADPT
P A R T S L I S T
Item Qty Description
A 1 BA803 Adapter Brackets (1 Left & 1 Right)
C 4 1/4" X 1 1/4" Special Bolt (BAACRYLIC)
E 1 Backboard

Inspect all contents prior to installation. Report any missing parts to dealer immediately.

Read all instructions before proceeding.
Refer to the BA803 instructions for Base Assembly prior to Backboard Installation.
The 5/16" X 3 1/2" Carriage Bolts (H) included in the BA803 Hardware
1. Using the 1/4" X 1 1/4" Special Bolts (C) and the 1/4" Flange Nuts (D) bolt the BA803 Adapter
Brackets (A) to the Backboard (E). Leave bolts finger tight. See illustration on page 2 for correct
orientation of the BA803 Adapter Brackets (A).
2. Bolt the Backboard (E) assembly to the Adjustable Poles ( Item (D), BA803 Hardware) using the
5/16" X 2 1/2" Hex Bolts (B), 5/16" Flat Washers (Item (I), BA803 Hardware), 5/16" Lock
Washers (Item (J), BA803 Hardware), and the 5/16" Hex Nuts (Item (K), BA803 Hardware). See
Illustration on page 2.
3. Tighten all hardware.
Date: 04/16/2019 Rev: 1
Adapter for 46A Backboard
are not used for this application.
Refer to the BA803 instructions to finalize assembly.
B.A. N.J.C.
Item Qty Description
B 4 5/16" X 2 1/2" Hex Bolt
D 4 1/4" Flange Nut (BAACRYLIC)
F 1 Backboard Support Plate (BA803 Instruction Item O)
Note:
Note:
Note:
File: F\PUB\INSTR\PORT.BASES\BA803ADPT
1
Customer Service
(800) 247-7668
Ref#: 930748
