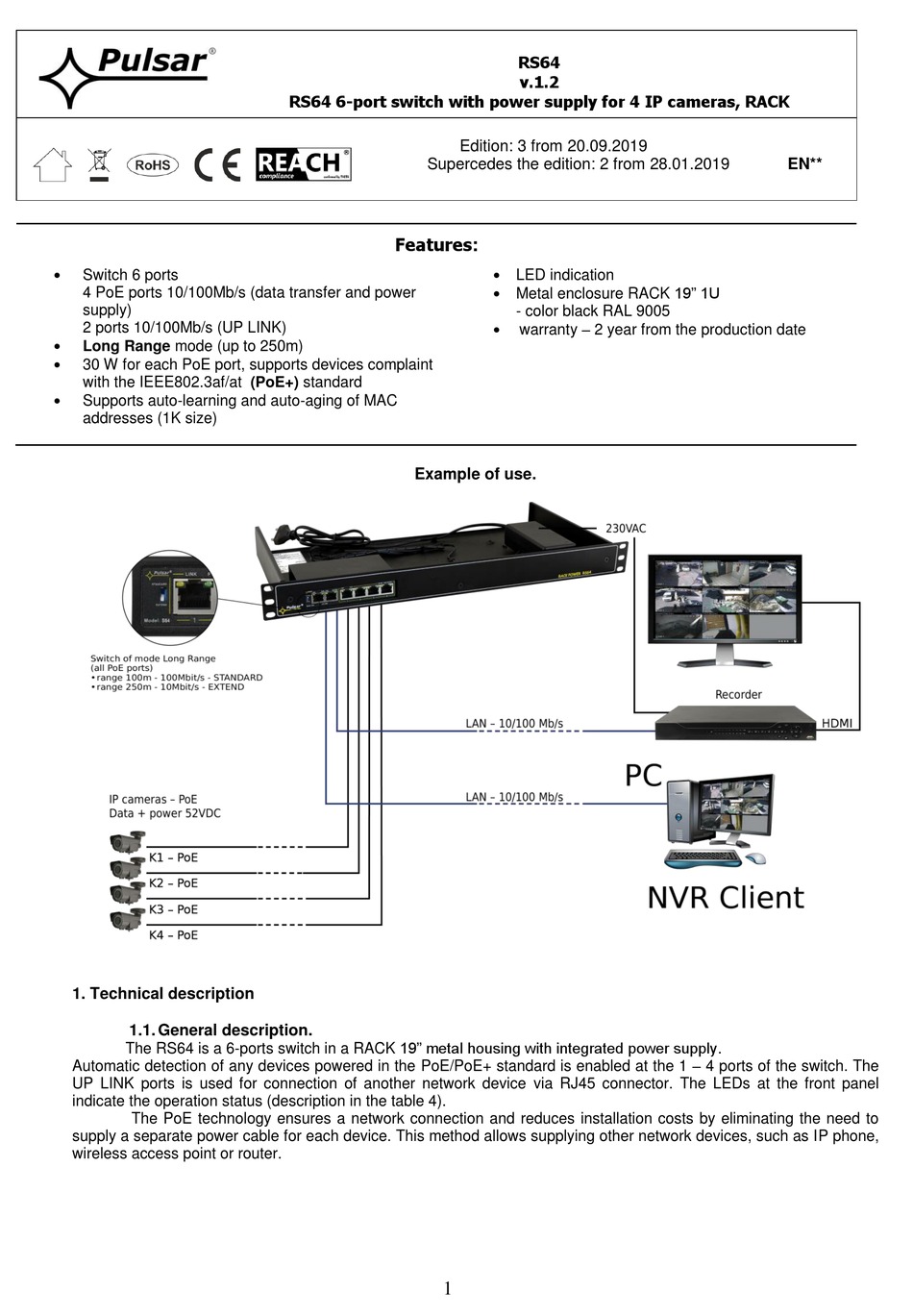

Pulsar RS64 Manual


Switch 6 ports
4 PoE ports 10/100Mb/s (data transfer and power
supply)
2 ports 10/100Mb/s (UP LINK)

Long Range mode (up to 250m)

30 W for each PoE port, supports devices complaint
with the IEEE802.3af/at (PoE+) standard

Supports auto-learning and auto-aging of MAC
addresses (1K size)
1. Technical description
1.1. General description.

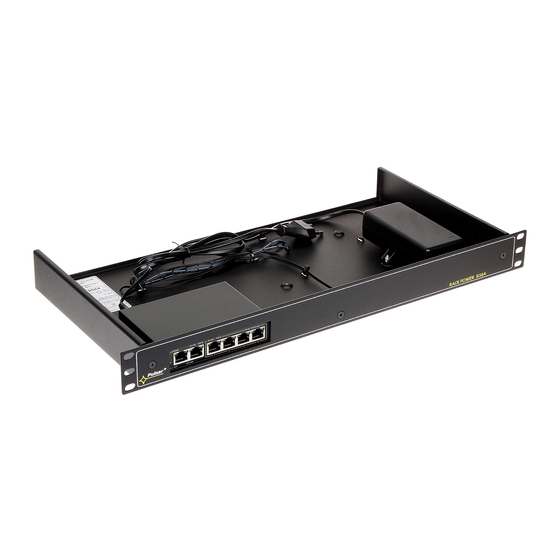

The RS64 is a 6-ports switch in a RACK 19" metal housing with integrated power supply.
Automatic detection of any devices powered in the PoE/PoE+ standard is enabled at the 1 – 4 ports of the switch. The
UP LINK ports is used for connection of another network device via RJ45 connector. The LEDs at the front panel
indicate the operation status (description in the table 4).
The PoE technology ensures a network connection and reduces installation costs by eliminating the need to
supply a separate power cable for each device. This method allows supplying other network devices, such as IP phone,
wireless access point or router.
RS64 6-port switch with power supply for 4 IP cameras, RACK
Supercedes the edition: 2 from 28.01.2019
Features
Example of use.
1
RS64
v.1.2
Edition: 3 from 20.09.2019
:
 LED indication
 Metal enclosure RACK 19" 1U
- color black RAL 9005

warranty – 2 year from the production date
PL
EN**
