Pulsar RSFUPS116R Manual

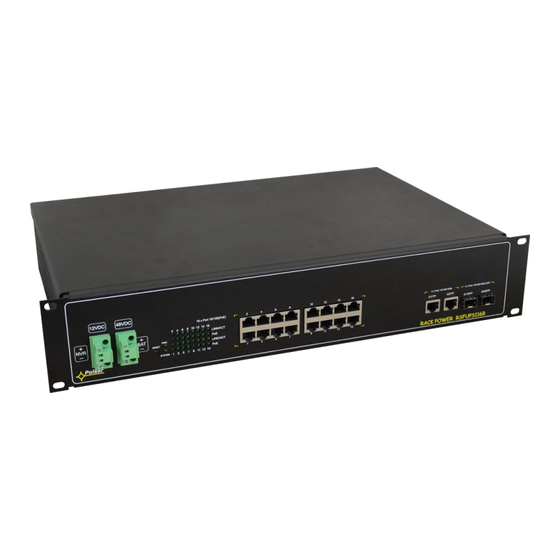

16-port switch with buffer power supply for 16 ip cameras and recorder, rack
Hide thumbs
1
2
3
4
5
6
Table of Contents

Advertisement

Quick Links

Download this manual
Uninterruptible power supply of 16 IP cameras (48VDC)
Uninterruptible power supply of the recorder (12VDC)
16 PoE ports 10/100Mb/s, (1÷16 ports) (data and power
supply)
2 ports 10/100/1000 Mb/s (G1/TP, G2/TP2 ports)
2 ports 10/100/1000Mb/s SFP (G1/SFP, G2/SFP ports)
wide range of mains supply AC: 176÷264V AC
battery charging and maintenance control
excessive discharging (UVP) protection
battery output protection against short circuit and
reverse connection
CONTENTS
1.4 Specifications
3. Indication of the device operation
RSFUPS116R
v1.0
16-port switch with buffer power supply
for 16 IP cameras and recorder, RACK
Edition: 1 from 18.05.2017
Supercedes the edition: -----------
Features
:
battery charge current: 0,5A
(batteries 4x7Ah / 4x17Ah)
15,4W for each PoE port, supports devices
complaint with the IEEE802.3af standard
Supports auto-learning and auto-aging of
MAC addresses (1K size)
LED indication
Metal enclosure RACK 19" 2U
- color: black RAL 9005
warranty - 2 year from the production date

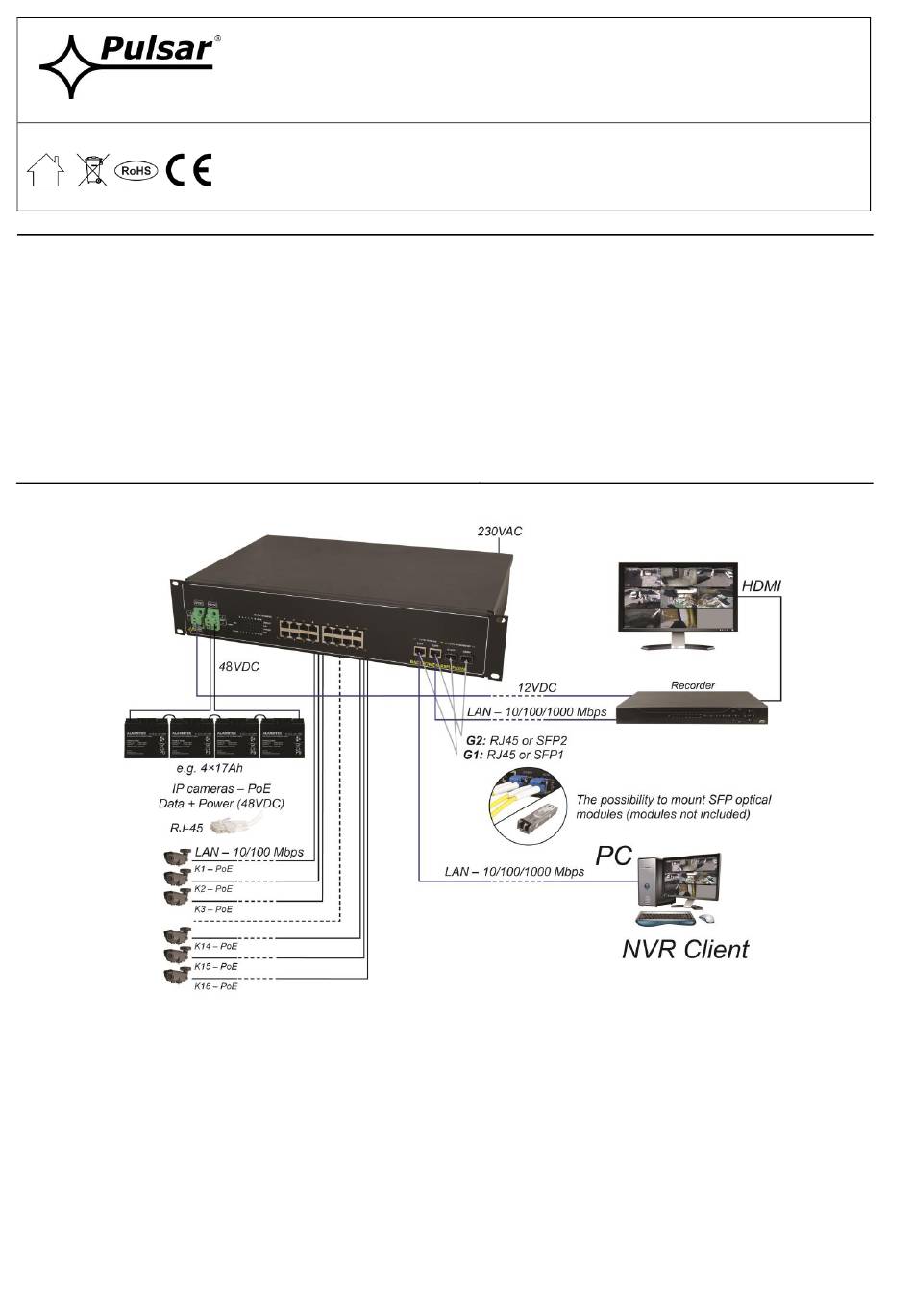

Example of use.
1
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RSFUPS116R and is the answer not in the manual?

Questions and answers

Related Manuals for Pulsar RSFUPS116R

Summary of Contents for Pulsar RSFUPS116R

  • Page 1: Table Of Contents

    RSFUPS116R v1.0 16-port switch with buffer power supply for 16 IP cameras and recorder, RACK Edition: 1 from 18.05.2017 Supercedes the edition: ----------- Features   Uninterruptible power supply of 16 IP cameras (48VDC) battery charge current: 0,5A  (batteries 4x7Ah / 4x17Ah) Uninterruptible power supply of the recorder (12VDC) ...

  • Page 2: Technical Description

    1.1. General description. RSFUPS116R is a 16- port PoE in RACK 19” enclosure, switch designed for uninterrupted supply IP cameras operating in IEEE 802.3af standard (48VDC power supply) of recorder (12V DC power supply). In case of power decay, a battery back-up is activated immediately.
  • Page 3 Fig. 2. The enclosure view. 1.4 Technical parameters - parameters of the switch (tab.2) - electrical parameters (tab.3) - mechanical parameters (tab.4) - operation safety (tab.5) - operating parameters (tab.6) Table 2. Parameters of the switch 16 x PoE (10/100Mb/s) (RJ-45) 2 x UPLINK (10/100/1000Mb/s) (RJ-45) Ports 2 x UPLINK (10/100/1000Mb/s) (SFP)

  • Page 4: Installation

    Table 3. Electrical parameters 176÷264V AC Mains supply Current up to 1,5A@230VAC max. Supply power 267W 16 x 0,3A ΣI=3,6A (max.) The output current at the PoE (RJ45) ports Output voltage at the PoE (RJ45) ports 54VDC NVR output – recorder 12VDC / 4A (max.) PSU current consumption 250mA...

  • Page 5: Installation Procedure

    2.2. Installation procedure. 1. Before installation, cut off the voltage in the 230V power-supply circuit. 2. Mount the power supply in a RACK 19" cabinet as shown below: - Mount M6 cage nuts - Secure the enclosure with 4xM6 screws 3.

  • Page 6: Operation And Use

    The power supply unit is adapted for a sealed lead-acid battery (SLA). After the operation period it must not be disposed of but recycled according to the applicable law. Pulsar Siedlec 150, 32-744 Łapczyca, Poland Tel. (+48) 14-610-19-40, Fax. (+48) 14-610-19-50 e-mail: biuro@pulsar.pl, sales@pulsar.pl http:// www.pulsar.pl, www.zasilacze.pl...
