9 10/100 Mb/s ports
8 PoE ports (data transfer and power supply)
15,4W for each PoE port, supports devices complaint
with the IEEE802.3af standard
Supports auto-learning and auto-aging of MAC
addresses (1K size)
LED indication
1. Technical description
1.1. General description.

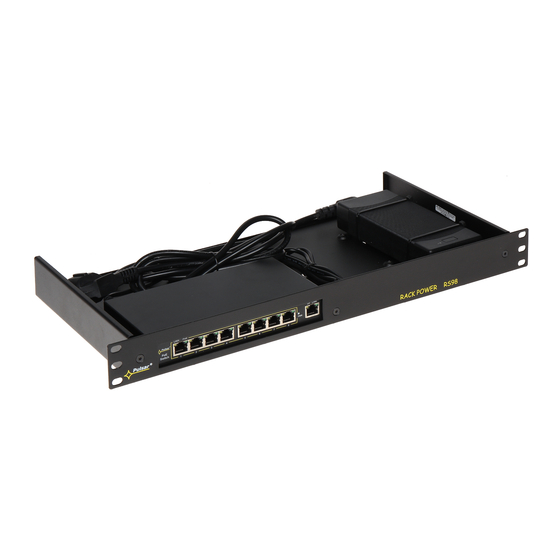

The RS98 is a 9-port switch in a RACK 19" metal housing with integrated power supply.
Automatic detection of any devices powered in the PoE standard is enabled at the 1 – 8 ports of the switch. The UPLINK port is
used for connection of another network device. The LEDs at the front panel indicate the operation status (description in the table
below).
The PoE technology ensures a network connection and reduces installation costs by eliminating the need to supply a separate
power cable for each device. This method allows supplying other network devices, such as IP phone, wireless access point or
router.
RS98 9-port switch for 8 IP cameras with power supply, RACK cabinet
Features

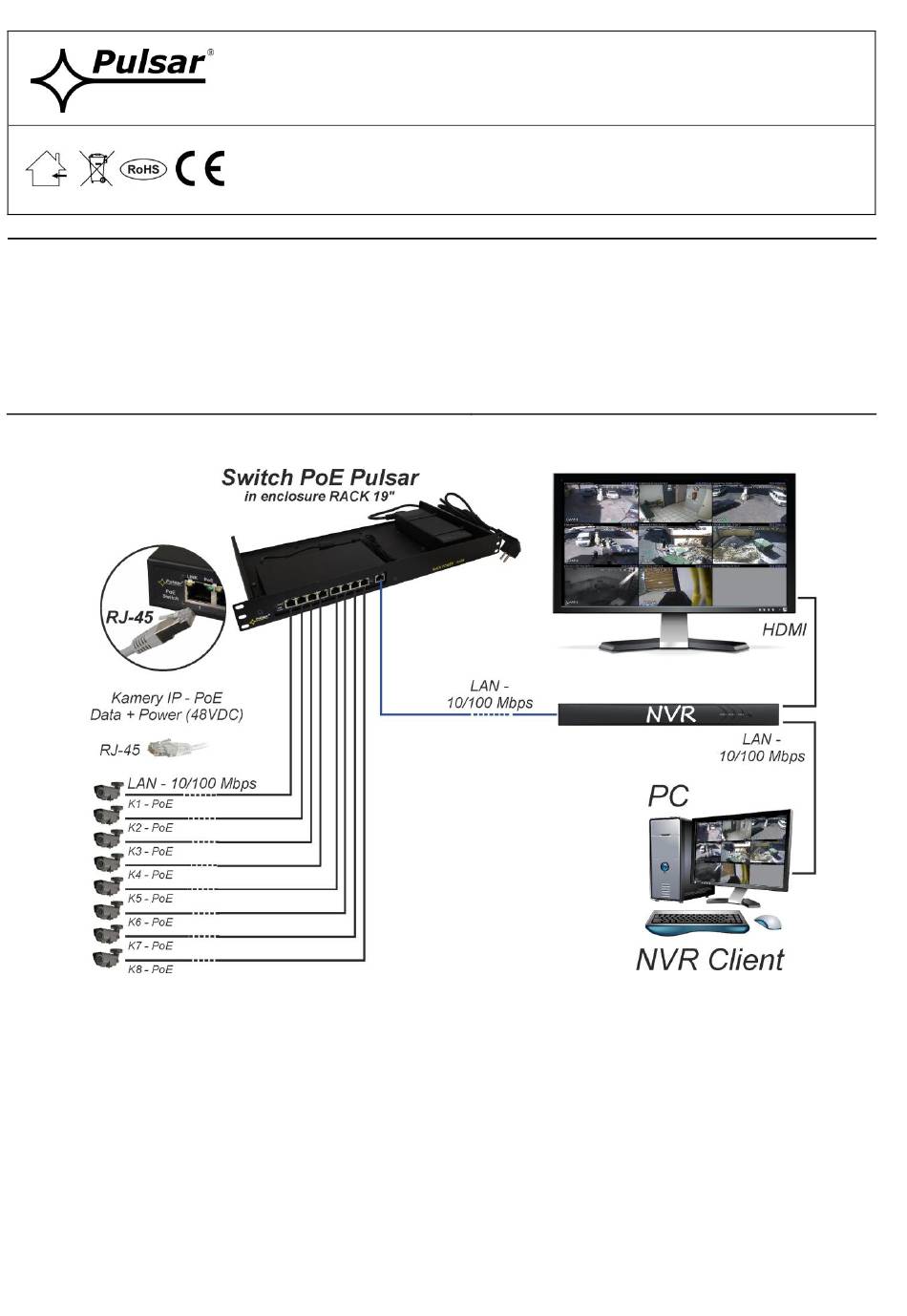

Example of use
RS98
v1.0
Edition: 1 from 01.09.2016
Supercedes the edition: ---------
:
Metal enclosure RACK 19" 1U
- color black RAL 9005
warranty – 2 year from the production date
1
PL
EN**
Advertisement
Related Manuals for Pulsar RS98
Summary of Contents for Pulsar RS98
- Page 1 1.1. General description. The RS98 is a 9-port switch in a RACK 19” metal housing with integrated power supply. Automatic detection of any devices powered in the PoE standard is enabled at the 1 – 8 ports of the switch. The UPLINK port is used for connection of another network device.
- Page 2 1.2 Block diagram. Fig. 1. Block diagram. 1.3. Description of components and connectors 1. ( see Fig .2) Table Element no. Description (Fig. 2) 8 x PoE port (1÷8) 1 x UPLINK port Switch mode power supply for the switch 48VDC/2,5A/120W 230V AC power cord Fig.
- Page 3 1.4. Technical parameters (Table 3.) Table 3. 9 10/100Mb/s ports (8 x PoE + 1 x UPLINK) Ports with connection speed auto-negotiation and MDI/MDIX Auto Cross) PoE power supply IEEE 802.3af (1÷8 ports), 48V DC / 15,4W at each port * Protocols, Standards IEEE802.3, 802.3u, 802.3x CSMA/CD, TCP/IP 10BASE-T: 14880pps/port...
- Page 4 Connection schemes...
- Page 5 3. Operation indication. Table 4. Operation indication OPTICAL INDICATION OF THE SWITCH's POWER SUPPLY GREEN LED LIGHT (Power) OFF – no power supply of the switch Indication of the switch's ON – power supply on, normal operation power supply OPTICAL INDICATION AT THE PoE PORTS (1÷8) DIODA LED ZIELONA (PoE) OFF- no power supply at the RJ45 port (the device is not connected or not compliant with Indication of the PoE power...
-
Page 6: Weee Label
GENERAL WARRANTY CONDITIONS 1. Pulsar (manufacturer) grants a two-year quality warranty for the equipment, starting from the production date. 2. The warranty includes free-of-charge repair or replacement with an appropriate equivalent (selected by the manufacturer) if the malfunction is due to the manufacturer.
