- Page 1 RSUPS98 v.1.0 9-port switch for 8 IP cameras IP with battery backup for cameras, RACK mounted. Edition: 1 from 28.06.2016 Supercedes the edition: ----------...
-
Page 2: Table Of Contents
RACK POWER www.pulsar.pl RSUPS98 Features: acoustic indication of failure Uninterruptible power supply of 8 IP cameras LED optical indication: AC, DC, TEMP, LoB, ALARM (48VDC) the ALARM technical output of collective failure – 9 10/100 Mb/s ports ... -
Page 3: Technical Description

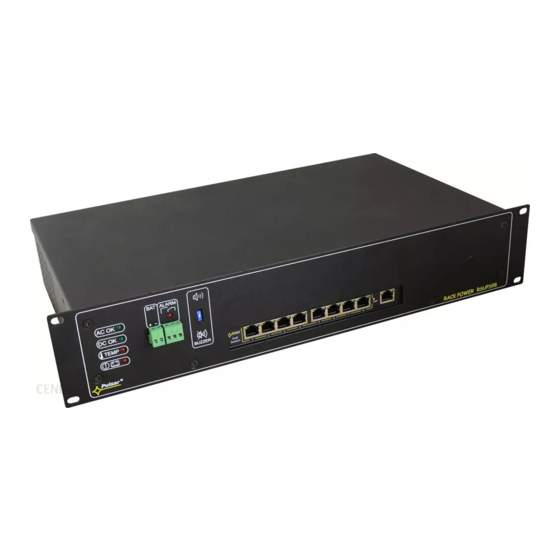

RSUPS98 1. Technical description. 1.1. General description. The RSUPS98 is a complete solution for power supply and battery backup of 8 IP cameras (48VDC power supply) in RACK 19" standard. The main elements of this system include: - 9 port PoE switch... - Page 4 RACK POWER www.pulsar.pl RSUPS98 BUZZER, micro switch, turning ON / OFF of acoustic indication switch in the top position, indication ON switch in the down position, indication OFF PoE port 1÷8 for cameras IP connection (data + power supply) UPLINK port for recorder (data)
-
Page 5: Specifications
RACK POWER www.pulsar.pl RSUPS98 Fig.4. The view of the switch. Table 2. (See Fig. 3). Element no. Description [Fig. 4] LINK - yellow LED - indicating the LAN connection status PoE - green LED indicating voltage at the PoE port PWR –... -
Page 6: Installation
RACK POWER www.pulsar.pl RSUPS98 Mechanical parameters (tab. 5). W=19”, H=2U; 482 x 88 x 265 mm (WxHxD) Enclosure dimensions four-point butt mounting to RACK profiles – the set include 4 M6 screws + cage nuts Fixation Net weight 6,36kg / 6,88kg... -
Page 7: Installation Procedure
RACK POWER www.pulsar.pl RSUPS98 2.2. Installation procedure. 1. Before installation, cut off the voltage in the 230V power-supply circuit. 2. Mount the power supply in a RACK 19" cabinet as shown below: - Mount M6 cage nuts - Secure the enclosure with 4xM6 screws 3. -
Page 8: Optical Indication Of The Switch Operation
RACK POWER www.pulsar.pl RSUPS98 3.2. Optical indication of the switch operation: OPTICAL INDICATION OF THE SWITCH's POWER SUPPLY GREEN LED LIGHT (Power) OFF – no power supply of the switch Indication of the switch's power ON – power supply on, normal operation supply OPTICAL INDICATION OF THE SWITCH's POWER SUPPLY (1÷8) -
Page 9: Operation And Use
RACK POWER www.pulsar.pl RSUPS98 4. Operation and use. 4.1. Overload or short circuit of the PSU output. In case of overload, the output voltage is automatically shut off, and so is the LED indicator. The restoration of the voltage takes place immediately once the failure (overload) is over. - Page 10 GENERAL WARRANTY CONDITIONS 1. Pulsar (manufacturer) grants a two-year quality warranty for the equipment, starting from the production date. 2. The warranty includes free-of-charge repair or replacement with an appropriate equivalent (selected by the manufacturer) if the malfunction is due to the manufacturer. It includes manufacturing or material defects, provided that such defects have been reported within the warranty period (point.1).
