Arjo Miranti Quick Reference Manual-Use

QUICK REFERENCE GUIDE - USE

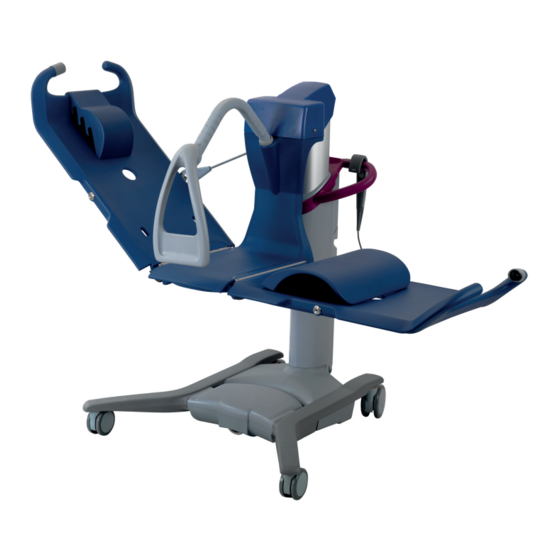

Miranti
Transfer patient from bed
1
Apply the brakes on the bed, if
applicable.
Fold down the bed rail on the
caregiver side.
Undress the patient.
5
Apply brakes
Apply the central brake on the lift bath trolley.
Turn the patient onto their back on the
stretcher.
2
Fasten the hook rope to the side of
the lift bath trolley that will function
as backrest.
6
Lower the patient security grip and side guard.
Put the head rest in place.
Adjust the backrest to a comfortable position for
the patient.
08.CE.04EN_1 • 06/2020 • Page 1/3
3
Attach safety belts, if required.
Put the thigh support cushion in place.
7
4
Turn the patient on their side, facing
away from the lift bath trolley.
Move the lift bath trolley over the bed as
close as possible to the patient.
Lower the lift bath trolley onto the bed.
Release
brakes
Release the central brake on the lift bath trolley.
Raise the lift bath trolley and pull it away from the bed.
