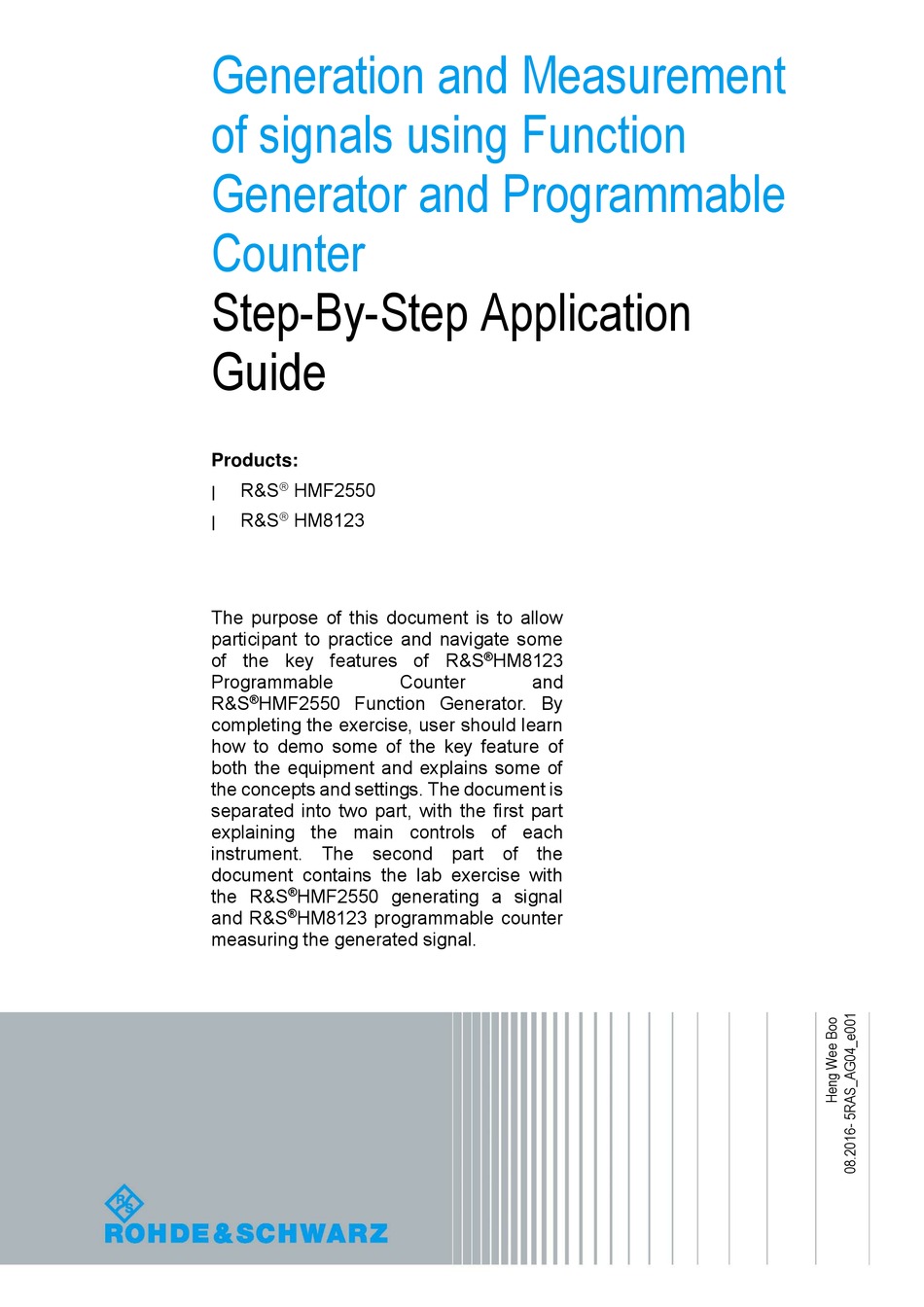

Rohde & Schwarz HMF2550 Application Manual

Generation and Measurement
of signals using Function
Generator and Programmable
Counter
Step-By-Step Application
Guide
Products:

R&S HMF2550
|

R&S HM8123
|
The purpose of this document is to allow
participant to practice and navigate some
of the key features of R&S
Programmable
R&S ® HMF2550 Function Generator. By
completing the exercise, user should learn
how to demo some of the key feature of
both the equipment and explains some of
the concepts and settings. The document is
separated into two part, with the first part
explaining the main controls of each
instrument. The second part of the
document contains the lab exercise with
®
the R&S HMF2550 generating a signal
®
and R&S HM8123 programmable counter
measuring the generated signal.
® HM8123
Counter and
