PiCoolFAN4
Kit Assembly

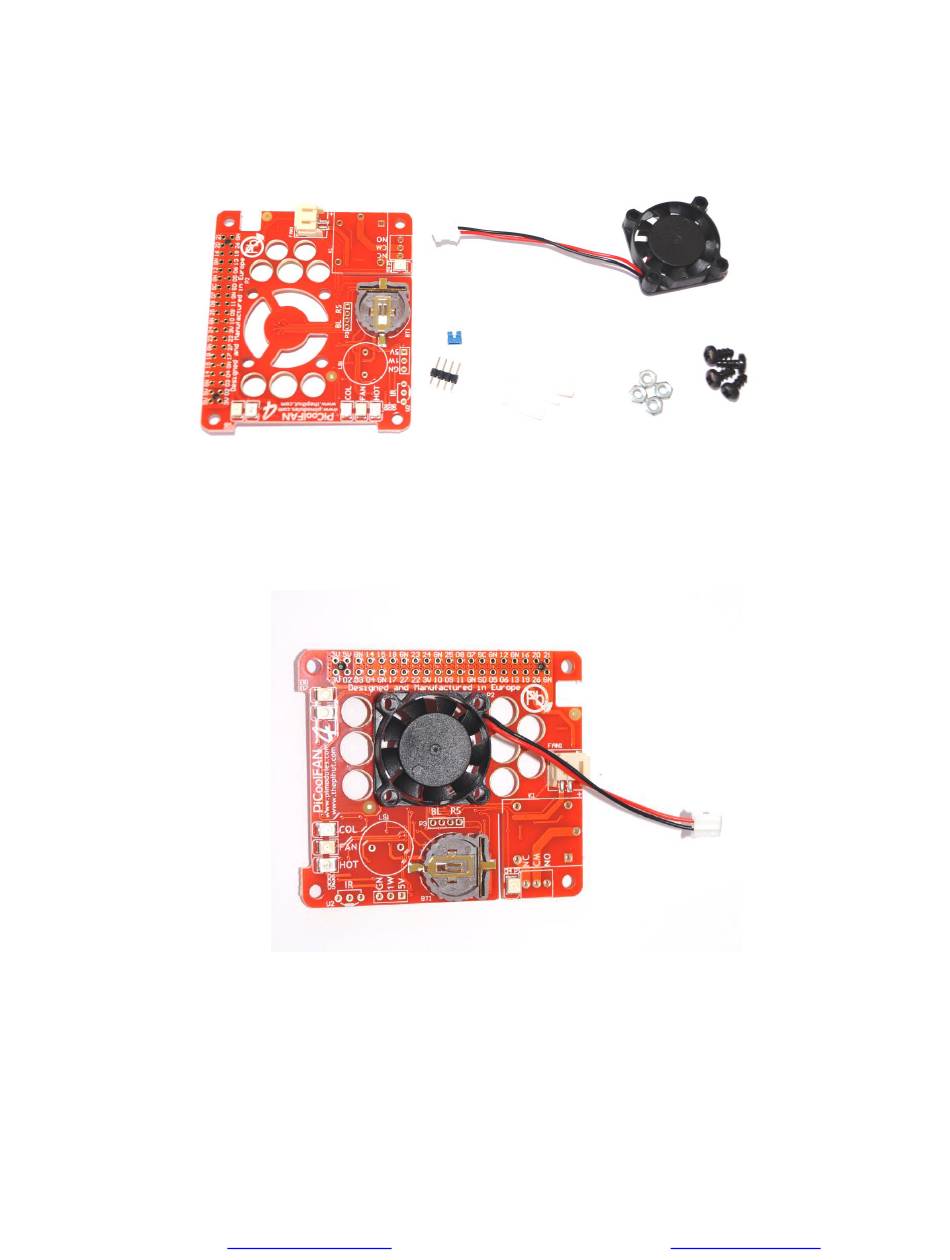

1. Cut the bag on upper side by scissors and remove components from the bag:
2. Place the fan on the top of the PCB with the cable to the right. It is important to place the fan this
way, as there are slots on the PCB matching the fan position. Incorrect placement of the fan will
reduce cooling performance:
Designed by
www.pimodules.com
Firmware Code 0x14
manufactured in co-operation with
Print Date 10.11.2019
www.thepihut.com
