TVB-BB1 TruVision Bullet Camera Back Box
Installation Instructions
Description
TVB-BB1 is a camera back box for the
TruVision fixed lens bullet cameras.

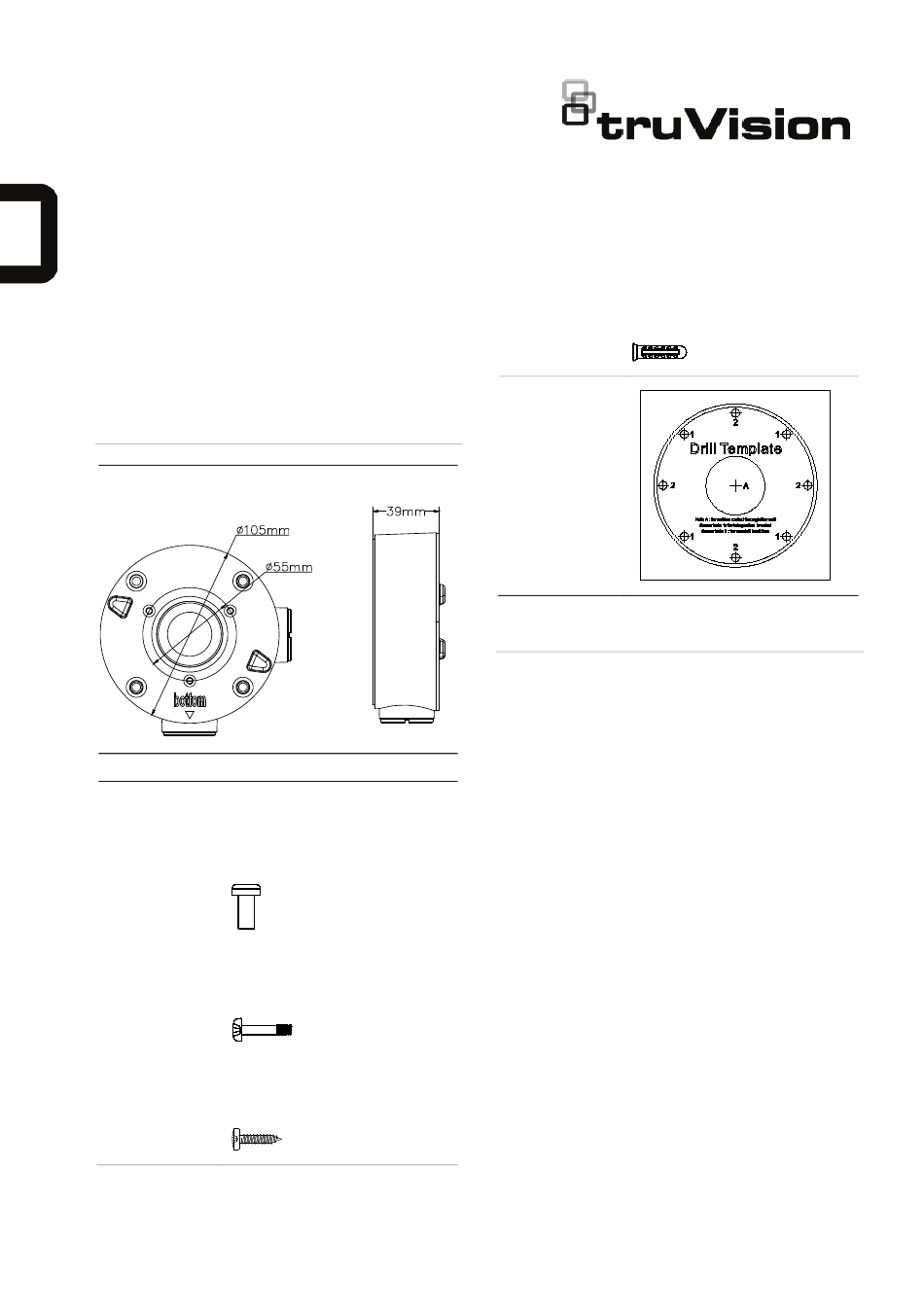

Figure 1: Physical description
Dimensions:
105 × 39 mm (3.15 × 1.17 in.)
Weight:
247 g (0.55 lb.)
Accessories:
Screw A
M4 x 10 mm (3 pcs)
(used to attach the bullet camera
to the back box adapter plate)
Screw B
M4 x 18 mm (4 pcs)
(used to attach the adapter plate
to the back box)
Screw C
4 x 25 mm (4 pcs)
(used to attach the back box to
the mounting surface)
© 2021 Carrier. All rights reserved.
Specifications subject to change without prior notice. TruVision names and logos are a product brand of
Aritech, a part of Carrier.
Drywall anchor
6 x 29 mm (4 pcs)
Drill template
Supported Cameras:
TruVision analog fixed lens bullet cameras:
TVB-4201
TVB-2201
TruVision TVI fixed lens bullet cameras:
TVB-4401, TVB-4403
TVB-2401, TVB-2403
TruVision IP S1 fixed lens bullet cameras:
TVB-3101, TVB-3102, TVB-3103
TVB-1101, TVB-1102, TVB-1103
TruVision IP S3 fixed lens bullet cameras:
TVB-5301, TVB-5302
Installation
Follow all local safety regulations and the
fixed bullet camera installation instructions
while installing the camera and accessories.
P/N 1073203-EN • REV C • ISS 28JUL21

Advertisement

loading
Need help?

Need help?

Do you have a question about the TVB-BB1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TruVision TVB-BB1

  • Page 1 (used to attach the back box to the mounting surface) © 2021 Carrier. All rights reserved. P/N 1073203-EN • REV C • ISS 28JUL21 Specifications subject to change without prior notice. TruVision names and logos are a product brand of Aritech, a part of Carrier.
  • Page 2 To attach a fixed lens bullet camera to a TVB-BB1 back box: Use the drill template to mark the mounting holes. Align the cable access holes in the required orientation. Install the back box to the mounting surface using the four screws (C) and drywall anchors.
