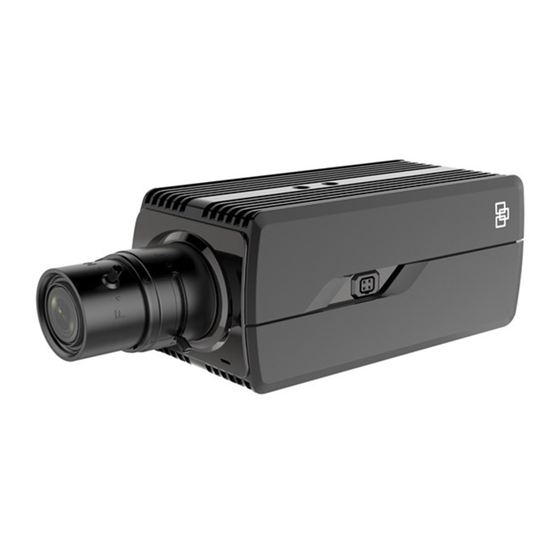

Introduction This is the configuration manual for the following TruVision IP camera models: TVC-5711 (2MP IP box camera) TVC-5712 (4MP IP box camera) TVC-5713 (8MP IP box camera) TVC-5714 (12MP IP box camera) TVB-5711 (2MP IP bullet camera, 2.8 to 12 mm) ...
Contact information and manuals /tools /firmware For contact information and to download the latest manuals, tools, and firmware, go to the web site of your region: firesecurityproducts.com EMEA: Manuals are available in several languages. Australia/New Zealand: utcfs.com.au TruVision Series 7 IP Camera Configuration Manual...
This manual explains how to configure the camera over the network with a web browser. TruVision IP cameras can be configured and fully controlled using Microsoft Internet Explorer (IE) and other browsers. The procedures described in this manual are based on Microsoft Internet Explorer (IE) web browser.
PC from any malicious software being installed. To have complete functionality of the web browser interface with Windows 7, 8 and 10, do the following: • Run the Browser interface as an administrator in your workstation TruVision Series 7 IP Camera Configuration Manual...
There is no default password provided. You can activate a password via a web browser and via TruVision Device Manager. Activation via the web browser: 1. Power on the camera and connect the camera to the network.
Page 12
Activation via TruVision Device Manager: 1. Run the TruVision Device Manager to search for online devices. 2. Select the device status from the device list and select the inactive device.
Click to play back video. Picture Click to search snapshots. Application Click to search, view, download the counting data stored in the local storage or network storage. Click to search for event logs. TruVision Series 7 IP Camera Configuration Manual...
Page 14
On the live view page, you can click to show the PTZ/General control panels and click to hide. See “PTZ and General control panels” on page 107 for further information on using these panels. TruVision Series 7 IP Camera Configuration Manual...
See Figure 2 below for descriptions of the different menu parameters. Figure 2: Local Configuration window Parameters Description Live View Parameters Protocol Specifies the network protocol used. Options include TCP, UDP, MULTICAST and HTTP. TruVision Series 7 IP Camera Configuration Manual...
See Figure 3 on page 13 for descriptions of the configuration folders available. TruVision Series 7 IP Camera Configuration Manual...
Page 17
94 for more information. 8. e-PTZ Defines the PTZ style application in the field of non-PTZ camera. Only available via the fourth stream. See “e-PTZ” on page 95 for more information. TruVision Series 7 IP Camera Configuration Manual...
IP cameras and computers. Connecting network devices to a dedicated NTP time server ensures that they are all synchronized. To define the system time and date: 1. Click Configuration > System > System Settings > Time Settings. TruVision Series 7 IP Camera Configuration Manual...
Page 19
4. Select Enable DST to enable the DST function, and set the start and end dates of the DST period. 5. Click Save to save changes. TruVision Series 7 IP Camera Configuration Manual...
If enabled, the metadata of the corresponding event are available for users to explore the possibility of various data usage. To set up metadata settings: 1. Click Configuration > System > Metadata Settings. TruVision Series 7 IP Camera Configuration Manual...
Open source software available To obtain information about the open source software that applies to the IP camera, select Configuration > System Settings > About. Click the button “View Licenses” to review Open Source Software Licenses. TruVision Series 7 IP Camera Configuration Manual...
IP address. Please use this function carefully. • For cameras that support Wi-Fi, wireless dial, or WLAN function. This restore action does not restore the related settings of mentioned functions to default. TruVision Series 7 IP Camera Configuration Manual...
Only the new features are added with their default settings. You can also upgrade the firmware version using TruVision Device Manager. However, we recommend restoring the camera to factory defaults after upgrading the firmware Note: The firmware upgrade process can take between 1 to 10 minutes.
IP address and enter the address. 5. Click Modify Delete to modify or delete the selected IP address. 6. Click Clear to delete all the IP addresses. 7. Click Save to save the changes. TruVision Series 7 IP Camera Configuration Manual...
A. The IP address will be blocked if the user performs the set times of failed user name/ password attempts (no different times of attempts for the admin/operator/user). B. If the IP address is blocked, you can try to log in to the device again after 30 minutes. TruVision Series 7 IP Camera Configuration Manual...
Playback, Picture, Application (Counting/Counting statistics) and Log are no longer available. Storage features are also no longer available although the menu tree will still display it. “Upload to FTP/Memory Card/NAS” is no longer available from smart event actions. TruVision Series 7 IP Camera Configuration Manual...
Page 27
FTP and Email roll back to their previous status. “Enable Multicast Discovery” are available again in the TCP/IP tab. Multicast tab also recovers. DDNS and PPPOE tabs are no longer not available. TruVision Series 7 IP Camera Configuration Manual...
To manage certificates: 1. Click Configuration > System > Security > Certificate Management. To create self-signed certificate: 1. Click Configuration > System > Security > Certificate Management. TruVision Series 7 IP Camera Configuration Manual...
Page 29
4. Enter the information requested. 5. Click to save. To import certificate: 1. Click Configuration > System > Security > Certificate Management. 2. In the Server/Client Certificate section, click the Import tab. TruVision Series 7 IP Camera Configuration Manual...
Page 30
2. Select the Enable Certificate Expiration Alarm check box. When enabled, notification messages that certificates will soon expire, have expired, or are abnormal will be sent to the saved email box or alarm recipient. TruVision Series 7 IP Camera Configuration Manual...
After the camera boots up, security audit logs are saved to the device flash memory every 30 minutes. Due to limited space for storing in the flash memory, you can save the logs on a log server. Configure the server settings under Advanced Settings. TruVision Series 7 IP Camera Configuration Manual...
Page 32
Major type: There are three types of logs: Operation, Event and Other (reserved). You can also search All. Minor type: Each major type has some minor types. Time: Logs can be searched by start and end recording time. TruVision Series 7 IP Camera Configuration Manual...
Only the administrator can manage users. The administrator can create up to 31 individual users for the cameras listed in this manual. When new users are added to the list, the administrator can modify permissions and password of each user. See Figure 9 below. TruVision Series 7 IP Camera Configuration Manual...
Page 34
The administrator can create up to 31 users. Only the system administrator can create or delete users. To add a user: 1. From the menu toolbar, click Configuration > System > Security > User. 2. Select the button. The user management window appears. TruVision Series 7 IP Camera Configuration Manual...
Page 35
6. Assign permissions to the user. Select the desired options: Basic Permissions Camera Configuration Remote: Parameters Settings Remote: Live View Remote: Log Search/Interrogate Working Remote: PTZ Control Status Remote: Upgrade/Format Remote: Manual Record TruVision Series 7 IP Camera Configuration Manual...
IP address, and operation time. To view online users: Click Configuration > System > Maintenance > Online Users. The list of users currently online is displayed. Click Refresh to update the list. TruVision Series 7 IP Camera Configuration Manual...
Enable Multicast This function is optional. It enables the automatic detection of the Discovery online network camera via private multicast protocol in the LAN. DNS server Specifies the DNS server for your network. TruVision Series 7 IP Camera Configuration Manual...
Page 38
6. Reboot the device for the changes to take effect. DDNS parameters DDNS is a service that maps Internet domain names to IP addresses. It is designed to support dynamic IP addresses, such as those assigned by a DHCP server. TruVision Series 7 IP Camera Configuration Manual...
Page 39
NO-IP web site. Then enter the user name and password that are registered with the No-IP network. 4. Click Save to save changes. 5. Reboot the device for the changes to take effect. TruVision Series 7 IP Camera Configuration Manual...
Page 40
WebSockets Port: The default server port is 7682. It can be changed to any port No. ranges from 1 to 65535. Alarm Host IP: A configurable IP address of a server that will listen and receive alarm messages. TruVision Series 7 IP Camera Configuration Manual...
Page 41
A NAT (Network Address Translation) is used for network connection. Select the port mapping mode: auto or manual. To set up the NAT parameters: 1. Click Configuration > Network > Basic Settings > NAT. TruVision Series 7 IP Camera Configuration Manual...
Page 42
UPnP TM function at the router. Note: If you choose Auto 4. Click Save to save changes. Multicast parameters Multicast is a protocol for discovering devices on networks. Configuring multicast to make the device discoverable. TruVision Series 7 IP Camera Configuration Manual...
Page 43
Note: Only certain camera models support FEC port and FEC ratio. SNMP parameters SNMP is a protocol for managing devices on networks. Enable SNMP to get the camera status and parameter related information. TruVision Series 7 IP Camera Configuration Manual...
Page 44
2. Select the corresponding version of SNMP: v1 or v2c. 3. Configure the SNMP settings. The configuration of the SNMP software should be the same as the settings you configure here. 4. Click Save to save changes. TruVision Series 7 IP Camera Configuration Manual...
Page 45
Subdirectory is selected, you can use the Camera Name or Camera No. as the name of the directory. Upload Picture: To enable uploading the snapshots to the FTP server. 3. Click Save to save changes. TruVision Series 7 IP Camera Configuration Manual...
Page 46
Enter the login user name and password. User Name: The user name to log in to the server where the images are uploaded. Password: Enter the password. Confirm: Confirm the password. TruVision Series 7 IP Camera Configuration Manual...
Page 47
QoS (Quality of Service) can help solve the network delay and network congestion by configuring the priority of data sending. Enable the option in order to solve network delay and network congestion by configuring the priority of data sending. TruVision Series 7 IP Camera Configuration Manual...
Page 48
The switch or router to which the camera is connected must also support the IEEE 802.1X standard. A server must also be configured. Please apply and register a user name and password for 802.1X in the server. TruVision Series 7 IP Camera Configuration Manual...
Page 49
Websockets: To access the camera, enable this function if using Microsoft Internet Explorer. • SDK Service and Enhanced SDK Service: Enable these functions to be able to use the device with a VMS (like TruVision Navigator or a third-party software using the SDK). SDK Service uses the SDK protocol.
Page 50
Browser through the third stream when the network is unstable or inadequate for high quality video transmission. To set up the smooth streaming parameters: 1. Click Configuration > Network > Advanced Settings > Smooth Streaming. TruVision Series 7 IP Camera Configuration Manual...
Page 51
HTTP listening parameters Alarm information can be sent to destination IP or Host via HTTP protocol. To set up the HTTP listening parameters: 1. Click Configuration > Network > Advanced Settings > HTTP. TruVision Series 7 IP Camera Configuration Manual...
You can adjust the video and audio recording parameters to obtain the snapshot quality and file size best suited to your needs. Figure 10 below list the video and audio recording options you can configure for the camera. TruVision Series 7 IP Camera Configuration Manual...
Page 53
The frame rate is the number of video frames that are shown or sent per second. Note: The maximum frame rate depends on the camera model and selected resolution. Please check the camera specifications in its datasheet. Video Encoding: Specifies the video encoder used. TruVision Series 7 IP Camera Configuration Manual...
Page 54
Specify a target area on the live video, and then the specified video area can be Cropping displayed via the third stream in certain resolution, providing more details of the target area if needed. TruVision Series 7 IP Camera Configuration Manual...
Page 55
Save to save changes. The new streams added here can be accessed from the camera live view web page. To configure audio settings: Click Configuration > Video/Audio > Audio. Enter the required settings. TruVision Series 7 IP Camera Configuration Manual...
Page 56
Region No.: Select the desired region. ROI Level: Choose the image quality enhancing level. The larger the value selected, the better the image quality. Region Name: Set the desired region name. TruVision Series 7 IP Camera Configuration Manual...
When Dual-VCA mode is enabled, the camera sends video analytics results (metadata) to an NVR or other platforms to generate a VCA alarm. For example, with a TruVision NVR (please check our website for the latest NVR models supporting this feature), you can draw a virtual line in the NVR playback window, and search the objects or people crossing this virtual line.
Page 58
Auto: The camera automatically detects which mode to use. Schedule: The camera switches between day and night modes according to the configured time period. Triggered by Alarm Input: The camera switches to day or night mode after an alarm is triggered. TruVision Series 7 IP Camera Configuration Manual...
Page 59
Select Normal Mode, Advanced Mode, or OFF. Default is Normal. Noise Reduction Only available when DNR is set to Normal Mode. Set the level of noise Level reduction in the Normal Mode. Higher value has a stronger noise reduction. Default is 50. TruVision Series 7 IP Camera Configuration Manual...
In addition to the camera name, the camera also displays the system date and time on screen. You can also define how the text appears on screen. To position the date/time and name on screen: 1. Click Configuration > Image > Settings. TruVision Series 7 IP Camera Configuration Manual...
Page 61
10. Select the desired alignment (Custom, Align Left or Align Right). 11. Click Save to save changes. Note: If the display mode sets as transparent, the text varies according the background. With some backgrounds, the text may be not easily readable. TruVision Series 7 IP Camera Configuration Manual...
4. Click and drag the mouse in the live video window to draw the mask area. Note: You can draw up to four areas on the same image. 5. Release the mouse to generate a mask area TruVision Series 7 IP Camera Configuration Manual...
D/N schedule, define the scenes under the Image settings menu (see “Image” on page 53 for further information). You can link up to four lighting scenes to the scheduled D/N. TruVision Series 7 IP Camera Configuration Manual...
You can also enable dynamic analysis for motion. When there is motion, the area will be highlighted as green. TruVision Series 7 IP Camera Configuration Manual...
Page 65
It allows you to set the sensitivity level of the motion detection area that the object must occupy, select day or night mode, and set up eight differently configured defined areas. TruVision Series 7 IP Camera Configuration Manual...
Page 66
If you want to send the event snapshot together with the email, check the Attached Snapshot option. Notify Alarm Recipient Send an exception or alarm signal to remote management software when an event occurs. TruVision Series 7 IP Camera Configuration Manual...
Page 67
Note: If you do not want the detected object to be marked with the green frame, select Disable from Configuration > Local > Live View Parameters > Rules. 3. Select Advanced mode from the Configuration drop-down list. TruVision Series 7 IP Camera Configuration Manual...
Page 68
10. Repeat steps 7 to 9 for each area to be defined. • Set up the arming schedule: 11. Under Arming Schedule, click the day you want to schedule. The Time pop-box appears. Enter the desired start and end times to detect motion. TruVision Series 7 IP Camera Configuration Manual...
Page 69
If you want to send the event snapshot together with the email, select the Attached Snapshot option. Notify Alarm Recipient Send an exception or alarm signal to remote management software when an event occurs. TruVision Series 7 IP Camera Configuration Manual...
You can configure the camera to trigger an alarm when the lens is covered and to take an alarm response action. To set up tamper-proof alarms: 1. Click Configuration > Event > Basic Event > Video Tampering. TruVision Series 7 IP Camera Configuration Manual...
Page 71
Trigger external alarm outputs when an event occurs. Check “Select All” or each individual alarm output. Note: This option is only supported by cameras that support alarm output. 6. Click Save to save changes. TruVision Series 7 IP Camera Configuration Manual...
4. Set the arming schedule for the alarm input. See “To set up motion detection” on page 62 for more information. TruVision Series 7 IP Camera Configuration Manual...
> Exception. 2. Under Exception Type, select an exception type from the drop-down list. 3. Specify the actions when an event occurs. Select one or more response actions when an exception alarm is triggered. TruVision Series 7 IP Camera Configuration Manual...
To set up audio exception detection: 1. Click Configuration > Event > Smart Event > Audio Exception Detection. 2. Select the Audio Loss Exception check box to enable the audio loss detection function. TruVision Series 7 IP Camera Configuration Manual...
Page 75
If you want to send the event snapshot together with the email, select the Attached Snapshot option. Notify Alarm Recipient Send an exception or alarm signal to the remote management software when an event occurs. TruVision Series 7 IP Camera Configuration Manual...
A high sensitivity level means that there cannot be a large variance between the reference and current image. Figure 15: Defocus detection window TruVision Series 7 IP Camera Configuration Manual...
3. Configure the sensitivity ranging from 1 to 100, the higher the sensitivity, the easier the change of scene can trigger the alarm. 4. Click the Arming Schedule tab to set the arming schedule for the alarm input. TruVision Series 7 IP Camera Configuration Manual...
The camera has only one channel. 6. Click Save to save changes. Face detection This function can detect faces that appear in the surveillance scene. It can be set up to trigger a series of alarm actions. TruVision Series 7 IP Camera Configuration Manual...
Page 79
5. Set the arming schedule for the alarm input. See “To set up motion detection” on page 62 for more information. 6. Specify the linkage method when an event occurs. Select one or more response methods for the system when an intrusion detection alarm is triggered. TruVision Series 7 IP Camera Configuration Manual...
If someone enters the area, a set of alarm actions can be triggered. To set up intrusion detection: 1. Click Configuration > Event > Smart Event > Intrusion Detection. TruVision Series 7 IP Camera Configuration Manual...
Page 81
5. Set the arming schedule for the alarm input. See “To set up motion detection” on page 62 for more information. 6. Specify the actions when an event occurs. Select one or more response actions when an intrusion detection alarm is triggered. TruVision Series 7 IP Camera Configuration Manual...
Page 82
Bidirectional is crossing the line from both directions. A series of actions can be triggered if an object-person is detected crossing the line. To set up cross line detection: 1. Click Configuration > Event > Smart Event > Cross Line. TruVision Series 7 IP Camera Configuration Manual...
Page 83
7. Set the arming schedule for the alarm input. See “To set up motion detection” on page 62 for more information. 8. Specify the linkage method when an event occurs. Select one or more response methods for the system when a line cross detection alarm is triggered. TruVision Series 7 IP Camera Configuration Manual...
Page 84
It can be set up to trigger a series of alarm actions. To set up the region entrance detection: 1. Click Configuration > Event > Smart Event > Region Entrance Detection. TruVision Series 7 IP Camera Configuration Manual...
Page 85
8. Drag the slider to set the sensitivity value. Sensitivity: Range [1-100]. Sensitivity stands for the percentage of the body/object part of an acceptable target that enters the pre-defined region. Sensitivity = 100 – S1/ST*100 TruVision Series 7 IP Camera Configuration Manual...
Page 86
2. Select the Enable check box to enable the function. 3. Select Region from the drop-down list to set up. 4. Click Area Settings and click Draw Area button to start the drawing area. TruVision Series 7 IP Camera Configuration Manual...
Page 87
Please note that this feature is not able to properly detect unattended objects in complex and low contrast environments. To set up unattended baggage detection: 1. Click Configuration > Event > Smart Event > Unattended Baggage Detection. TruVision Series 7 IP Camera Configuration Manual...
Page 88
10s. 9. Drag the slider to set the sensitivity value. Sensitivity: Range [1-100]. Sensitivity stands for the percentage of the body/object part of an acceptable target that enters the pre-defined region. TruVision Series 7 IP Camera Configuration Manual...
Page 89
To set up object removal detection: 1. Click Configuration > Event > Smart Event > Object Removal Detection. 2. Select the Enable check box to enable the function. TruVision Series 7 IP Camera Configuration Manual...
Page 90
The video recordings are saved onto the SD card or NAS in the camera. The camera’s SD card provides a backup in case of network failure. The SD card is not provided with the camera. The selected recording schedule applies to all alarm types. TruVision Series 7 IP Camera Configuration Manual...
Page 91
11:00, and the post-record time is set to 5 seconds, the camera records until 11:00:05. The post-record time can be configured as 5 s, 10 s, 30 s, 1 min, 2 min, 5 min, or 10 min. TruVision Series 7 IP Camera Configuration Manual...
Page 92
Motion | Alarm: Video will be recorded when the external alarm is triggered, or the motion is detected. Besides configuring the recording schedule, you must also configure the settings on the Motion Detection and Alarm Input Settings TruVision Series 7 IP Camera Configuration Manual...
Page 93
FTP if this option is disabled. To set up continuous and event-triggered snapshots: 1. From the menu toolbar, click Configuration > Storage > Schedule Settings > Snapshot > Capture Schedule. Note: Continuous is the only recording type available. TruVision Series 7 IP Camera Configuration Manual...
Page 94
2. Click-and-drag the mouse on the time bar of the desired days to set the capture schedule. 3. Click Advanced to select the stream type. 4. Select the Capture Parameters tab to configure the captured snapshot parameters. 5. In the Timing section, select the parameters for continuous snapshots: TruVision Series 7 IP Camera Configuration Manual...
Page 95
Note: If the overwrite function is enabled, the maximum capacity for both recordings and snapshots is set to zero by default. To format the storage devices: 1. Click Configuration > Storage > Storage Management > Management. TruVision Series 7 IP Camera Configuration Manual...
Page 96
If the verification is successful, the status becomes Encrypted. To set the quota storage for recordings and snapshots: 1. Click Configuration > Storage > Storage Management > Management. TruVision Series 7 IP Camera Configuration Manual...
Page 97
To set up a NAS system: 1. Click Configuration > Storage > Storage Management > NAS. 2. Enter the IP address of the network disk, and the NAS folder path. 3. Click Save to save changes. TruVision Series 7 IP Camera Configuration Manual...
Page 98
Important note: this function cannot distinguish between a moving person and a moving object. For accurate people counting we recommend using TruVision people counting cameras TVS-PC1 and TVS-PC2. To count objects crossing a set line: 1.
Page 99
7. Click Save to save changes. e-PTZ The e-PTZ (electronic pan, tilt and zoom) function is only supported via the fourth stream. To set up e-PTZ: 1. Click Configuration > e-PTZ. TruVision Series 7 IP Camera Configuration Manual...
Page 100
Auto-tracking: The camera can detect and track a moving object in a scene. Click Detection Area to start drawing. Click four points on the live video image to mark the scene area for auto- tracking. TruVision Series 7 IP Camera Configuration Manual...
Page 101
4. Click Save to save the settings. 5. Go to Live View to switch the stream to the fourth stream. Note: Auto-tracking does not allow PTZ control even if the fourth stream is enabled. TruVision Series 7 IP Camera Configuration Manual...
Page 102
Click Device Parameters and set the saving path to save the configuration file. – Or – Click Export to export the recorder’s configuration settings into an external storage device. TruVision Series 7 IP Camera Configuration Manual...
Page 103
5. When the upgrade is finished, the device will reboot automatically. The browser will also be refreshed. 6. In most cases, it is recommended to perform a factory default after upgrading the firmware. TruVision Series 7 IP Camera Configuration Manual...
Page 104
To upgrade the firmware via TruVision Device Manager: 1. In the FW Upgrade window of TruVision Device Manager select a device or hold the Ctrl or Shift key to select multiple devices for simultaneous upgrading. 2. Click the browse to locate the firmware file to use.
Page 105
The image is in JPEG format. Snapshots are saved on the hard drive. Playing back recorded video You can easily search and play back recorded video in the playback interface. TruVision Series 7 IP Camera Configuration Manual...
Page 106
Start/stop video clip during playback. Sections of a recording are saved to a local computer folder. Digital zoom Zoom in and out of the selected camera image. Audio control Modify the audio level. TruVision Series 7 IP Camera Configuration Manual...
Page 107
2. While playing back a recorded file, click to start clipping. Click it again to stop clipping. A video segment is created. 3. Repeat step 2 to create additional segments. The video segments are saved on your computer. TruVision Series 7 IP Camera Configuration Manual...
Page 108
Make sure the capture schedule is configured. Go to Configuration > Storage > Schedule Settings > Snapshot to set the capture schedule. See “Scheduled snapshots” on page 89. To search recorded snapshots: 1. From the menu toolbar, click Picture. TruVision Series 7 IP Camera Configuration Manual...
Page 109
You must configure NAS or insert a SD card in the camera to be able to use the Application functions. You can search, view, and download the counting data stored in local or network storage. Steps: 1. From the menu toolbar, click Application. TruVision Series 7 IP Camera Configuration Manual...
Page 110
All. See Table 2 below for their descriptions. Minor Type: Each major type has some minor types. See Table 2 below for their descriptions. Start Time and End Time: Logs can be searched by start and end recording time. TruVision Series 7 IP Camera Configuration Manual...
Page 111
Figure 20: PTZ control panel Description Directional buttons: Controls the movements and directions of the PTZ. Center button is used to start auto-pan by the PTZ dome camera. Zoom in/out: Adjusts zoom. TruVision Series 7 IP Camera Configuration Manual...
Page 112
2. Use the directional and zoom buttons on the PTZ control panel to move the camera to the desired position. 3. Select a preset number from the preset list. TruVision Series 7 IP Camera Configuration Manual...
Page 113
4. Set the preset number, speed and lingering time at each preset. You can adjust the order of preset by using 5. Click to save preset tour path. Note: Up to 32 preset tour paths can be set. Each path can support up to 16 steps. TruVision Series 7 IP Camera Configuration Manual...
Page 114
Use the General tab to change the display, OSD and video/audio settings without having to go into the Configuration menu. Note that your camera user account must have the permissions to change settings Figure 23: General control panel TruVision Series 7 IP Camera Configuration Manual...
Page 115
53 Display information NAS management, 93 set up, 56 NAT parameters Dual VCA mode, 53 set up, 37 Network protocol setup, 11, 12 Network service parameters Email parameters set up, 45 TruVision Series 7 IP Camera Configuration Manual...
Page 116
101 Region of interest set up, 52 Web browser RS-485 setup, 16 Chrome, Safari, Firefox, 5 overview of the interface, 9 Web browser security level check, 6 SD card capacity, 91 TruVision Series 7 IP Camera Configuration Manual...
