What's In The Box - enphase IQ System Controller 2 Quick Install Manual

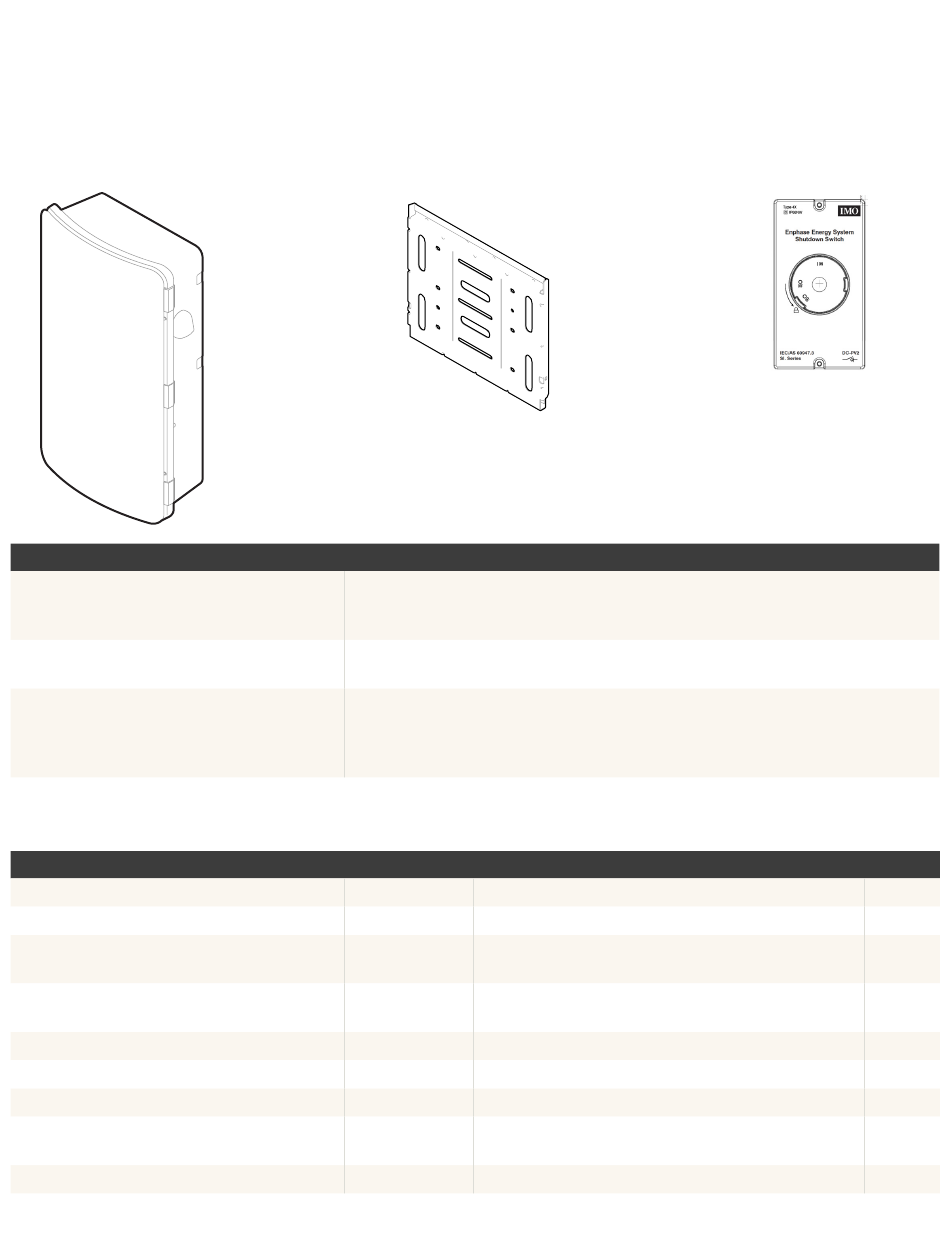

What's in the box

IQ System Controller 2
M O D E L N U M B E R
EP200G101-M240US01
NOTE: No longer sold separately.
EP200G-SC2-RSD-KIT
EP200G-SC2-RSD-BRK-KIT
Accessory kit
I T E M N A M E
Filler Cover Mounting BKT-L 200G Enpower
Filler Cover Mounting BKT-R 200G Enpower
Screw, Pan Hd, Phillips #3, M6 x 25 mm Lg
(5 mm Shank - 20 mm Thread), Machine, 304 SS
Screw, pan Hd, Torx X20, Machine,
#8-32 UNC, 0.63" Lg, A2-70
Lit Kit Label, Enpower 200G
Label, Enpower, CT Field
Label, Enpower, PCS Field
Feed-through header with Cable Assy Header
Enpower 200G R2
NEC Labels for Rapid Shutdown
IQ System Controller 2 Quick Install Guide
Wall-mounting bracket
D E S C R I P T I O N
IQ System Controller 2 with neutral-forming transformer (NFT) and microgrid
interconnect device (MID). Streamlines grid-independent capabilities of PV and
storage installations.
Includes EP200G101-M240US01, System Shutdown Switch (EP200G-NA-02-RSD) with
red, black, orange and purple 12 AWG wires, and breaker for powering IQ Gateway.
Includes EP200G-SC2-RSD-KIT, three Eaton BR220B breakers for either IQ System
Controller 2 or IQ Combiner, two BR240B breakers and one BR260 breaker for
IQ System Controller 2, two X-IQ-NA-HD-125A hold-down kits for IQ Combiner, and
two EP200G-NA-HD-200A hold-down kits for IQ System Controller 2.
I T E M C AT E G O R Y D E S C R I P T I O N
Plastic part Filler Cover Mounting BKT-L 200G
Plastic part Filler Cover Mounting BKT-R 200G
Screw, Pan Hd, Phillips #3, M6 x 25 mm Lg (5 mm
Fastener
Shank - 20 mm Thread), Machine, 304 SS
Screw, pan Hd, Torx X20, Machine, #8-32 UNC, 0.63" Lg,
Fastener
A2-70
Label Lit Kit Label, IQ System Controller 200G
Label
Label
Cable assembly Cable Assy Header IQ System Controller 200G R2
Label Labels required as per NEC for rapid shutdown switch
System Shutdown Switch
Comes pre-wired with 4 x 20 ft.
color-coded wires.
Q U A N T I T Y
2
2
2
1
1
6
2
4
2
7
