Scenario 1

Whole home backup with

IQ System Controller 2

This is the preferred configuration for the back up of the entire main

load panel. This configuration supports up to an 80 A breaker each for

the PV and IQ Battery, and the generator (optional).

The microinverter ranges supported in this configuration are IQ8, IQ6,

IQ7, M215, and M250 Series.

Note: The System Shutdown Switch is not used for IQ6, IQ7, and M Series

systems. Refer to the

System Shutdown wiring section

Additional wiring and components are required when integrating generators.

Refer to the Generator integration page for technical briefs and guides

https:/

/enphase.com/installers/storage/generator.

IQ System Controller 2 Quick Install Guide

for details.

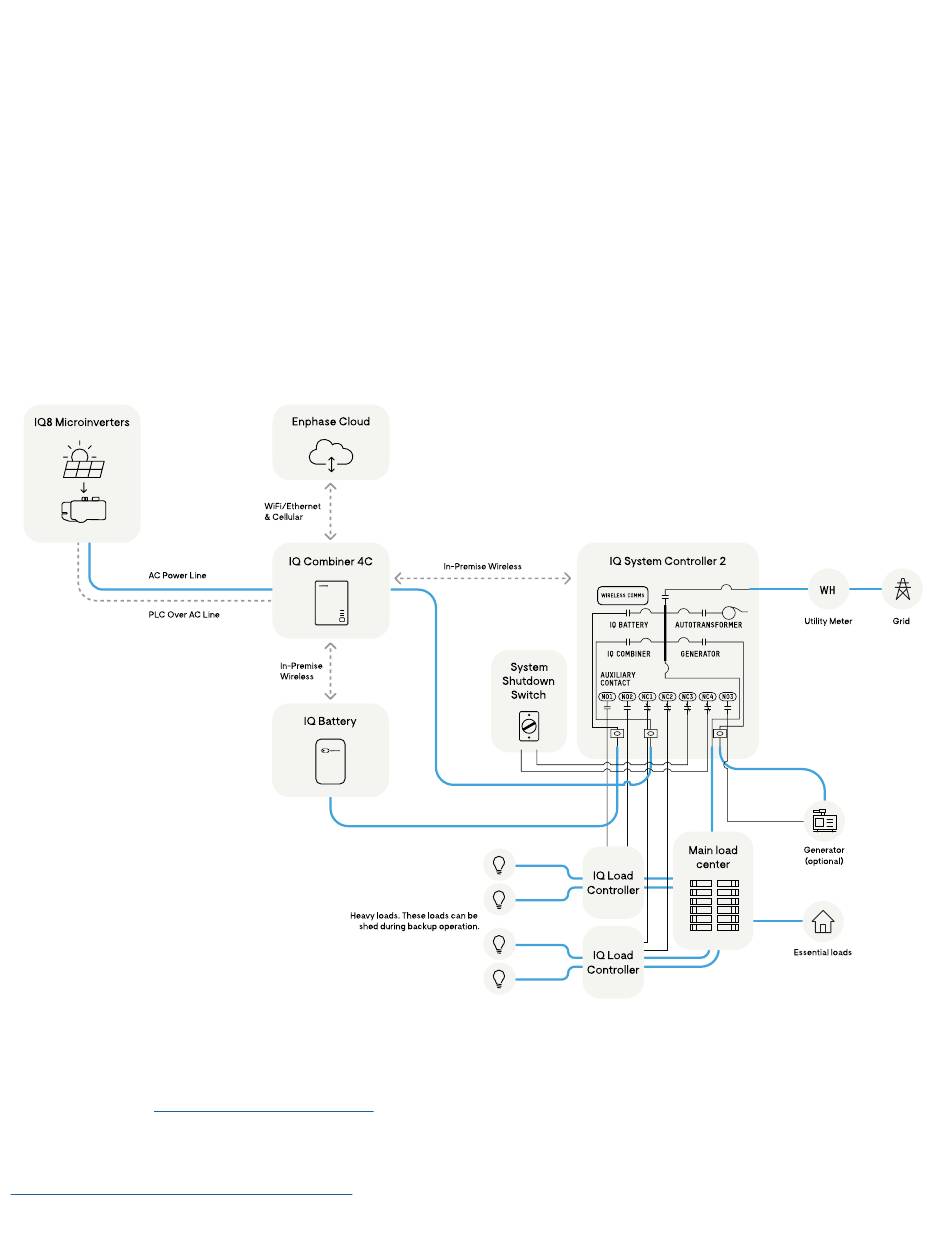

This figure shows the system configuration. For wiring

details, see the "wiring" section.
