Section B - Mounting the breakers
Breakers for IQ8 Systems
with generator
IQ System Controller 2 allows for generator integration with the
Enphase Energy Systems. The breaker on the bottom right slot
of the panel board can be sized and used to integrate the generator.
For generator control and power line schematics, refer to the
generator control section.

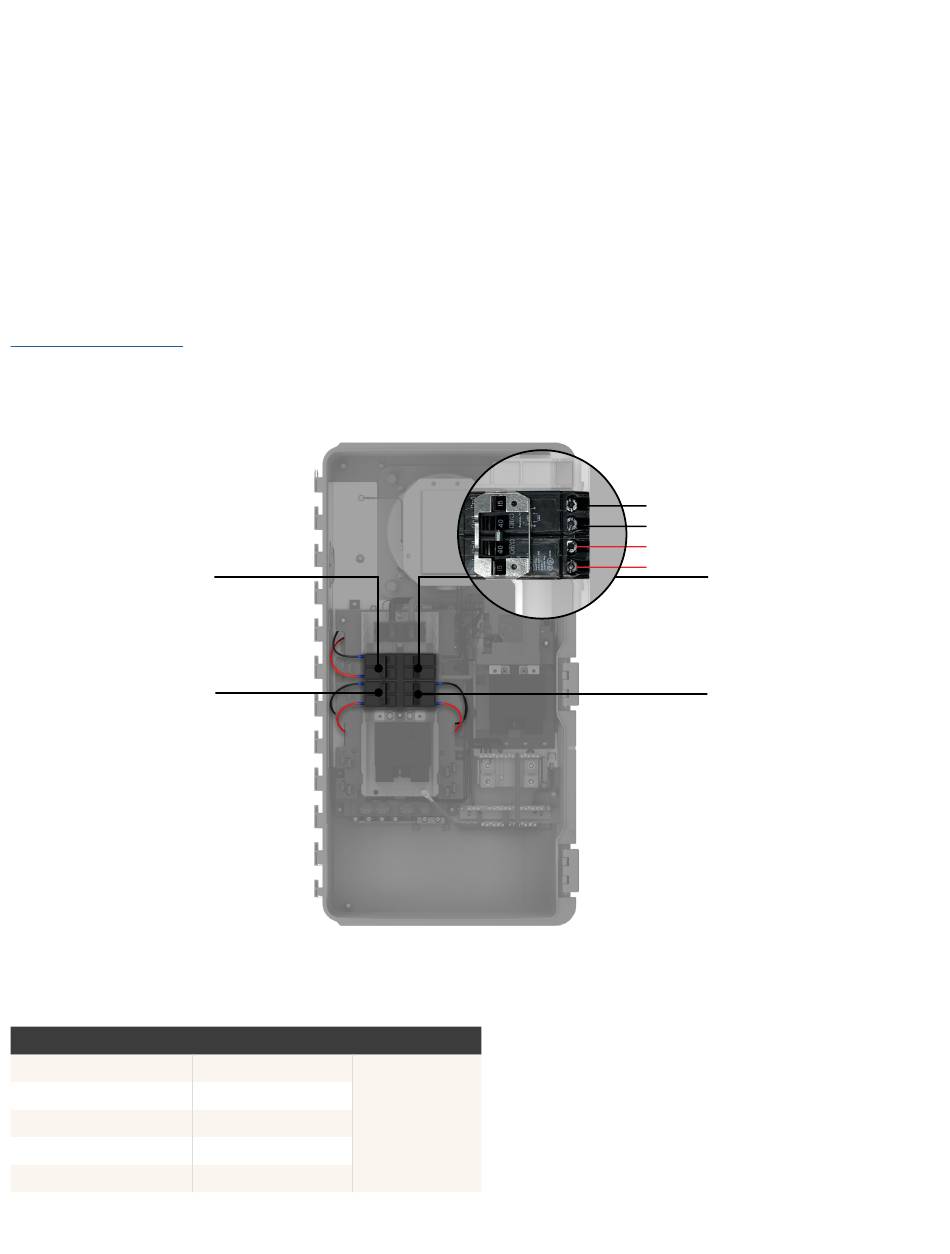

Storage breaker
Use hold-down kit
(EP200G-NA-HD-200A)
with included breakers
(20 A/40 A/60 A) or a
correctly sized breaker
Solar breaker
Use hold-down kit
(EP200G-NA-HD-200A)
with included breakers
(20 A/40 A/60 A) or a
correctly sized breaker
Pre-wired red and
black wires
Connect to storage and
solar breakers
E N P H A S E B R E A K E R PA R T
BRK-20A-2P-240V-B
BRK-40A-2P-240V-B
BRK-60A-2P-240V
BRK-80A-2P-240V
BRK-20A40A-4P-240V
IQ System Controller 2 Quick Install Guide
E ATO N B R E A K E R PA R T TO R Q U E O N W I R E
BR220B
BR240B
27 lb.in
BR260
BR280
BQC220240
L1 - IQ Gateway
L1 - NFT
L2 - NFT
L2 - IQ Gateway
NOTE:
A cable used to connect IQ Gateway power terminals to the
quad breaker must adhere to local electrical codes.
NFT and IQ Gateway breaker
Remove the factory-installed
NFT breaker and install a
Quad breaker (Eaton Part:
BQC220240) Wire as shown
alongside
Generator breaker
Use hold-down kits
(EP200G-NA-HD-200A)
with included breakers or
a correctly sized breaker
Pre-wired red and
black wires
Connect to generator
breaker
