OpenEye MV Series Quick Start Manual

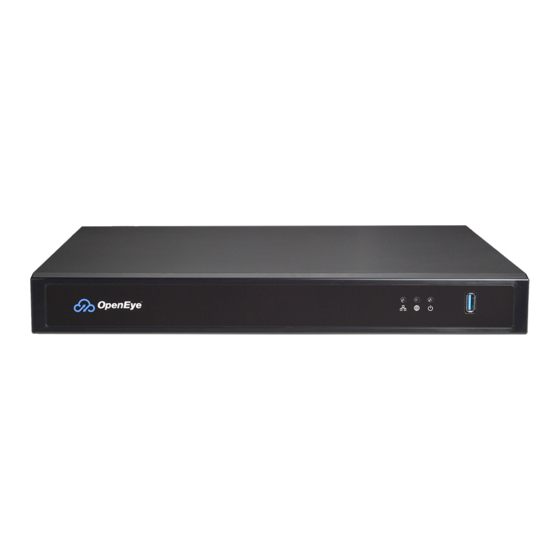

MV-SERIES CLOUD MANAGED APPLIANCE WITH BUILT-IN POE
This guide will assist you with the initial setup of your cloud managed appliance and recording software. This guide
includes hardware setup, software setup, and connecting your appliance to the Web Services Portal.

GETTING STARTED

Connect the network cable intended for remote
1.
connections to the Client Network Port.
Connect the supplied mouse using a USB port.
2.
Connect a monitor using the HDMI
3.
Connect the cameras to PoE ports, or the
4.
external camera network.
Plug the supplied power cord into the recorder
5.
and connect it to a power source.

APEX SOFTWARE CREDENTIALS

Log in to the software using the default credentials:
Username: admin
Password: 1234
Complete the First Time Wizard for basic system
setup.
Power
Input
5
On / Off
Switch
Network Settings
Remote Communication
Port
Client Network Port IP
Address
On-board PoE
QUICK START GUIDE
port.
®
Client
HDMI
®
Network
Monitor
Port
3
1
Reset
HDMIx 2 USB3.0
2
Reset
Button
Mouse
80 (8888 used if 80 is blocked)
DHCP
Ports 1-8 DHCP IP Range: 192.168.50.11 - 192.168.50.100
Ports 9-16 DHCP IP Range: 192.168.50.131 - 192.168.50.220

CONNECTING TO OPENEYE WEB SERVICES

Go to Setup
1.
Services tab.
Click Web Services.
2.
Type your Recorder Name & Registration Code.
3.
NOTE
Reference the OWS Software Manual for
instructions on fi nding your Recorder
Registration Code.
Click Connect.
4.

CAMERA MANAGEMENT

Apex Server software makes it easy to add and
confi gure IP cameras. MV-Series Apex recorders will
automatically detect and add OpenEye and ONVIF
Profi le S Compliant IP cameras set to DHCP connected
to the on-board PoE switch.
NOTE
Third party cameras may need to be
confi gured using a third party
program before being added to the
Apex appliance. Cameras that don't
support ONVIF can be confi gured to
record via RTSP streaming.
8 | 16 Channel
2 4 6
CLIENT 1 3 5
PoE IP Camera
Connection
Static IP Range: 192.168.50.101 - 192.168.50.127
Static IP Range: 192.168.50.221 - 192.168.50.253
Copyright ©2023 OpenEye. All Rights Reserved. Information contained in
this document is subject to change without prior notice. OpenEye does its
best to provide accurate information but cannot be held responsible for
typos or mistakes.
, and navigate to the Remote
14 16
8 10 12
7 9 11 13 15
4
37578AC
