OpenEye MA Series Operation Manual

Cloud managed appliance
Hide thumbs Also See for MA Series:
Table of Contents

Advertisement

Quick Links

Download this manual

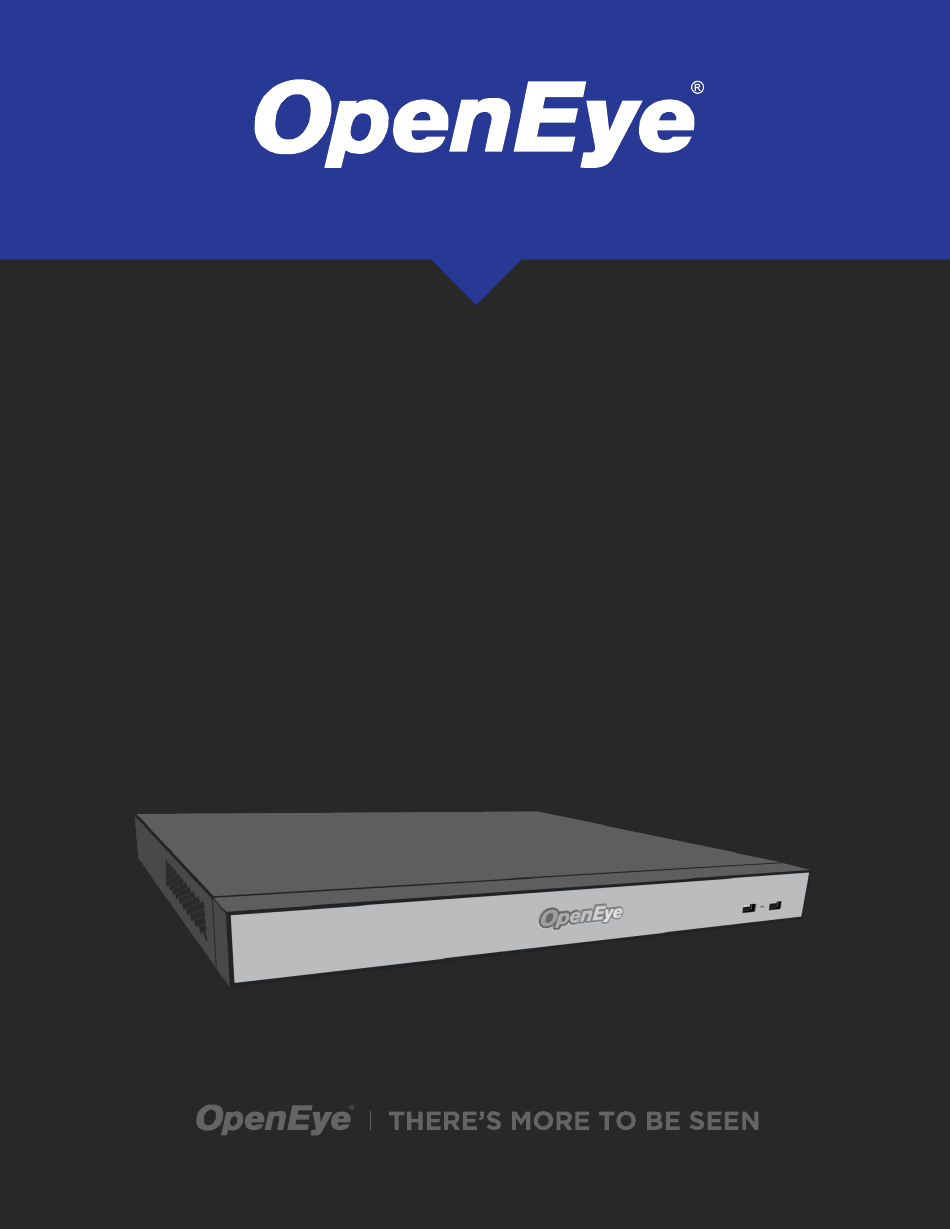

MA – SERIES
CLOUD MANAGED
APPLIANCE
OPERATIONS MANUAL

Advertisement

Table of Contents
loading

Related Manuals for OpenEye MA Series

Summary of Contents for OpenEye MA Series

  • Page 1 MA – SERIES CLOUD MANAGED APPLIANCE OPERATIONS MANUAL...
  • Page 2 The information in this publication is provided “as is” without warranty of any kind. The entire risk arising out of the use of this information remains with recipient. In no event shall OPENEYE be liable for any direct, consequential, incidental, special, punitive, or other damages whatsoever (including...
  • Page 3 9. Object and Liquid Entry Points – Never insert foreign objects into the recorder, other than the media types approved by OpenEye, as they may touch dangerous voltage points or short-out parts that could result in a fire or electrical shock. Never spill liquid of any kind on the product.
  • Page 4 When the unit exhibits a distinct change in performance - this indicates a need for service. 18. Servicing – Do not attempt to service this product unless instructed to by an OpenEye engineer. Opening or removing covers may expose the user to dangerous voltage or other hazards.
  • Page 5 NOTES ON MAINTENANCE This recorder is designed to last for long periods of time. To keep the recorder always operational we recommend regular inspection maintenance (cleaning parts or replacement). For details contact the nearest dealer. NOTES ON MOISTURE CONDENSATION Moisture condensation could damage the recorder. Read the following information carefully. Moisture condensation might occur under the following circumstances: •...
  • Page 6 OpenEye will warrant all otherwise out of warranty replacement parts and repairs for 90 days from the date of OpenEye shipment. The above warranty is the sole warranty made by OpenEye and is in lieu of all other warranties by OpenEye express and implied, including without limitation the warranties of merchantability and fitness for a particular purpose.

  • Page 7: Table Of Contents

    TABLE OF CONTENTS Introduction ............................ 8 Product Description ............................ 8 Features ..............................9 Controls and Connections ........................10 MA-Series Front Panel ........................... 10 MA-Series Rear Panel (8 Analog Inputs) ....................10 MA-Series Rear Panel (16 Analog Inputs) ....................10 Getting Started ..........................11 Box Contents ............................

  • Page 8: Introduction

    MA model recorders come equipped to support both HD analog and IP video up to 24 channels and come preloaded with OpenEye’s powerful Apex recording software. To learn more about the MA model recorder or the rest of OpenEye’s M-Series recorder lineup visit www.openeye.net.

  • Page 9: Features

    FEATURES OpenEye Apex Server MA-Series recorders include the following features: • Fully integrated with OpenEye Web Services (OWS) • Hybrid chipset supports both HD analog and IP video up to 24 channels • Supports HD-TVI/AHD/CVBS analog cameras • H264+ smart codec support •...

  • Page 10: Controls And Connections

    CONTROLS AND CONNECTIONS MA-SERIES FRONT PANEL USB 2.0 MA-SERIES REAR PANEL (8 ANALOG INPUTS) Client NIC Audio In Alarm I / O Video In Line In Power Switch ® HDMI Camera NIC USBI 3.0 Power Input Audio Out MA-SERIES REAR PANEL (16 ANALOG INPUTS) Client NIC Audio In Alarm I / O...

  • Page 11: Getting Started

    GETTING STARTED BOX CONTENTS OpenEye OE-MA Apex recorders come with a power cord, keyboard, mouse, and a recovery USB. A QuickStart guide and other necessary documentation are also included. Identify the following components to make sure everything has been properly included with your new recorder. If any of the following items are missing, contact the dealer to arrange a replacement.

  • Page 12: Keyboard Setup

    KEYBOARD SETUP To attach the keyboard, connect the keyboard to a USB port located on the back of the recorder. MOUSE SETUP To attach the mouse to your recorder, connect the mouse to a USB port located on the back of the machine.

  • Page 13: Monitor Setup

    The cameras are set to a discoverable IP address - 192.168.51.2 - 254 This is easily accomplished using Network Camera Manager: 1. Download NCM from www.openeye.net 2. Connect your PC to the switch with your cameras. 3. Enable ONVIF detection for 3rd party cameras 4.

  • Page 14: Sensor / Relay Card

    4. Click Add. Manual: Cameras not meeting these requirements must be configured manually. 1. Click Setup, and then click Cameras. 2. Click Add Cameras. 3. For cameras not automatically detected, click Add Cameras Manually. 4. Select the ONVIF or the RTSP protocol, and then type the appropriate Title, IP Address, Username, and Password.

  • Page 15: Setting Up The Recorder For The First Time

    SETTING UP THE RECORDER FOR THE FIRST TIME 1. Connect the network cable intended for remote connections to the Client NIC. Note The Camera NIC is intended for use with a dedicated camera network. The Client NIC is intended for use to access the internet and provide remote client connections. 2.

  • Page 16: Operating Your Recorder

    6. Accept the warning message, and then click Continue. 7. Upon successful completion, click Finish, and wait for the recorder to reach the login screen before removing the USB. Call OpenEye Support at 888-542-1103, option #2, for more information regarding the re- Note imaging process.
  • Page 17 All rights reserved. No part of this publication may be reproduced by any means without written permission from OpenEye. The information in this publication is believed to be accurate in all respects. However, OpenEye cannot assume responsibility for any consequences resulting from the use thereof.
