- Page 1 ML / MG – SERIES CLOUD MANAGED APPLIANCE OPERATIONS MANUAL...
- Page 2 The information in this publication is provided “as is” without warranty of any kind. The entire risk arising out of the use of this information remains with recipient. In no event shall OPENEYE be liable for any direct, consequential, incidental, special, punitive, or other damages whatsoever (including...
-
Page 3: Important Safeguards
9. Object and Liquid Entry Points – Never insert foreign objects into the recorder, other than the media types approved by OpenEye, as they may touch dangerous voltage points or short-out parts that could result in a fire or electrical shock. Never spill liquid of any kind on the product. -
Page 4: Notes On Handling
When the unit exhibits a distinct change in performance - this indicates a need for service. 18. Servicing – Do not attempt to service this product unless instructed to by an OpenEye engineer. Opening or removing covers may expose the user to dangerous voltage or other hazards. -
Page 5: Notes On Maintenance
NOTES ON MAINTENANCE This recorder is designed to last for long periods of time. To keep the recorder always operational we recommend regular inspection maintenance (cleaning parts or replacement). For details contact the nearest dealer. NOTES ON MOISTURE CONDENSATION Moisture condensation could damage the recorder. Read the following information carefully. Moisture condensation might occur under the following circumstances: •... -
Page 6: Fcc Statement
EXPLANATION OF GRAPHICAL SYMBOLS The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated "dangerous voltage" within the product enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. -
Page 7: Standard Warranty
OpenEye will warrant all otherwise out of warranty replacement parts and repairs for 90 days from the date of OpenEye shipment. The above warranty is the sole warranty made by OpenEye and is in lieu of all other warranties by OpenEye express and implied, including without limitation the warranties of merchantability and fitness for a particular purpose. -
Page 8: Table Of Contents
TABLE OF CONTENTS Introduction ............................9 Product Description ............................ 9 Features ..............................10 Controls and Connections ........................11 ML / MG-Series Front Panel ........................11 ML-Series Rear Panel (8 / 16 Channel) ....................11 MG-Series REar Panel ........................... 11 Getting Started ..........................12 Box Contents ............................ -
Page 9: Introduction

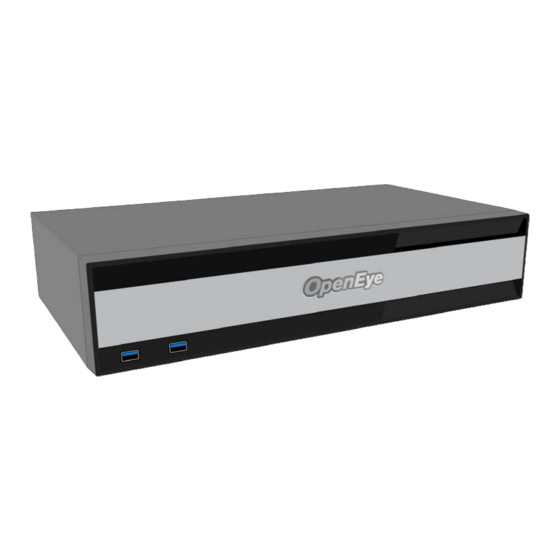

OWS-enabled video surveillance system. Available in 4, 8, or 16 channel models (up to 32 channels MG-series only), the ML-Series and MG-Series recorders can connect with OpenEye or ONVIF cameras. To learn more about the ME model recorder or the rest of OpenEye’s M-Series recorder lineup visit www.openeye.net. 33630AD... -
Page 10: Features
FEATURES OpenEye Apex Server ML-Series and MG-Series recorders include the following features: • Fully integrated with OpenEye Web Services (OWS) • Complete remote operation and administration with Web Connect • Plug-n-Play operation via ONVIF on PoE models • 8 and 16 channel model on-board PoE (ML-model only) •... -
Page 11: Controls And Connections
CONTROLS AND CONNECTIONS ML / MG-SERIES FRONT PANEL USB 3.0 ML-SERIES REAR PANEL (8 / 16 CHANNEL) Power Camera PoE IP Relay Alarm Client On/Off Camera Ports I/O Block Switch Power Supply PoE Switch Keyboard and DVI-I Audio HDMI USB 3.0 Reset Connectivity Mouse USB (2.0) -
Page 12: Getting Started
GETTING STARTED BOX CONTENTS OpenEye Apex Server ML / MG-Series recorders come with a power cord, keyboard, mouse, rack mount installation kit, alarm I/O block, and a recovery USB. A QuickStart guide and other necessary documentation are also included. Identify the following components to make sure everything has been properly included with your new recorder. -
Page 13: Keyboard Setup
KEYBOARD SETUP To attach the keyboard, connect the keyboard to a USB port located on the back of the recorder. MOUSE SETUP To attach the mouse to your recorder, connect the mouse to a USB port located on the back of the machine. -
Page 14: Monitor Setup
MONITOR SETUP These connections are available to connect a monitor: HDMI Output To TV / Digital Display DVI-I Output To TV / Digital Display DVI-I to VGA Output To TV / Digital Display (via adapter) Attach the monitor(s) to the rear of the recorder using the cable supplied by the monitor manufacturer. -
Page 15: Sensor / Relay Card
SENSOR / RELAY CARD Sensor Sensor Relay Relay Relay Relay Ground Sensor Sensor Ground Ground Ground Ground 33630AD... -
Page 16: Setting Up The Recorder For The First Time
SETTING UP THE RECORDER FOR THE FIRST TIME 1. Plug the supplied power cord into the recorder. Do NOT connect the power cord to a power source at this time. 2. Connect the network cable intended for remote connection to the Client NIC. Note The Camera NIC is intended for use with a dedicated camera network. -
Page 17: Operating Your Recorder
It is very important to remove the USB drive after the re-imaging process is complete, otherwise Note the NVR may not boot properly. Note Call OpenEye Support at 888-542-1103, option #2, for more information regarding the re- imaging process. 33630AD... -
Page 18: Specifications
SPECIFICATIONS OE-ML08 OE-ML16 OE-MG RECORDING Max IP Channels Max IPS Per Channel 30IPS (dependent on IP camera settings) Recording Resolutions Up to 4K (dependent on IP camera settings) Recording Rate Up to 250Mbps Maximum Display Resolution 1080p Image Compression H.264 CONNECTIONS Audio Outputs IP Audio support... - Page 19 All rights reserved. No part of this publication may be reproduced by any means without written permission from OpenEye. The information in this publication is believed to be accurate in all respects. However, OpenEye cannot assume responsibility for any consequences resulting from the use thereof.
