Heatilator GLHTL36 Installation Instructions Manual

Models: HEIR36T-IFT, HEIR36H-IFT, HEIR42T-IFT, HEIR42H-IFT
Leave this manual with party responsible for use
and operation.
DANGER
DO NOT TOUCH GLASS
NEVER ALLOW CHILDREN
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and shall be installed for
the protection of children and other at-risk
individuals.
CAUTION! Risk of Cuts or Abrasions. Wear protective
gloves and safety glasses during installation.
NOTICE: Handle refractory panels with care. Refractory
may chip or crack if dropped or impacted.
SPECIAL TOOLS
Screw gun equipped with 1/4 in. socket
1/4 IN. wrench or socket
(1) Tape Measure
GLASS LINER KIT COMPONENTS
(1) Left Glass Refractory Panel
(1) Right Glass Refractory Panel
(1) Rear Glass Refractory Panel
(2) Side White Refractory Spacers
(1) Rear White Refractory Spacer
(2) Finish Trim
(1) Refractory Spacer
REFRACTORY KIT COMPONENTS
(1) Right Base Refractory
(1) Left Rear Base Refractory
(1) Left Front Base Refractory
(1) Center Base Refractory
(1) Top Refractory
Heatilator • GLHTL36, GLHTL42 Glass Refractory Kit Instructions • 2458-933 Rev. C • 4/17
GLHTL36, GLHTL42
Glass Refractory Installation Instructions -
HOT GLASS WILL
CAUSE BURNS.
UNTIL COOLED.
TO TOUCH GLASS.
PREPARATION
It will be necessary to remove the existing refractory panels
and base refractory prior to beginning installation of the new
components. See Figure 1. Once those components are
removed the fi rebox will look similar to Figure 2.
Note: On older models, it may be necessary to remove the
grate in order to remove the rear refractory.
REMOVE EXISTING REFRACTORY REMOVE EXISTING REFRACTORY
(8 PIECES) (8 PIECES)
8 (TOP) 8 (TOP)
1 1
7 (REAR) 7 (REAR)
3 3
5 5

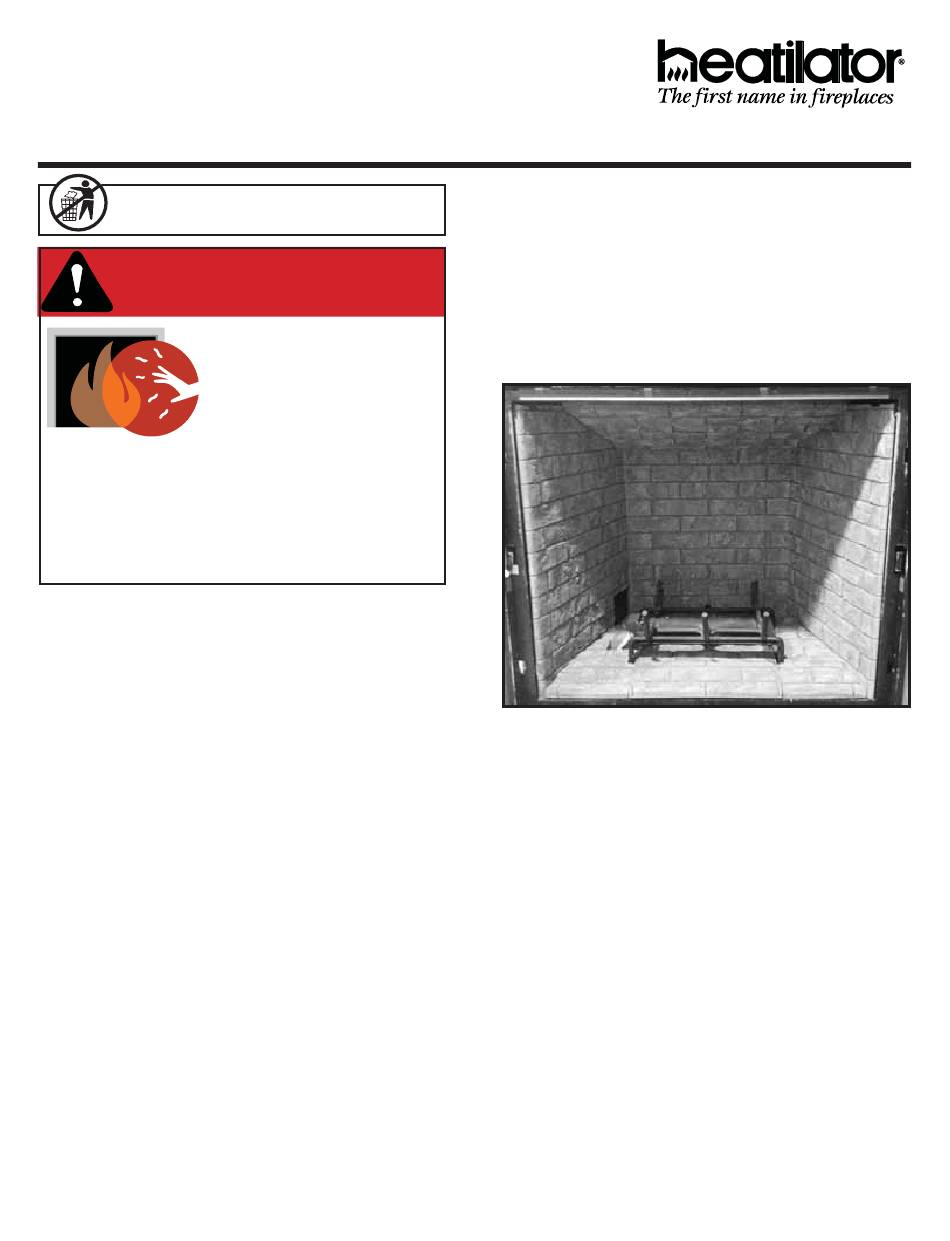

Figure 1. Firebox Including Refractory
2 2
4 4
6 6
1
