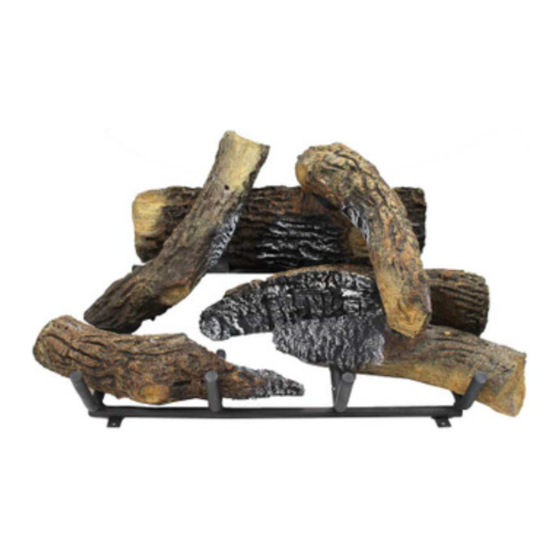

Log Set Assembly: LOGS-4236, LOGS-4842
Models: CNXT4236IT-C/D, CNXT4842IT-C/D, CNXT4236IH-C/D, CNXT4842IH-C/D,
CNXT4236IFTT/H, CNXT4842IFTT/H, CD4236IR-C/D, CD4842IR-C/D
CD4236IFTR, CD4236IFTLR, CD4842IFTR, CD4842IFTLR
CAUTION: Logs are fragile, handle with care.
Log A: SRV2208-702
Log B: SRV2208-703
Log C: SRV2208-704
Log D: SRV2208-073 (4236 models)
SRV2211-073 (4842 models)
Log E: SRV2208-705
Log F: SRV2208-706
1. Base logs B, C and D have been permanently mounted on the grate assembly. Do not attempt to remove or relocate the
logs.
2. Log A placement (SRV2208-702): Install Log A as shown in Figure 2 and Figure 3. Locate log placement bracket
and placement tabs shown in Figure 2. Align holes in bottom of log with alignment tabs. Place log down on log
placement bracket and push back toward the rear of the firebox. See Figure 3.
A
C
Figure 1. Base Logs
LOG PLACEMENT BRACKET
FOR LOG A (SRV2208-702)
ALIGNMENT TABS
Figure 2.
D
B
Heatilator • LOGS-4236, LOGS-4842 • 2208-935 Rev. E • 3/18
LOG PLACEMENT INSTRUCTIONS
Figure 3.
