Heatilator CFL-18NG Log Placement Instructions

LOG PLACEMENT INSTRUCTIONS
CFL-18NG/LP
Models:
CFL-18NG/LP-B

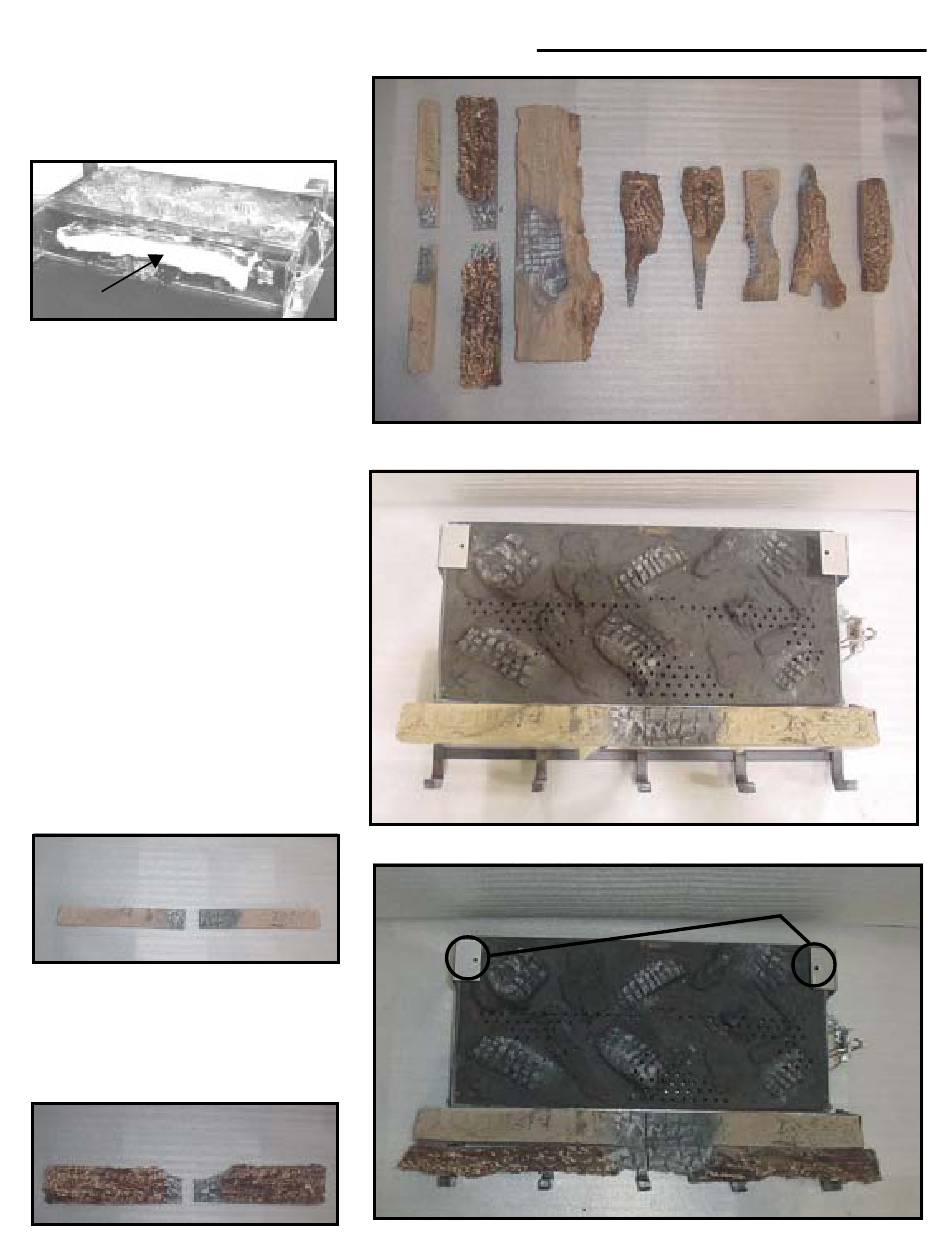

INSULATION
NOTE: An additional piece of INSULATION
is shipped with your log set. If this piece is
missing, DO NOT PROCEED. Call your deal-
er. Following the instructions given below is
very important (Flat spots will guide you
throughout the process). Use the log num-
bers to identify the logs. Check to make sure
the tabs on the side of burner legs are bent
outward. After setting burner, place insula-
tion provided with log set beneath burner as-
sembly and above valve. Make sure valve is
totally covered. WARNING: Failure to do so
will cause the unit to malfunction and create
a potential dangerous situation. Set og grate
by resting it down and sliding it toward burn-
er. Make sure right and left grate bars slide
on outside of burner legs between tabs. Place
"dime size" pieces of mineral wool on the
top of the burner, spaced dimes width apart.
LOG #1 & #2:
(SRV481-766)
Set logs #1 and 2 in front of the burner. Rest
the bottom two notches over the extended
material of the burner legs. Slide it towards
the burner until it comes in contact with the
burner.
1
LOG #3 & #4:
(SRV481-755)
Set logs #3 and 4 between the grate and
logs #1 and 2 with the bark detail towards
the outside. Logs #3 and 4 should be even
with logs #1 and 2 from one side to the other.
Slide grate to hold log in place.
3
1 3
2 4
2
4
5 6 7 8 9 10
1
3
1
2
BRACKETS
(For use to place log #5)
4
481-925C 3/04
