- Page 1 XB-5 HEXX BEAM Hexx Hub DXE-XB-5-HUB US Patent No. D605,184 DXE-XB-5-HUB-INS Revision 0 © DX Engineering 2023 1200 Southeast Ave. - Tallmadge, OH 44278 Phone: (800) 777-0703 ∙ Tech Support and International: (330) 572-3200 E-mail: DXEngineering@DXEngineering.com...

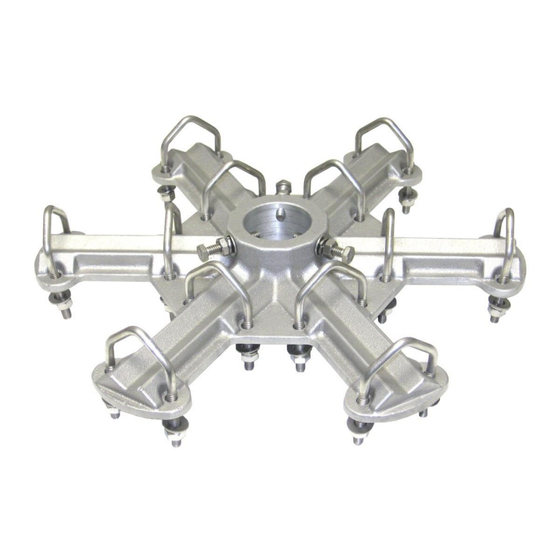

- Page 2 Introduction The patented (US Patent No. D605,184) DX Engineering HEXX Hub provides a strong, solid base for the entire XB-5 Hexx Beam antenna system. Made from cast aluminum and machined to perfection, the XB-5 Hexx Beam Hub is far superior to available home-made base plate designs.
- Page 3 Assembly Instructions Anti-Seize must be used on all stainless steel hardware to prevent galling (seizing) of stainless steel hardware. Insert the twelve Stainless Steel V-Bolts over the incorporated V-Saddles as shown in Figure 1. Install a flat washer, a split washer and a 1/4-20 hex nut on each V-Bolt leg, install the nuts loose. The V-Bolts will be tightened in place when the fiberglass spreaders are installed.
- Page 4 All products manufactured by DX Engineering are warranted to be free from defects in material and workmanship for a period of one (1) year from date of shipment. DX Engineering’s sole obligation under these warranties shall be to issue credit, repair or replace any item or part thereof which is proved to be other than as warranted; no allowance shall be made for any labor charges of Buyer for replacement of parts, adjustment or repairs, or any other work, unless such charges are authorized in advance by DX Engineering.
