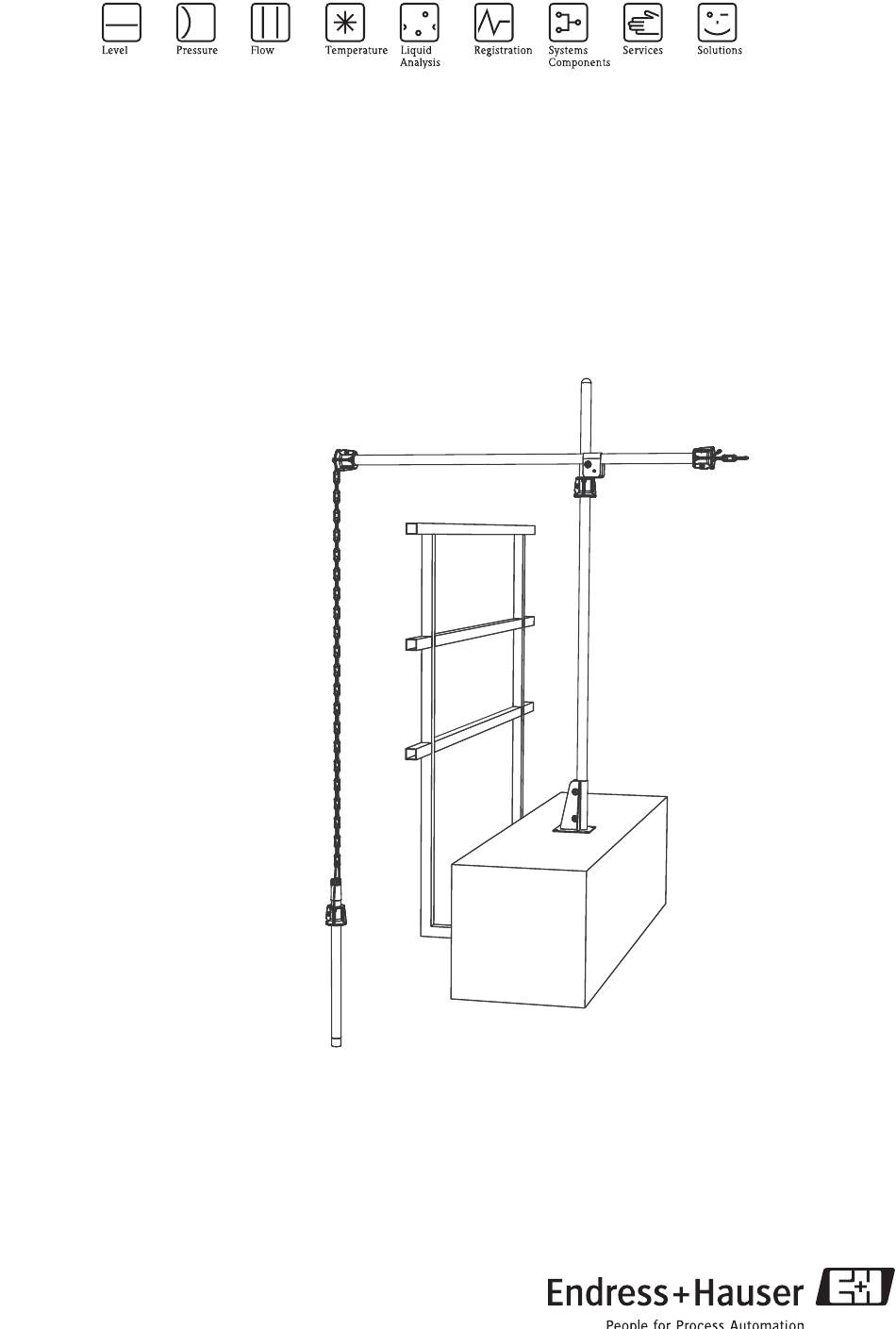

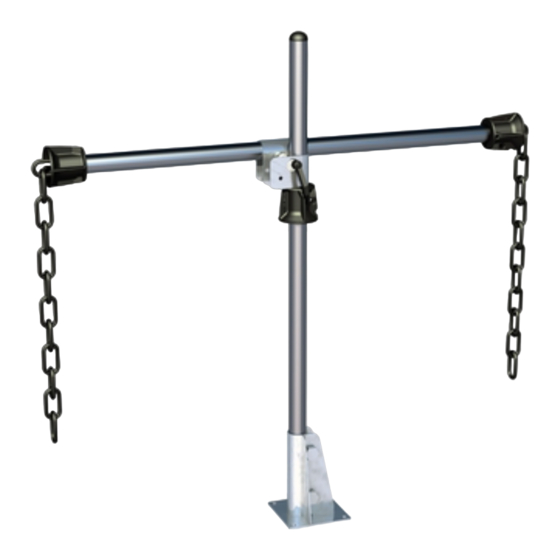

- Page 1 Operating Instructions Flexdip CYH112 Holder for water and wastewater assemblies BA430C/07/en/04.09 71092595...
- Page 2 Endress+Hauser...
-
Page 3: Table Of Contents
Flexdip CYH112 Table of contents Safety instructions ....4 Designated use ......4 Installation, commissioning and operation . -
Page 4: Safety Instructions
Safety instructions Flexdip CYH112 Safety instructions Designated use CYH112 is designed as a modular retainer system for sensors and assemblies in open basins, channels and tanks. Any other use than the one described here compromises the safety of persons and the entire measuring system and is not permitted. -
Page 5: Identification
Flexdip CYH112 Identification Identification Nameplate You can identify the type of holder from the order code on the nameplate. Please compare this information to that of your order. Made in Germany, 70839 Gerlingen Flexdip CYH112 order code: CYH112-1009/1 CYH112-AB40B30E2AG serial no.: N4 a0011291 Fig. -
Page 6: Product Structure
Identification Flexdip CYH112 2.1.1 Product structure Approvals Mounting of main pipe Mounting to floor Mounting to wall (1x) Mounting to wall (2x) Mounting to rail (1x) Mounting to rail (2x) Main pipe (vertical 40 mm) 500 mm (19.7 ") 1000 mm (39,4 ") 1800 mm (70,9 ") -
Page 7: Scope Of Delivery
Flexdip CYH112 Identification Scope of delivery The scope of delivery comprises: • Ordered assembly holder system • Operating Instructions, English. If you have any questions, please contact your supplier or your local sales center. Certificates and approvals The CYH112 holder system is suitable for use in hazardous zones 1 and 2. -
Page 8: Installation
Installation Flexdip CYH112 Installation Incoming acceptance, transport, storage • Make sure the packaging is undamaged! Inform the supplier about any damage to the packaging. Keep the damaged packaging until the matter has been settled. • Make sure the contents are undamaged! Inform the supplier about damage to the contents. -
Page 9: Installation Conditions
Flexdip CYH112 Installation Installation conditions max. 1200 (47.2) mm (inch) a0010838 Fig. 2: Maximum extension The given values are valid for floor, wall and rail mounting. The maximum extension depends on the load (weight of immersion pipe, assembly and cable). See the following diagram: 14.3... -
Page 10: Installation Instructions
Installation Flexdip CYH112 Installation instructions 3.3.1 Installing the base 12 (0.47) 120 (4.72) mm (inch) 150 (5.91) a0010790 Fig. 4: Drilling dimensions for base Note! Use M10 chemical anchors to mount the base on a concrete floor. Mount the base as follows: Set the base in position with the open part facing the basin rim. -
Page 11: Installing The Transverse Pipe With Fixed-Installation Assemblies
Flexdip CYH112 Installation 3.3.3 Installing the transverse pipe with fixed-installation assemblies Mount the transverse pipe as follows: With the funnel-shaped side pointing downwards, attach the multifunctional clamp ring to the main pipe. The distance between the upper edge of the multifunctional clamp ring and the base plate should not be exceed 1100 mm (43.3") (see installation conditions). -
Page 12: Installing The Transverse Pipe With Assembly
Installation Flexdip CYH112 3.3.4 Installing the transverse pipe with assembly chain retainer Prepare the main pipe as follows: With the funnel-shaped side pointing downwards, attach the multifunctional clamp ring to the main pipe. The distance between the upper edge of the multifunctional clamp ring and the base plate should not be exceed 1100 mm (43.3") (see installation conditions). -
Page 13: Installing The Rail Mounting, Pendulum Holder And Immersion Tube Tray
Flexdip CYH112 Installation Attach the cross clamp, along with the transverse pipe, to the main pipe. Align the holder. Tighten the clamping screws. 3.3.5 Installing the rail mounting, pendulum holder and immersion tube tray a0011312 Fig. 7: Installing the rail mounting, pendulum holder and immersion tube tray... -
Page 14: Installation For Wall And Capstone
Installation Flexdip CYH112 3.3.6 Installation for wall and capstone mounting 80 (3.15) mm (inch) a0010885 Fig. 8: Dimensions of bores for wall or capstone mounting Note! Use M8 chemical anchors for mounting on a concrete floor or concrete wall. Mount the holders for wall or capstone mounting as follows: Mark the securing holes on the concrete. -
Page 15: Installing The Pendulum Holder On The Capstone
Flexdip CYH112 Installation 3.3.7 Installing the pendulum holder on the capstone 12 (0.47) 12 (0.47) mm (inch) 79 (3.11) 50 (1.97) a0011252 Fig. 9: Dimensions of bores for pendulum holder on capstone Note! Use M10 chemical anchors to mount the base on a concrete floor. -
Page 16: Installing The Quick-Action Clamp
Installation Flexdip CYH112 3.3.8 Installing the quick-action clamp a0011342 Fig. 10: Clamping unit Clamps Cable tie Locking screw a0011403 Fig. 11: Mounting the quick-action clamp Mount the quick-action clamp as follows: Cut off the cable tie ( → å 10, item 2). -
Page 17: Operation
Flexdip CYH112 Operation Operation Warning! There is a risk of infection when working with wastewater! Therefore, wear protective gloves, goggles and protective clothing. Setting the assembly to the service position (fixed installation) Set the assembly to the service position as follows: Release the screws on the cross clamp. -
Page 18: Operating The Pendulum Holder
Operation Flexdip CYH112 Operating the pendulum holder a0011366 Fig. 12: Specifying the swing axis Swing axis with rotating sleeve blocked Swing axis with rotating sleeve not blocked Rotating sleeve Blocking screw for rotating sleeve You can determine the swinging direction (swing axis) at the pendulum holder by blocking the rotating sleeve (→... -
Page 19: Anti-Slip Lock For Rail Mounting
Flexdip CYH112 Operation Anti-slip lock for rail mounting a0011371 Fig. 13: Anti-slip lock for rail mounting Multifunctional clamp ring The multifunctional clamp ring acts as an anti-slip lock for rail mounting. The multifunctional clamp ring is available as an accessory. -
Page 20: Immersion Tube Tray
Operation Flexdip CYH112 Immersion tube tray a0011372 Fig. 14: Immersion tube tray for assembly service position Immersion tube tray The immersion tube tray makes it easier to perform maintenance tasks with rail mounting involving a pendulum holder and cross clamp. -
Page 21: Maintenance
Flexdip CYH112 Maintenance Maintenance Warning! There is a risk of infection when working with wastewater! Therefore, wear protective gloves, goggles and protective clothing. Lubricate the clamping systems and threads at regular intervals. Proceed as follows to do so: Clean the clamps and threads with soapy water. -
Page 22: Accessories
Accessories Flexdip CYH112 Accessories Multifunctional clamp ring • Chain retainer in conjunction with the triangle carabiner • Working height adjustment of the main pipe (version main pipe with transverse pipe) • The multifunctional clamp ring acts as an anti-slip lock on transverse pipes, main pipes and assemblies. - Page 23 Flexdip CYH112 Accessories Hook-and-loop cable ties • To fix the cables • Material: PE / PA (polyethylene / polyamide) • Order No. 71092051 Allen key • Size: 6 mm • Order No. 71092057 Pipe protection cap • Material: PE (polyethylene) •...
-
Page 24: Technical Data
Technical Data Flexdip CYH112 Technical Data Environment Air temperature -20 to +60 °C (-4 to +140 °F) Mechanical construction Dimensions Main pipe: Ø 40 mm (1.57") length: 500, 1000 and 1800 mm (19.7", 39.4" and 70.9") Transverse pipe: Ø 40 mm (1.57") length: 500, 1000 and 1500 mm (19.7", 39.4"... - Page 25 Flexdip CYH112 Technical Data Endress+Hauser...
-
Page 26: Index
Flexdip CYH112 Index Accessories........22 Quick-action clamp Anti-slip lock . - Page 27 Flexdip CYH112 Endress+Hauser...
- Page 28 www.endress.com/worldwide BA430C/07/en/04.09 71092595 Printed in Germany / FM+SGML 6.0 / DT 71092595...
