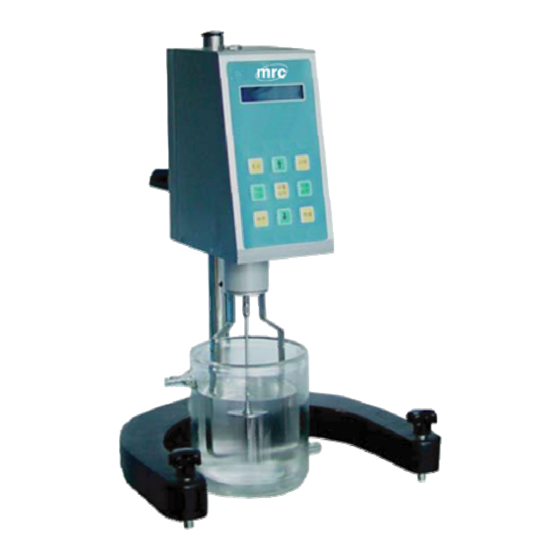

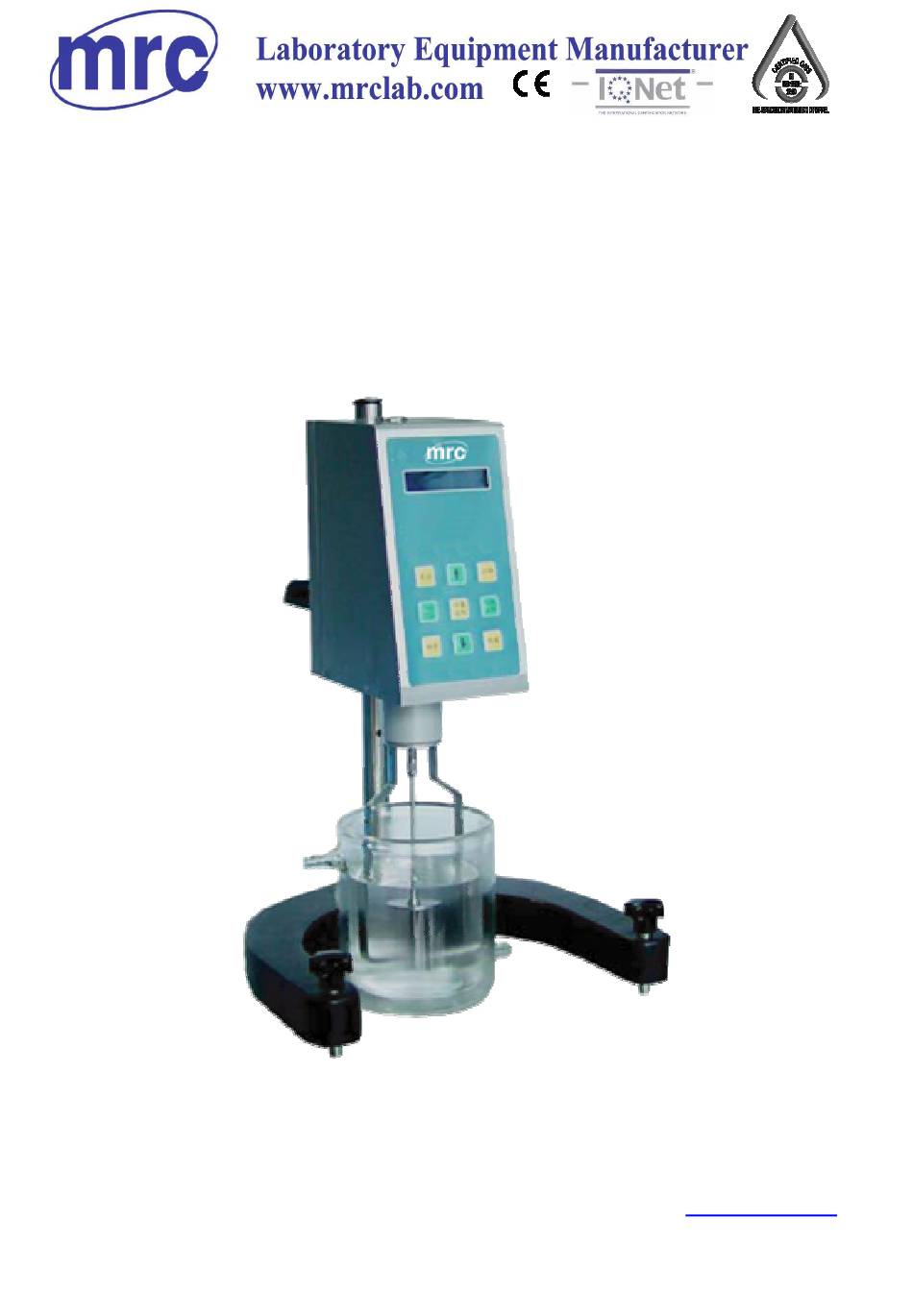

- Page 1 INSTRUCTION MANUAL FOR VIS-Series Digital Viscometer PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION 3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529 mrc@mrclab.com MRC.VER.02-11.10...
- Page 2 type digital viscometer is the most universal viscosity measurement instrument in the world. It is a great favorite of customers for the high cost-performance. It offers state-of-the-art functions and performances among the similar style of instruments. It is a digital viscosity measurement instrument features in a high micro-step driving of stepping motor with 16 bit micro-processor as the nuclear as well as a digital liquid crystal display with blue light-background.
-
Page 3: Structure And Principle
1. Major Technical Specifications Type VIS-1 VIS-2 Measuring 1-2,000,000 (2 million mPa·s) 0.5-6,000,000 (6 million mPa·s) Range (mPa·s) Rotary speed 0.3 RPM-100 RPM (Continuously 0.1 RPM-200 RPM (RPM) Variable) (Continuously Variable) Spindle No. No.1, 2, 3, and 4 spindles are provided (No. 0 spindle is optional) Precision ±... -
Page 4: Welcome To Use
below) (1) Take the base, stand, main body, spindle bracket, and protecting frame out of the packing case. (2) Place the stand into the hole of the base with both the open of the base and the gear rack on the stand facing the operator. -
Page 5: Over Range
indicates the current rotary speed of the motor in RPMs. 6000.0 cP indicates the maximum viscosity that can be measured at current rotary speed using the selected spindle (in cPs). Press the measure key, 3214.5 cP displayed on the screen is the viscosity measured under current rotary speed using the selected spindle. - Page 6 Display of over range will appear on the screen when the current rotary speed and current spindle measuring range are exceeded, while a warning beep will be emitted. When the torque exceeds 100%，the readings of percentage, viscosity, shear rate, shearing stress will all be EEEE. 9.
- Page 7 (11) There are many kinds of "non-Newtonian fluid" among suspensions, emulsions, polymers and other high viscosity fluids, the viscosity of which varies with conditions such as shear rate and time. Therefore, existence of inconsistent test from different spindles, rotary speeds and time is a normal phenomenon instead of instrumental error.
- Page 8 Assembly diagram RS232 interface Temperature probe interface Main body Power socket switch Coupling screw Knob Knob Screw M4 Yellow cap Yellow cap Holding screw Protecting frame Stand Temperature probe clamp Leveling bolt Nut M12 Base Spindle kit Fluid level Mark No.
-
Page 9: Please Read This Manual Carefully Before Operation
Operation Manual for Professional, Rotational Viscometer VIS-HBDV1P PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION 3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529 mrc@mrclab.com MRC.VER.01-3.12...
