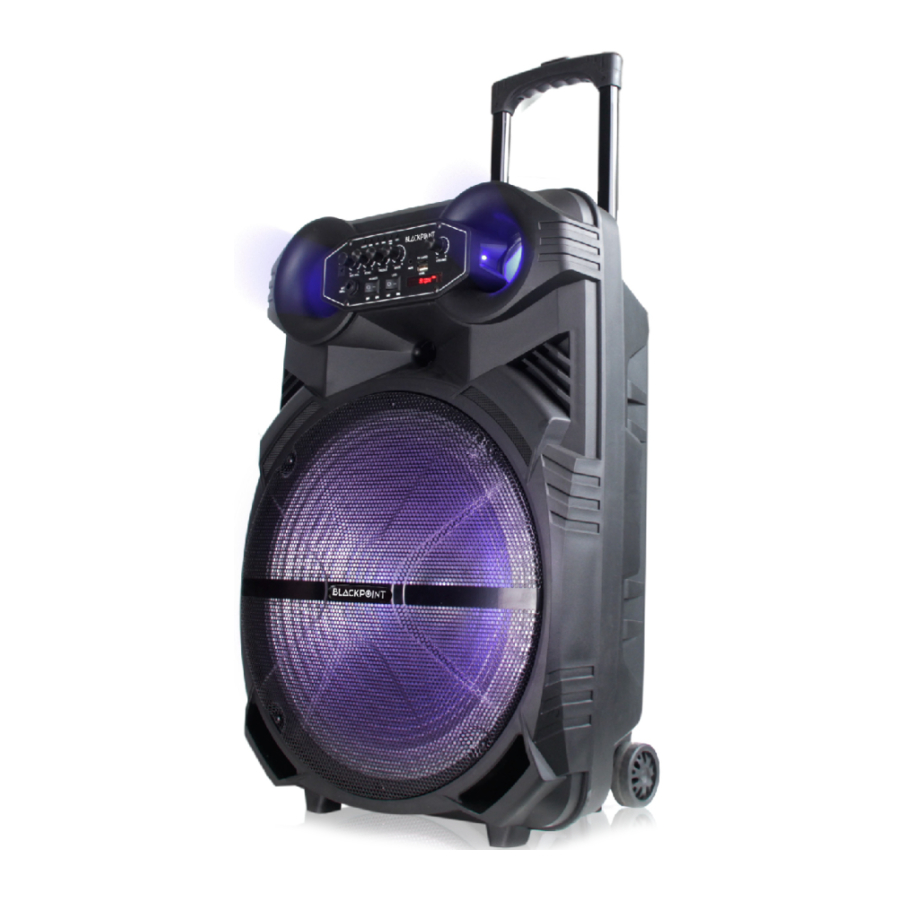

BLACKPOINT S51 - Rechargeable Speaker Manual

Table of Contents

Contents

1 FEATURES
2 SPECIFICATIONS
3 CONTROL PANEL
4 DISPLAY SYSTEM SETTINGS
5 WIRELESS BT CONNECTION
6 Recording
7 TWS / TRUE WIRELESS STEREO
8 INTERNATIONAL WARRANTY
9 Documents / Resources
- 9.1 References
- 9.2 Download manual

FEATURES

Wireless BT connection

TWS-True Wireless Stereo

Led lights effects

FM radio

USB/TF card

Rechargeable battery

Microphone input

25W power output

SPECIFICATIONS

Tweeter: 1.5"

Subwoofer Unit: 15"

AUX in

Lithium battery: 2200mAH

CONTROL PANEL

Power ON/OFF
LED ON/OFF
Master Volume: Adjust from Min to Max
Microphone Input
Power Supply: DC 9V
Microphone Volume Knob: Adjust from Min to Max
Echo of Microphone Adjustment: Adjust from Min to Max
Treble Volume Knob: Adjust from Min to Max
Bass Volume Knob: Adjust from Min to Max
AUX IN
TF Card Slot
USB Slot
Mode Button: Toggle between
AUX, USB, TF, FM, BT by Short Press;
Previous Track Button: Select previous track;
Play/Pause Button by Short Press;
TWS function by Long Press;
Next Track Button: Select next track;
Mic priority
REC

DISPLAY SYSTEM SETTINGS

Input Mode: When a USB flash drive / TF Card is inserted into the USB/TF input, the unit will automatically switch to USB/TF mode and begin playing Mp3 audio files from the USB flash drive / TF Card
Track Number: The track number currently playing from the USB/TF will display.
FM Mode: All FM channels display here. Short Press "play/pause" button for auto scan all channels.

WIRELESS BT CONNECTION

BT connection Mode: Open the BT connection of phone. Find the BT connection name of the unit called "S51" to connect. After a successful match, you can play the music from speaker.

Recording

Put USB/TF card in the slot, then insert the wired microphone, make sure it is working. Long press "REC/ PLAY" to start recording sound, short press "REC/PLAY" playing recording file. Press again to exit recording function.

TWS / TRUE WIRELESS STEREO

TWS connection: TWS Connection is only for two speakers.
Turn on the Speakers, press the MODE button to switch to BT connection mode.
At the first time, please long press each unit's TWS Button for about 3 seconds, then two speakers connected as a pair.
Connect the phone: Open the phone BT connection settings, Search and Connect the main device BT connection Name "S51".
Select music from phone and enjoy TWS playing in pairs with two Speakers.
Exit TWS: Long press (almost 3 seconds) the TWS button on the device.
Re-store factory settings: Select BT connection mode, press and hold the TWS button for about 3 seconds, the device will re-start and there will be no record of previous connection for speaker.
The user then connects to other devices according to the above connection steps.

INTERNATIONAL WARRANTY

Terms and Conditions

BLACKPOINT warrants the operation of this product to be free from any manufacturing and/or material defect for a period of 6 months from the date of purchase by the user.
This warranty is limited to the repair and/or replacement of this product, according to our own criterion, free of charge within the stipulated term and it does not extend to consequential or incidental damages to other products that may be used with this unit.
The warranty shall be voided in the following cases:
1. repair or attempt to repair by third parties not authorized by the company.
2. in case of performing any type of cut in connection cables, plugs, connectors, or other adapters different from the original ones provided by the company.
To make this warranty effective, you shall contact the Authorized Service Center of your country and they shall carry out the pertinent procedure. In order to start the necessary procedure to get said warranty, you shall hand in the Original Purchase Invoice where the purchase date, dealer name and product identification shall be stated clearly.
Transportation, freight, stay and/or insurance expenses, if any, are not covered by this warranty.
