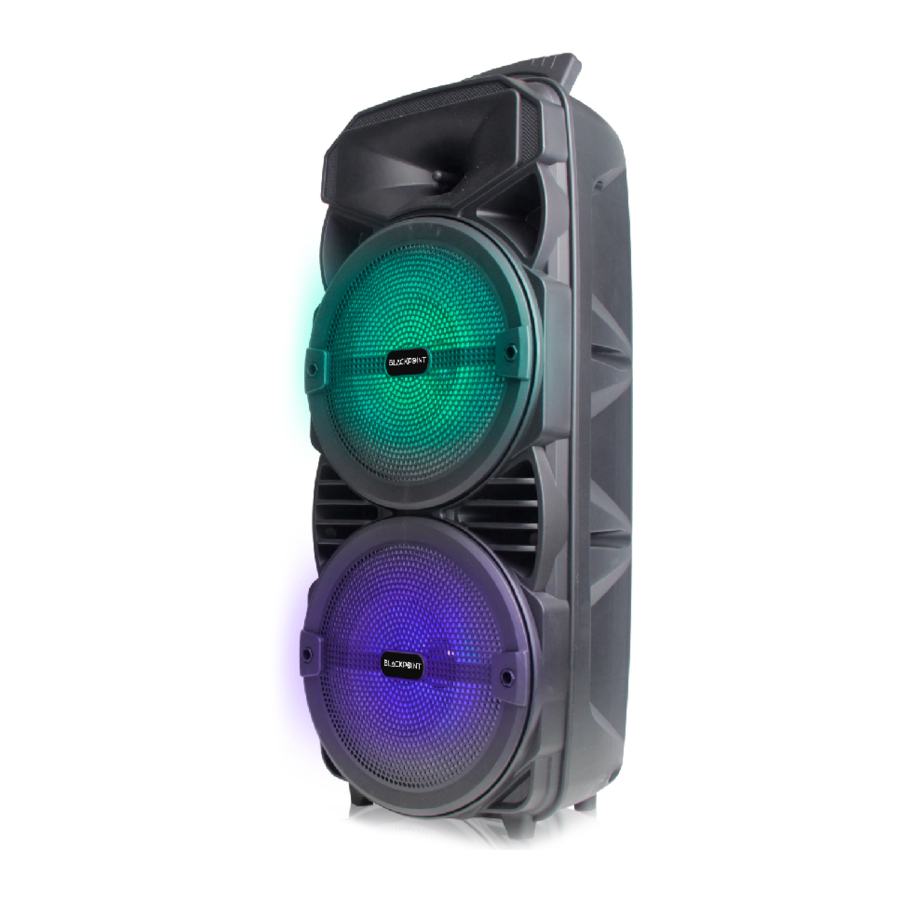

BLACKPOINT S43 - Rechargeable Speaker Manual

Please read the manual carefully before operating.

FEATURES

Wireless BT connection
TWS-True Wireless Stereo
Led lights effects
FM radio
USB/TF card
Rechargeable battery
Microphone input
15W power output

SPECIFICATIONS

Tweeter: 1.5"
Subwoofer Unit: 8"x2
AUX in
Lithium battery: 3000mAH

CONTROL PANEL

1. Power ON/OFF Adjust the master volume.
2. Echo of Microphone Adjustment: Adjust from Min to Max
3. Microphone Volume Knob: Adjust from Min to Max
4. Microphone Input
5. Power Supply: DC 5V 1A
6. AUX IN
7. USB Slot
8. TF Card Slot
9. Mode Button: Toggle between AUX, USB, TF, FM, BT by Short Press; Long Press to turn on/ off the light
10. Previous Track Button: Select previous track
11. Play/Pause Button by Short Press; TWS (True Wireless Stereo): TWS function by Long Press
12. Next Track Button: Select next track
13. Battery Indicator

DISPLAY SYSTEM SETTINGS

1. Input Mode: When a USB flash drive / TF Card is inserted into the USB/TF input, the unit will automatically switch to USB/TF mode and begin playing Mp3 audio files from the USB flash drive/TF Card.
2. Track Number: The track number currently playing from the USB/TF will display.
3. FM Mode: All FM channels display here. Short Press "play/pause" button for auto scan all channels.

WIRELESS BT CONNECTION

BT connection Mode: Open the BT connection of phone. Find the BT connection name of the unit called "S43" to connect. After a successful match, you can play the music by speaker.

TWS CONNECTION (TRUE WIRELESS STEREO)

1. TWS connection: TWS Connection is only for two speakers.
2. Turn on the Speakers, press the MODE button to switch to BT mode.
3. At the first time, please long press each unit's TWS Button for about 3 seconds, then two speakers connected as a pair.
4. Connect the phone: Open the phone BT settings, Search and Connect the main device BT Name "S43".
5. Select music from phone and enjoy TWS playing in pairs with two Speakers.
6. Exit TWS: Long press (almost 3 seconds) the TWS button on the device.

INTERNATIONAL WARRANTY

Terms and Conditions

1. BLACKPOINT warrants the operation of this product to be free from any manufacturing and/or material defect for a period of 6 months from the date of purchase by the user.
2. This warranty is limited to the repair and/or replacement of this product, according to our own criterion, free of charge within the stipulated term and it does not extend to consequential or incidental damages to other products that may be used with this unit.
3. To make this warranty effective, you shall contact the Authorized Service Center of your country and they shall carry out the pertinent procedure. In order to start the necessary procedure to get said warranty, you shall hand in the Original Purchase Invoice where the purchase date, dealer name and product identification shall be stated clearly.

REPAIR SERVICE

To ask for customer service please call 0810-888-7262.

www.blackpoint.life
