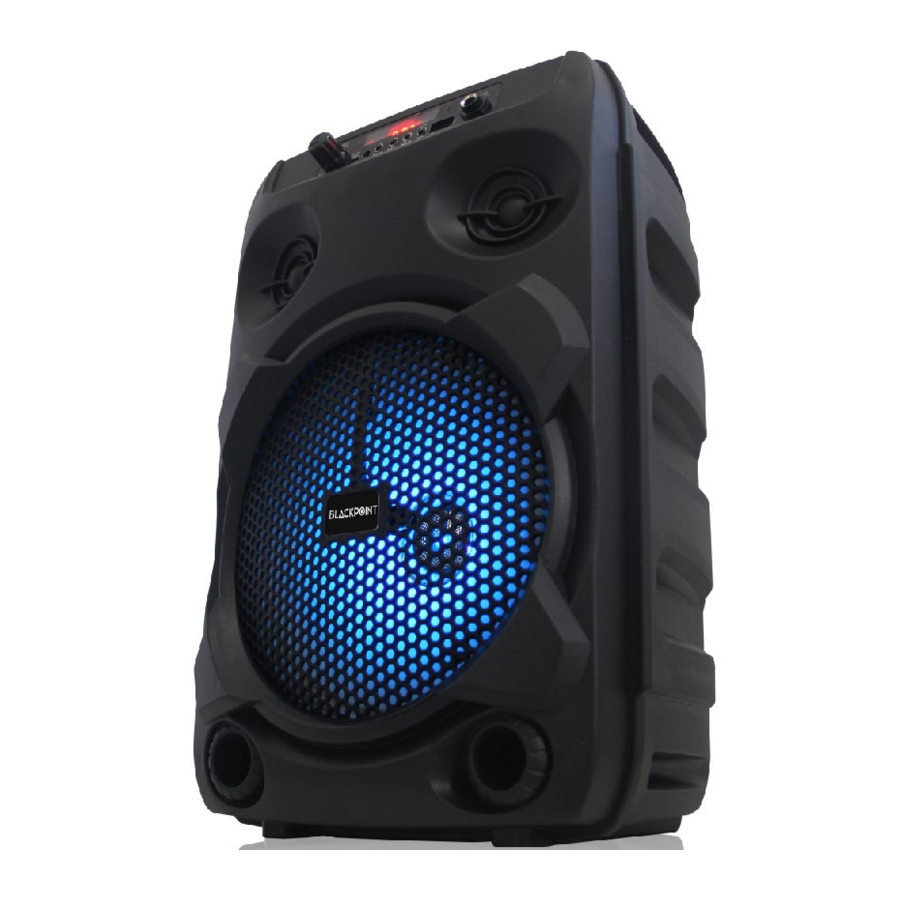

BLACKPOINT S35 - Rechargeable Speaker Manual

Please read the manual carefully before operating.

FEATURES

Wireless BT connection
TWS-True Wireless Stereo
FM radio
USB port
RGB led lights
Rechargeable battery
USB charging cable
Mic input jack
Aux in
8W power output

SPECIFICATIONS

Speaker size: 8"
Lithium battery: 1200mAh

CONTROL PANEL FUNCTIONS

1. POWER VOLUME CONTROL
   Turn to adjust the volume lo the desired level.
2. DC INPUT
   USB charging cable / Adapter input 6V/500A.
3. AUX INPUT
   3.5mm Stereo jack can be used Jo connect a CD player, MP3player, smart phone and other audio sources.
4. PREVIOUS TRACK
   Skip to previous track
5. PLAY/PAUSE/SCAN(TWS)
   Playing the music, press it to play and pause music FM is on, press it to auto searching the FM station TWS mode, press in 3 seconds to auto searching another pairing speaker
6. NEXT
   Skip to next track.
7. MODE/LED
   Press to change mode(FM, BT, AUX, USB), and long press 3 seconds to control the LED light.
8. USB PORT
   USB entry port.
9. MIC INPUT
   6.35mm jack input for microphone.
10. DISPLAY
    It is a display to show the function for example current MODE, Bluetooth, FM, USB, AUX, etc

TWS (TRUE WIRELESS STEREO)

Connection: a mobile connect with a speaker (it is a main unit) by bt connection, turn on another bt connection from second speaker (subsidiary unit), then press and hold this "SCAN/TWS" button in 3 seconds on main unit that it can connect with subsidiary unit by TWS connection.

1. Do not place objects on top of the device, as objects may scratch the device.
2. Do not expose the device to dirty or dusty environments.
3. Do not insert any foreign objects into the device.
4. Do not expose the device to strong magnetic or electrical field.
5. Do not use the device in the rain.
6. Please check with your Local Authority or retailer for proper disposal of electronic products.
7. Do not disassemble the device. Only a certified service technician should perform repair.
8. The device has apertures to disperse heat. Do not block the device may become hot and malfunction as a result.
