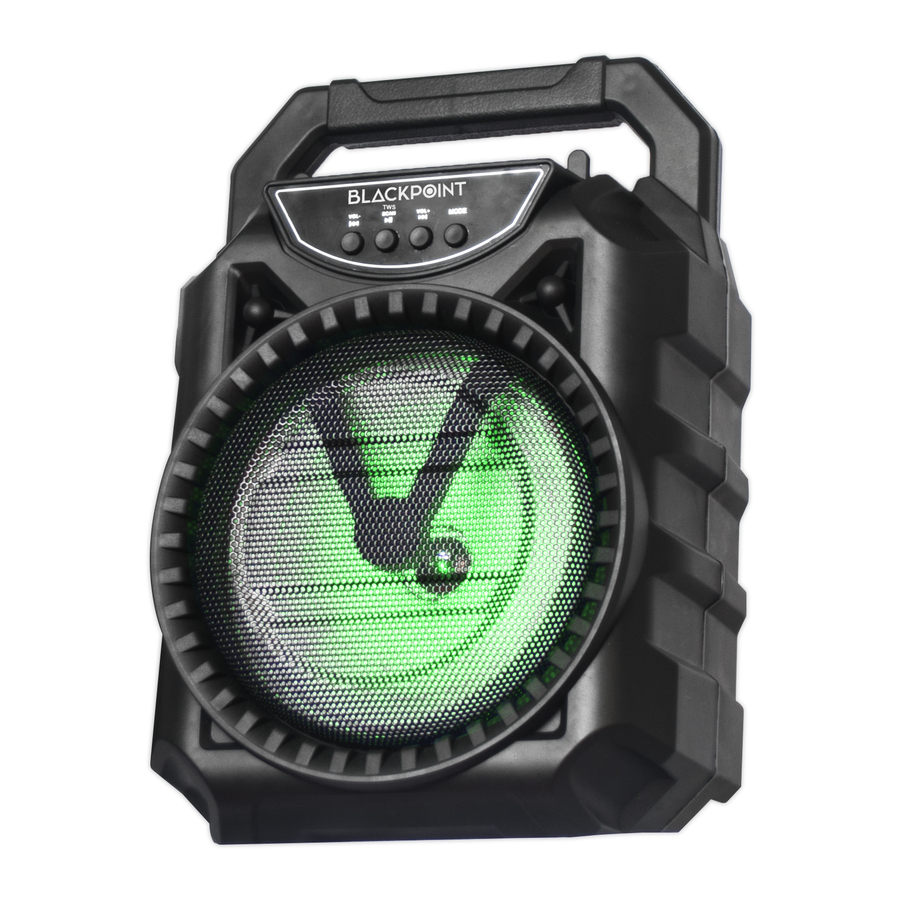

BLACKPOINT S29 - Portable Rechargeable Speaker Manual

FEATURES

Wireless BT connection
TWS-True wireless stereo
LED lights effects
FM Radio
USB
Rechargeable battery
Microphone input 5W power output

SPECIFICATIONS

Subwoofer Unit: 6.5"
Lithium battery: 1200mAH

CONTROL PANEL

1. MODE
   Change the function inbetween BT, USB, AUX, FM.
2. /V-
   Play for the previous music and the previous FM station. Press and hold to make the sound reduce.
3. /SCAN
   Press a time to play the music and pause the music. Press a time to auto search FM station.
4. /V+
   Play for the next music and the next FM station. Press and hold to make the sound increase.
5. FM
   This function is stored at "MODE" button, press this button to switch to FM, then press "SCAN" button to search the radio station.
6. USB
   It is a USB slot to read the mp3 music from USB driver.
7. DC IN
   When it is connected with a power source, the led lights up.
8. AUX
   It is a aux-in jack to connect mp3, mobile, notebook, pc.
9. ON/OFF
   It is a power on/off switch.
10. BT CONNECTION

• Use the "MODE" button on main panel select "BT".
• Use the "MODE" button to select Wireless function, Whenwireless function is on, LED display will show "BLUE".
• Use your smart phone to pair wirelessly to speaker, pairingname is "S29"
• Use your smart phone to change track
• Volume can be controlled from your smart phone, mainunit or unit.

TWS/ TRUE WIRELESS STEREO

1. TWS connection: TWS Connection is only for twospeakers.
2. Turn on the Speakers, press the MODE buiton to switch to BT connection mode.
3. At the first time, please long press each unit's TWS Button for about 3 seconds, then two speakers connected as a pair.
4. Connect the phone: Open the phone BT connection settings, Search and Connect the main device BT connection Name "S29".
5. Select music from phone and enjoy TWS playing in pairs with two Speakers.
6. Exit TWS: Long press (almost 3 seconds) the TWS button on the device.
7. Re-store factory settings: Select BT connection mode, press and hold the TWS button for about 3 seconds, the device will re-start and there will be no record of previous connection for speaker.

The user then connects to other devices according to the above connection steps.

INTERNATIONAL WARRANTY

Terms and Conditions

1. BLACKPOINT warrants the operation of this product to be free from any manufacturing and/or material defect for a period of 6 months from the date of purchase by the user.
2. This warranty is limited to the repair and/or replacement of this product, according to our own criterion, free of charge within the stipulated term and it does not extend to consequential or incidental damages to other products that may be used with this unit.
3. The warranty shall be voided in the following cases: a) repair or attempt to repair by third parties not authorized by the company. b) in case of performing any type of cut in connection cables, plugs, connectors, or other adapters different from the original ones provided by the company.
4. To make this warranty effective, you shall contact the Authorized Service Center of your country and they shall carry out the pertinent procedure. In order to start the necessary procedure to get said warranty, you shall hand in the Original Purchase Invoice where the purchase date, dealer name and product identification shall be stated clearly.
5. Transportation, freight, stay and/or insurance expenses, if any, are not covered by this warranty.

REPAIR SERVICE

To ask for customer service please call 0810-888-7262.

To prevent fire or electric shock, do not expose this appliance to rain or moisture.
Do not remove the cover (on the back), there are no internal parts that can be repaired by the user. Consult service to qualified service personnel
