BLACKPOINT S13.2 - Rechargeable Speaker Manual

FEATURES

BT connection
USB/TF
FM radio
Led Color light
Rechargeable battery
Aux In
Led display
Micro USB Charging port

SPECIFICATIONS

Speaker size: 3 inches
Lithium battery: 500mAh
Power Output: 4.4W RMS

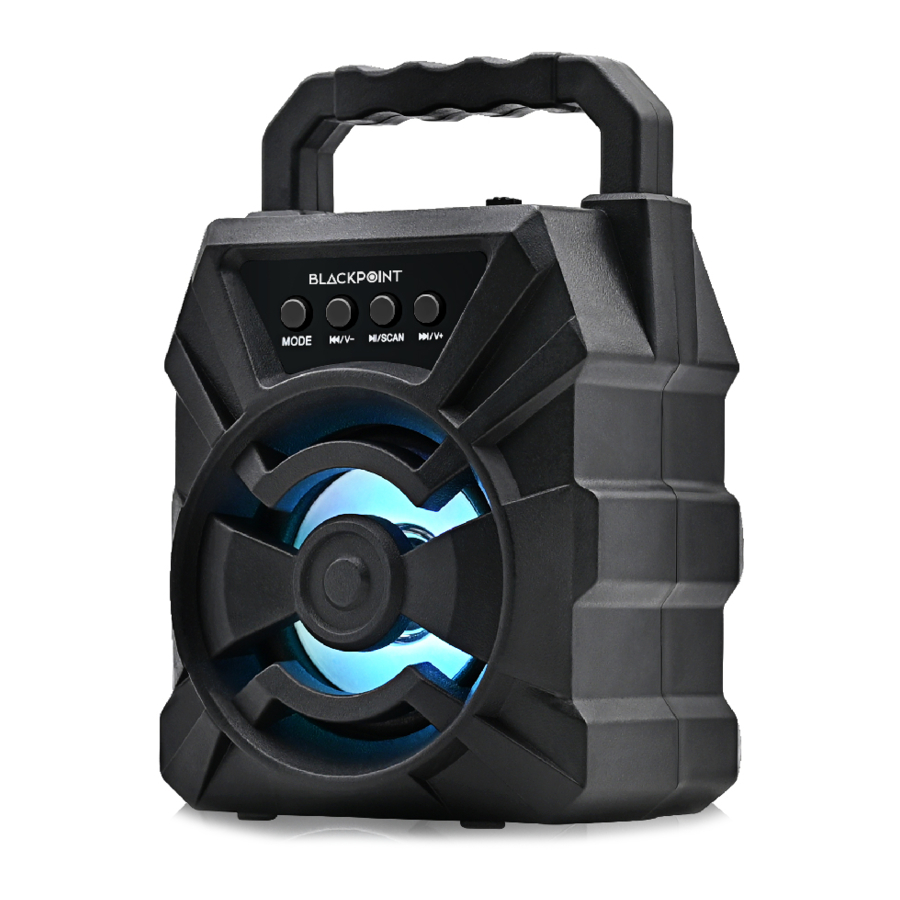

CONTROL PANEL

1. MODE
   Change the function inbetween BT, USB, TF Card, AUX, FM.
2. /V-
   Play for the previous music and the previous FM station. Press and hold to make the sound reduce.
3. /SCAN
   Press a time to play the music and pause the music. Press a time to auto search FM station.
4. /V+
   Play for the next music and the next FM station. Press and hold to make the sound increase.
5. FM
   This function is stored at "MODE" button, press this button to switch to FM, then press "SCAN" button to search the radio station.
6. USB
   It is a USB slot to read the mp3 music from USB driver.
7. TF CARD
   It is a TF card slot to read the mp3 music from TF driver.
8. DC IN
   When it is connected with a power source, the led lights up.
9. AUX
   It is a aux-in jack to connect mp3, mobile, notebook, pc.
10. ON/OFF
    It is a power on/off switch.
11. BT CONNECTION
    Press " MODE " button to enter into BT mode.
    There is a led light to show bluetooth connected.

TWS/ TRUE WIRELESS STEREO

1. Use mobile to connect any of Blackpoint speaker (it is main unit) by BT wireless.
2. Take second speaker in BTmode, double click " /SCAN" button, TWS connection is activated, second speaker is connected to main unit by TWS connection.

Disconnection

Press " /SCAN" button or press "MODE" button on second speaker, the TWS function is disconnected.

Note:
It is recommended to regulate the listening volume from the linked BT device (cellphone, etc), kepping the volume of each speaker to the maxiumun
