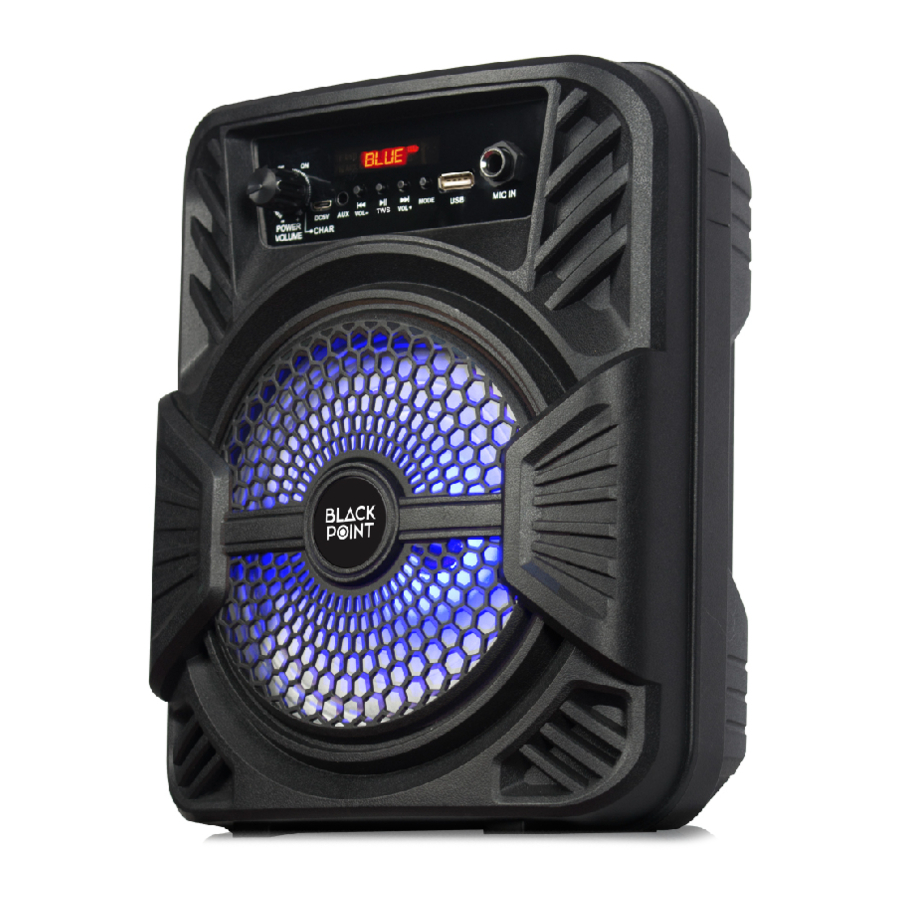

BLACKPOINT S32.1 - Rechargeable Speaker Manual

Table of Contents

Contents

1 FEATURES
2 SPECIFICATIONS
3 CONTROL PANEL
4 CONNECTING UNIT
5 VOLUME CONTROL
6 PLAYING MP3 FILES THROUGH THE USB STICK
7 USING AUX(AUDIO INPUT FUNCTION)
8 LISTENING FM RADIO FROM THE SPEAKER
9 WIRELESS BT CONNECTION
10 TWS / TRUE WIRELESS STEREO
11 INTERNATIONAL WARRANTY
- 11.1 REPAIR SERVICE
12 Documents / Resources
- 12.1 References
- 12.2 Download manual

FEATURES

Wireless BT connection
TWS-True Wireless Stereo
Led lights effects
FM radio
USB slot
Rechargeable battery
USB charging cable
Microphone input 6W power output

SPECIFICATIONS

Subwoofer Unit: 6.5"
AUX in
Lithium battery: 1200mAH

CONTROL PANEL

Control Panel - Controls and Description

Power ON/OFF.
Display
AUX IN
MIC in
USB Slot
Volume-/ Select previous track
TWS mode
Volume+/ Select next track
Mode Toggle between AUX, USB, FM, BT
Led status charge Indicator
Power Supply: DC 5V

CONNECTING UNIT

Connect the supplied AC power cord one end to unit and other end to AC socket.
Switch "ON" power switch, back side of unit. LED power switch to open LED lights.
This unit is manufactured to use on AC 100-240V.

VOLUME CONTROL

Volume can becontrolled from Unit.
Maximum volume will be to the level set on unit through rotary volume control.
Press Vol- for Down or VOL+ for up.
When connected to your smart phone wirelessly, volume can be controlled from unit and your smart phone both.
The sound output quality off the speakers will depend on the quality of the MP3 files. Volume will be maximum to the level set manually through unit volume knob.

PLAYING MP3 FILES THROUGH THE USB STICK

Playing MP3 Files through the speaker using the USB Stick.
Use "MODE" button on the units control panel to switch between the features MP3, USB, FM radio or Wireless function.
Plug in your USB Disk in the slots provided. Please make sure you use the correct file format in your media devicesMP3 FILES ONLY. If your media files does not play, press the ( ) (PLAY/PAUSE) button. please ensure that your media is properly connected and that your files are MP3 format, or that the MODE button is on the correct source.
Press ( ) to listen to the previous track and ( )to skip to the next track from unit control panel.
To Pause a track. press the ( )button from the Control Panel. To remove pause, press button again.
Please remember to turn off the power of the Speaker before removing the USB Disk.

USING AUX(AUDIO INPUT FUNCTION)

Use "MODE" button on unit main panel to select AUX.
Use supplied cable to connect your audio device, one end to audio device like DVD jack, and other end to unit "Audio Input jack".

LISTENING FM RADIO FROM THE SPEAKER

Use "MODE" button on unit main panel to select "FM"
Or to use "FM" button select "FM".
From the unit control panel, press to manually access the station up or down.
"Antenna" to be used for better reception of FM stations.

WIRELESS BT CONNECTION

Use the "MODE" button on main panel select "BT".
Use the "MODE" button to select Wireless function, When wireless function is on, LED display will show "BLUE".
Use your smart phone to pair wirelessly to speaker, pairing name is "S32.1"
Use your smart phone to change track
Volume can be controlled from your smart phone, main unit or unit.

TWS / TRUE WIRELESS STEREO

TWS connection: TWS Connection is only for two speakers.
Turn on the Speakers, press the MODE button to switch to BT connection mode.
At the first time, please long press each unit's TWS Button for about 3 seconds, then two speakers connected as a pair.
Connect the phone: Open the phone BT connection settings, Search and Connect the main device BT connection Name "S32.1".
Select music from phone and enjoy TWS playing in pairs with two Speakers.
Exit TWS: Long press (almost 3 seconds) the TWS button on the device.
Re-store factory settings: Select BT connection mode, press and hold the TWS button for about 3 seconds, the device will re-start and there will be no record of previous connection for speaker.
The user then connects to other devices according to the above connection steps.

INTERNATIONAL WARRANTY

Terms and Conditions

BLACKPOINT warrants the operation of this product to be free from any manufacturing and/or material defect for a period of 6 months from the date of purchase by the user.
To make this warranty effective, you shall contact the Authorized Service Center of your country and they shall carry out the pertinent procedure. In order to start the necessary procedure to get said warranty, you shall hand in the Original Purchase Invoice where the purchase date, dealer name and product identification shall be stated clearly.
