INTRODUCTION

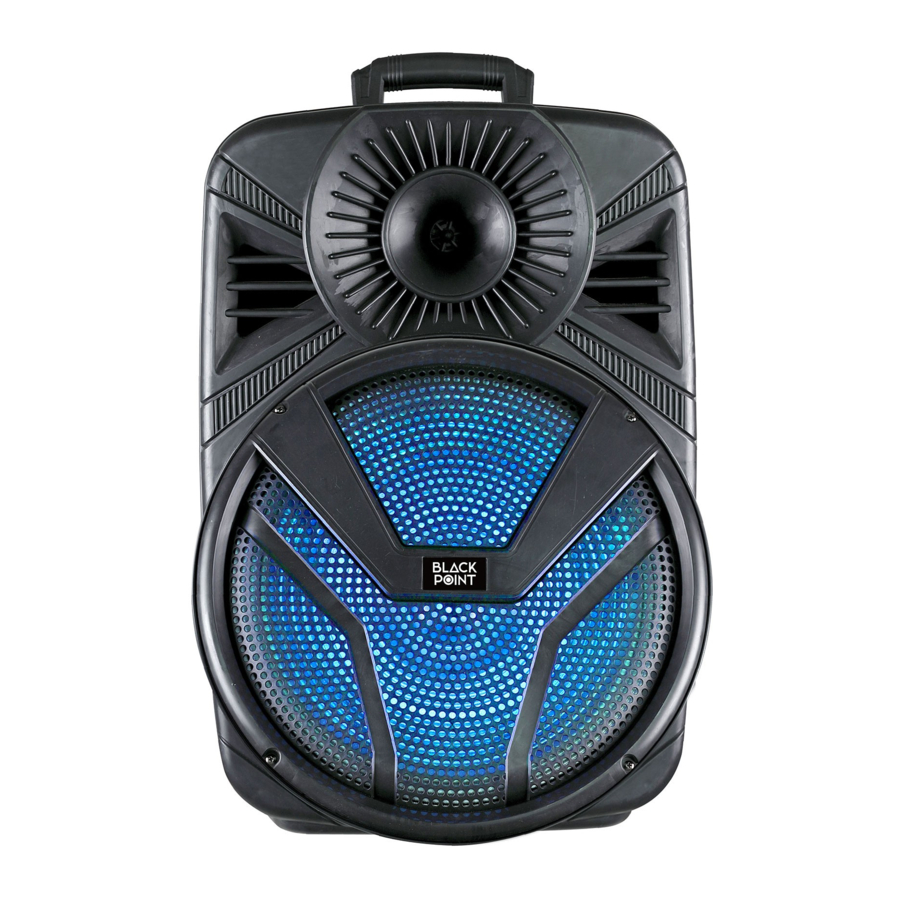

Thank you for purchasing S50 Blackpoint's Rechargeable Speaker. Please read the manual carefully before operating.

CONTROL PANEL

Mic input
Microphone Volume Knob: Adjust from Min to Max
Echo of Microphone Volume Knob: Adjust from Min to Max
MICRO SD Slot
USB Slot
Mode Button: Toggle between AUX, USB, MICRO SD, FM, BT by Short Press;
Previous Track Button: Select previous track by Short press; Recording play by Long press
Play/Pause Button by Short press;
Next Track Button: Select next track by Short press; Recording by Long press
AUX input
Power ON/OFF; Adjust the master volume.
Charge Indicator
Power Supply: DC in

FEATURES

Wireless BT connection
TWS-True wireless stereo
Led lights effects
Led display
FM radio
USB/TF card
Rechargeable battery
Microphone input
25W power output

SPECIFICATIONS

Tweeter Unit: 1.5"
Subwoofer Unit: 15"
AUX in
Lithium battery:
3000mAH

DISPLAY SYSTEM SETTINGS

Input Mode: The LED display screen will display the information of input mode for USB/IF CARD/BT/AUX / FM. When a USB flash drive / TF Card is inserted into the USB/TF Card input, the unit will automatically switch to USB/TF Card mode and begin playing Mp3 audio files from the USB flash drive / TF Card.
Track Number: The track number currently playing from the USB/TF Card. will display.
FM Mode: All FM channels display here. Short Press "play/pause" button for auto scan all channels.

WIRELESS BT CONNECTION

BT connection Mode: Open the BT connection of phone. Find the BT connection name of the unit called "S50" to connect. After a successful match, you can play the music from speaker. You won't need reconnect the BT connection when switching mode.

TWS / TRUE WIRELESS STEREO

TWS connection: TWS Connection is only for two speakers.
Turn on the Speakers, press the MODE button to switch to BT connection mode.
Please long press each unit's TWS Button for about 3 seconds, then two speakers connected as a pair.
Connect the phone: Open the phone BT connection settings, Search and Connect the main device BT connection Name "S50".
Select music from phone and enjoy TWS playing in pairs with two Speakers.
Exit TWS: Long press(almost 3 seconds) the TWS button on the device.

warning Note:
It is recommended to regulate the listening volume from the linked BT device (cellphone, etc), kepping the volume of each speaker to the maxiumun.

INTERNATIONAL WARRANTY

Terms and Conditions

BLACKPOINT warrants the operation of this product to be free from any manufacturing and/or material defect for a period of 6 months from the date of purchase by the user.
This warranty is limited to the repair and/or replacement of this product, according to our own criterion, free of charge within the stipulated term and it does not extend to consequential or incidental damages to other products that may be used with this unit.
The warranty shall be voided in the following cases:
1. repair or attempt to repair by third parties not authorized by the company.
2. in case of performing any type of cut in connection cables, plugs, connectors, or other adapters different from the original ones provided by the company.
To make this warranty effective, you shall contact the Authorized Service Center of your country and they shall carry out the pertinent procedure. In order to start the necessary procedure to get said warranty, you shall hand in the Original Purchase Invoice where the purchase date, dealer name and product identification shall be stated clearly.
Transportation, freight, stay and/or insurance expenses, if any, are not covered by this warranty.
