Electrical Connections; Fcc Notice - C-LITE C-HB-A-LB2-SCCT Series Installation Instructions Manual

INSTALLATION INSTRUCTIONS
C-HB-A-LB2-SCCT Series
PENDANT MOUNT
(FOR FIXTURES WITH FACTORY INSTALLED 6FT
1. Using a flat head screwdriver, remove the (2) 3/4" knockouts from
the top surface of the fixture. Be careful not to damage any wires
inside the LED driver compartment. See Figure 2.
2. Using (2) 3/4" threaded conduit pendant stems (provided by
others), mount the fixture in the desired location. Open the bottom
access door of the LED driver compartment to access conduit
entry points. See Figure 3. Two locknuts should be used on each
pendant stem (one for inside the LED driver compartment and one
for outside). See Figure 7.
NOTE: Pendant support spacing is 22-3/4" center-to-center for 2'
fixtures. See Figure 8.
Complete the wiring to the supply leads per the Electrical
3.
Connections section.
4. Remove rubber protective cover from center fitting on bottom
of fixture. Select the desired CCT and wattage using the dip
switches. Replace rubber cover. See Figure 5.
5. If required, rotate outer light bars to produce desired lighting
distribution. See Figure 6.
FIELD INSTALLED OCCUPANCY SENSOR
ACCESSORY
(Requires use of PIR Occupancy Sensor
C-HB-A-LB2-ACC-PIR)
NOTE: When occupancy sensor is used, dimming is controlled by the
occupancy sensor.

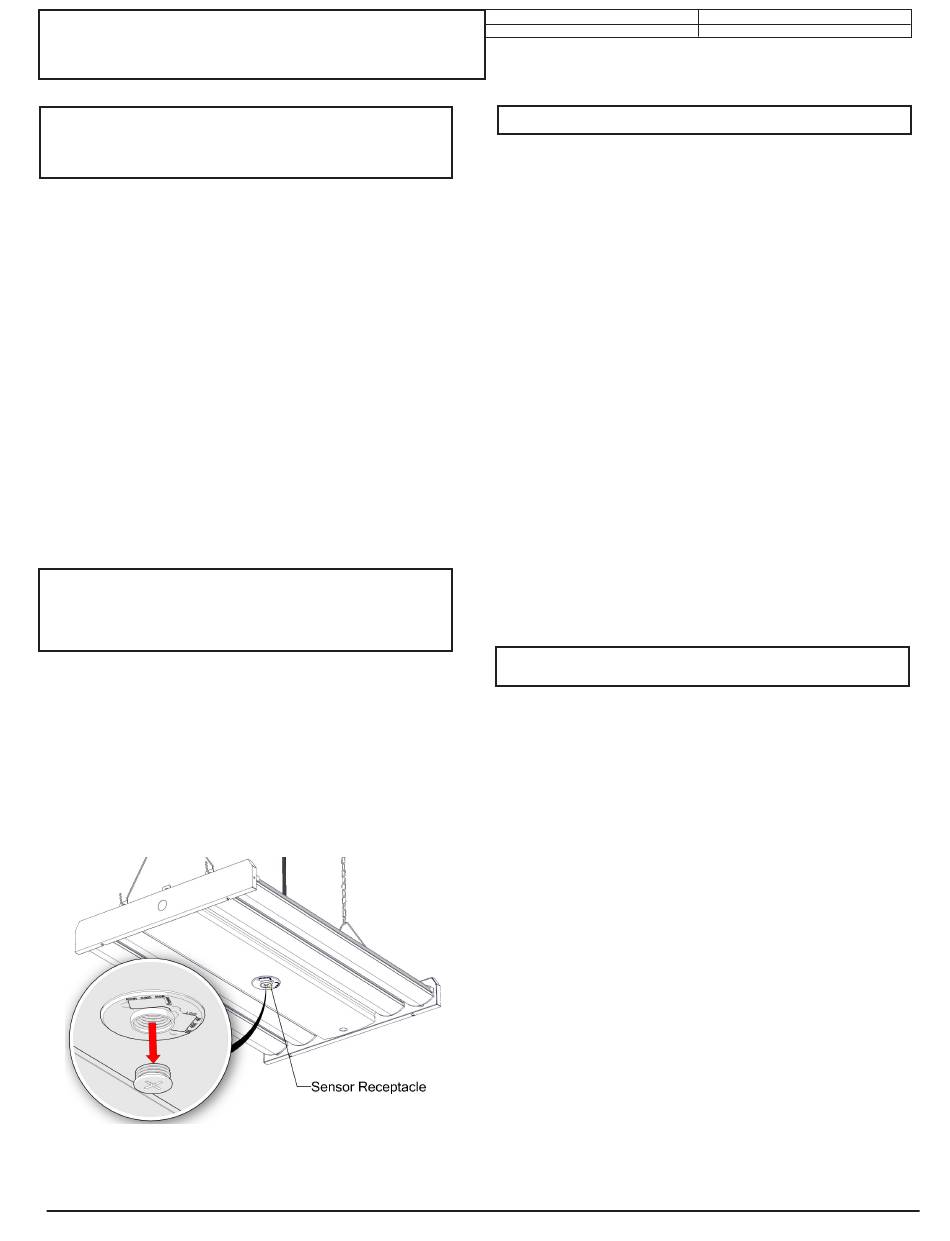

1. Remove threaded plug from center fitting on bottom of fixture. See
Figure 9.
2. Adjust sensor settings using the installation instructions included
with the sensor.
3. Insert pin on sensor into receptacle in center fitting on fixture and
thread sensor into fitting.
FIGURE 9
CORD)
http://lighting.cree.com/warranty
Document LPN00707X0001A0_B
Créé par : TMT

ELECTRICAL CONNECTIONS

Fixture is equipped with universal volt driver 120-277V or a 277-
480V driver.
NOTE: Make sure voltage range of fixture is compatible with
supply voltage.
PHASE TO NEUTRAL WIRING 120/277/347V
1. Connect supply ground to fixture ground (green) lead.
2. Connect supply common to fixture neutral (white) lead.
3. Connect supply Vin to fixture hot (black) lead.
Tuck all wires carefully into wiring chamber ensuring that no wires
are pinched.
PHASE TO PHASE WIRING 208/240/480V
1. Connect supply ground to fixture ground (green) lead.
2. Connect supply L1 (Hot) to fixture neutral (white) lead.
3. Connect supply L2 (Hot) to fixture hot (black) lead.
Tuck all wires carefully into wiring chamber ensuring that no wires
are pinched.
DIMMING
NOTE: When occupancy sensor is used, dimming is controlled by oc-
cupancy sensor.
1. Grey or pink (-) and violet (+) leads are for 0-10V dimming
systems. Cap off if not used.
NOTE: For dimming connections, use Class 1 wiring meth-
ods only.

FCC NOTICE

CAUTION: Changes or modifications not expressly approved could
void your authority to use this equipment.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area
is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
CAN ICES-005 (A)/NMB-005 (A)
