INSTALLATION INSTRUCTIONS
C-HB-A-LB2-SCCT Series
CAUTIONS
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety
precautions should always be followed including the
READ AND FOLLOW ALL
SAFETY INSTRUCTIONS
1. DANGER- Risk of shock- Disconnect power before
installation.
DANGER – Risque de choc – Couper l'alimentation
avant l'installation.
2. This luminaire must be installed in accordance with the
NEC or your local electrical code. If you are not familiar
with these codes and requirements, consult a qualified
electrician.
Ce produit doit être installé confromément à NEC ou votre
code électrique local. Si vous n'êtes pas familier avec ces
codes et ces exigences, veuillez contacter un électricien
qualifié.
3. SUITABLE FOR DAMP LOCATIONS.
CONVIENT AUX EMPLACEMENTS HUMIDES
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE

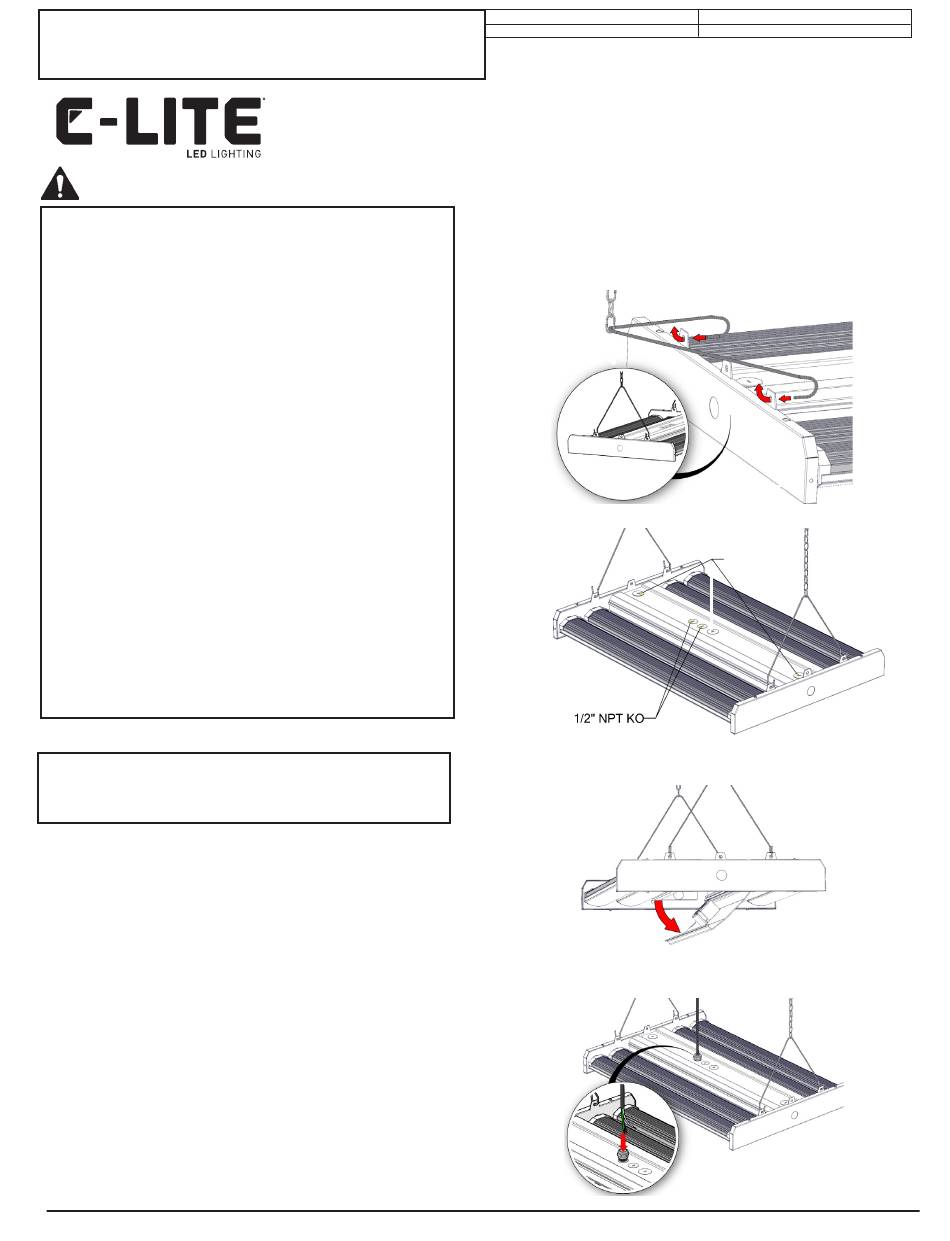

CHAIN OR CABLE MOUNT
(FOR FIXTURES WITHOUT FACTORY INSTALLED
6FT CORD)
1. Attach support chains or cables (supplied by others or purchased
as Chain Kit Mounting Accessory C-ACC-A-CHAIN) to the (2)
supplied V-hooks.
2. Insert the ends of the V-hooks through the hole locations on
both ends of the fixture. See Figure 1. To prevent V-hooks from
disconnecting from the fixture, pinch the ends of the V-hooks shut.
3. Attach opposite ends of support chains or cables to mounting
surface. Make sure mounting surface and customer supplied
hardware can support the weight of the fixture.
4. Using a flat head screwdriver, remove the chosen 1/2" knockout
from the top surface of the fixture for supply wiring entry. See
Figure 2. Be careful not to damage any wires inside the LED
driver compartment.
5. Open the bottom access door of the LED driver compartment. See
Figure 3.
6. Cord Kit:
From outside the fixture, insert leads of cord through 1/2" knockout
removed in Step 4 and snap strain relief into top surface of fixture.
See Figure 4.
Conduit:
Run the supply leads through either rigid or flexible conduit to the
knockout removed in Step 4. Use the appropriate conduit fitting to
following:
http://lighting.cree.com/warranty
Document LPN00707X0001A0_B
Créé par : TMT
secure the conduit to the fixture.
7. Complete the wiring to the supply leads per the Electrical
Connections section.
NOTE: On fixtures using cord kit, wiring must be completed on
both ends of cord.
8. Close the access door of the LED driver compartment, being
careful not to pinch any leads.
9. Remove rubber protective cover from center fitting on bottom
of fixture. Select the desired CCT and wattage using the dip
switches. Replace rubber cover. See Figure 5.
10. If required, rotate outer light bars to produce desired lighting
distribution. See Figure 6.
FIGURE 1
FIGURE 2
FIGURE 3
FIGURE 4
| 866.924.3645
Date : 05-03-2023
3/4" NPT KO
(For Pendant
Mounting)
