C-LITE C-WP-C-TR Series Quick Start Manual

INSTALLATION INSTRUCTIONS
C-WP-C-TR Series
CAUTIONS
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety
precautions should always be followed including the
READ AND FOLLOW ALL
SAFETY INSTRUCTIONS
1. DANGER- Risk of shock- Disconnect power before
installation.
DANGER – Risque de choc – Couper l'alimentation
avant l'installation.
2. This Product Must Be Installed In Accordance With The
Applicable Installation Code By A Person Familiar With
The Construction And Operation Of The Product And The
Hazards Involved.
Ce Produit Doit Être Installé Selon Le Code D'installation
Pertinent, Par Une Personne Qui Connaît Bien Le
Produit Et Son Fonctionnement Ainsi Que Les Risques
Inhérents.
3. Wall Mount Only.
INSTALLATION MURALE SEULEMENT
4. Suitable for wet locations.
Convient aux emplacements mouilles.
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE
MOUNTING OVER RECESSED JUNCTION BOX
NOTE: Knockouts are provided for mounting over 3" octagonal, 4" oc-
tagonal, or 4" square junction boxes.
1. Remove lens assembly by loosening screws on side of frame. Do
not loosen tamper proof screws on hinge side of frame. Swing lens
assembly open,disconnect quick connect wiring connector(s) and
lift lens assembly upward to remove from housing.
2. Drill out appropriate knockouts in back box for attachment to junction
box. Also drill knockout for wiring access.
NOTE: Luminaire should not be exclusively supported by junction
box. Drill knockouts in lower two corners and center top of back box
to allow for attachment of back box to mounting surface.
following:
http://lighting.cree.com/warranty
LPN00855X0001A0_A
Document:
Created By:
TMT
3. Pull supply leads from junction box through wall of back box. Attach
back box to mounting surface using hardware (supplied by others)
appropriate for mounting surface.
NOTE: A high grade caulking material, such as silicone rubber,
should be used around perimeter of back box (between back box and
mounting surface) to prevent water leakage into luminaire or junction
box.
4. Replace lens assembly on hinges and re-connect quick-connect
wiring connections.
5. Position dip switches to select desired CCT and wattage. See
Figure 1.
NOTE: Dip switches factory set at highest wattage and 4000K.
6. Make wiring connections per the Electrical Connections section.
7. Swing lens into place. Re-tighten screws that were loosened in Step
1.
8. Supply power to luminaire.
WALL MOUNTED WITH CONDUIT FEED
1. Remove lens assembly by loosening screws on side of frame. Do
not loosen tamper proof screws on hinge side of frame. Swing lens
assembly open,disconnect quick connect wiring connector(s) and lift
lens assembly upward to remove from housing.
2. Drill knockouts in lower two corners and center top of back box to
allow for attachment of back box to mounting surface.
3. Attach back box to mounting surface using hardware (supplied by
others) appropriate for mounting surface.
NOTE: A high grade caulking material, such as silicone rubber,
should be used around perimeter of back box (between back box and
mounting surface) to prevent water entry.
4. Remove appropriate threaded plugs on sides of fixture and route
electrical conduit to the holes desired. Feed the supply leads through
the conduit and into the back box.
NOTE: Use of teflon tape on the conduit threads will ensure a
watertight seal.
5. Replace lens assembly on hinges and re-connect quick-connect
wiring connections.
6. Position dip switches to select desired CCT and wattage. See
Figure 1.
NOTE: Dip switches factory set at highest wattage and 4000K.
7. Make wiring connections per the Electrical Connections section.
8. Swing lens into place. Re-tighten screws that were loosened in Step
1.
9. Supply power to luminaire.

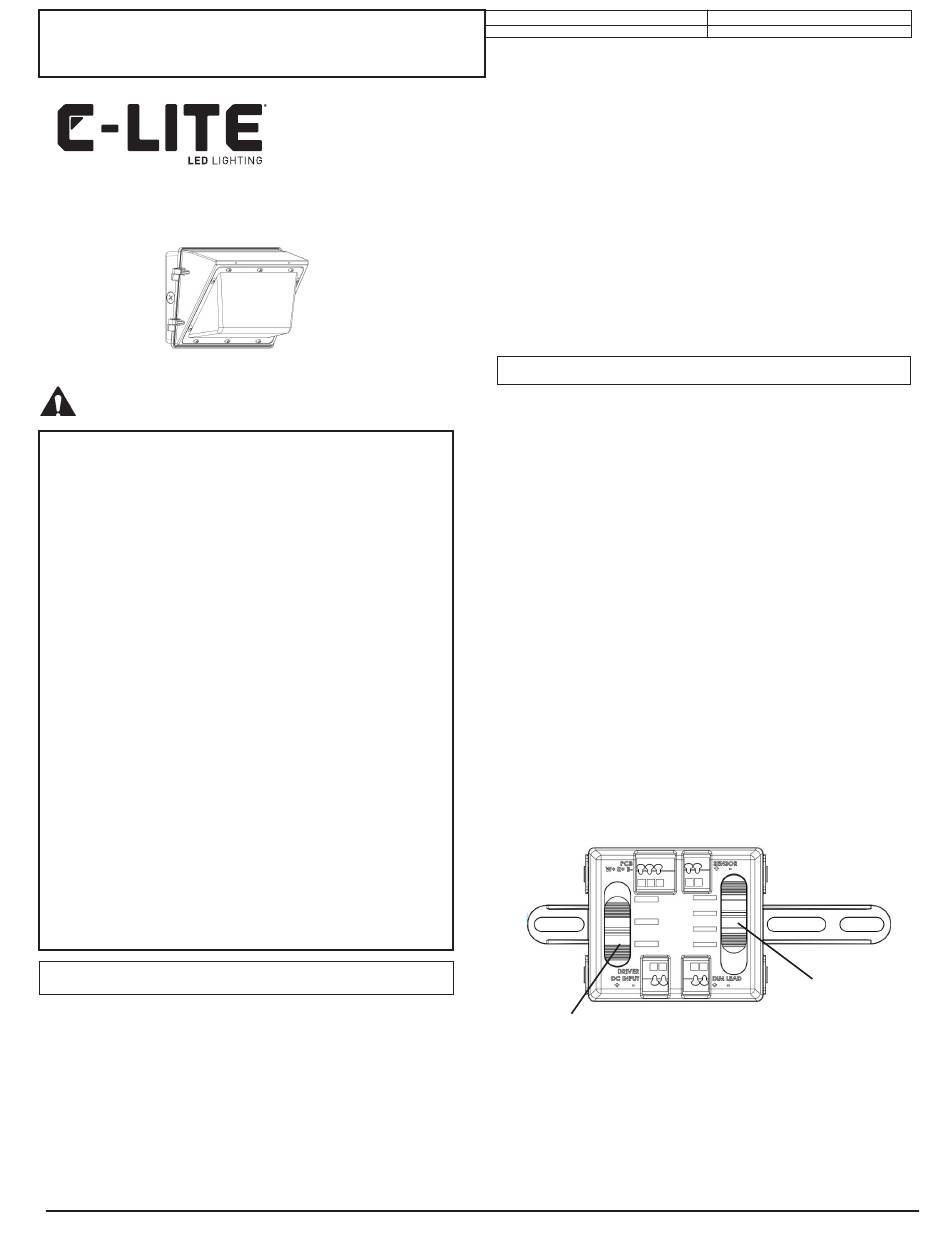

FIGURE 1
CCT Selection
| 1-800-236-6800
04-21-2021
Date
Wattage Selection
