INSTALLATION INSTRUCTIONS
C-AR-A-PTA SERIES
CAUTIONS
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety
precautions should always be followed including the
READ AND FOLLOW ALL
SAFETY INSTRUCTIONS
1. DANGER- Risk of shock- Disconnect power before installation.
DANGER – Risque de choc – Couper l'alimentation avant
l'installation.
2. This luminaire must be installed in accordance with the NEC
or your local electrical code. If you are not familiar with these
codes and requirements, consult a qualified electrician.
Ce produit doit être installé conformément à NEC ou votre code
électrique local. Si vous n'êtes pas familier avec ces codes et
ces exigences, veuillez contacter un électricien qualifié.
3. SUITABLE FOR WET LOCATIONS.
CONVIENT AUX EMPLACEMENTS MOUILLES.
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE
INSTALLATION
1. Remove the (8) set screws located on the base and remove (4)
screws on top of the wiring cover. Remove the wiring cover. See
Figure 1.
2. Pull the supply wires through the center of the wiring chamber and
slide the fixture over the pole. See Figure 2.
3. Tighten the (8) set screws to the pole.
NOTE: Ensure that the base of the fixture is completely seated
on the pole, ensure that no wires are pinched, and make sure the
gasket is properly seated before tightening screws.
4. Make the wiring connections in the fixture wiring chamber as
detailed in the Fixture Wiring section of the installation instructions.
5. Attach the wiring chamber cover using the (4) screws removed in
step 1. See Figure 3.
NOTE: Ensure that no wires are pinched, and the gasket is
properly seated before tightening screws.
COLOR TEMPERATURE SETTINGS
NOTE: Factory settings is 4000K:
1. Remove the conduit plug on the side of the fixtures housing using
a large straight blade screwdriver. See Figure 4 on the next page.
2. Locate the selector switches under the cap and select color
temperature by sliding the dip switches to the desired values.
3. Replace the conduit plug and retighten using a large straight blade
screwdriver.
following:
www.e-conolight.com
Document:
Created By:
PHOTOCONTROL SETTINGS
1. Remove the clear conduit plug on the side of the fixture housing
using a straight blade screwdriver. See Figure 5 on the next
page.
2. Turn on/off the photocontrol by adjusting the dip switch.
3. Securely tighten the clear conduit plug to prevent water ingress.

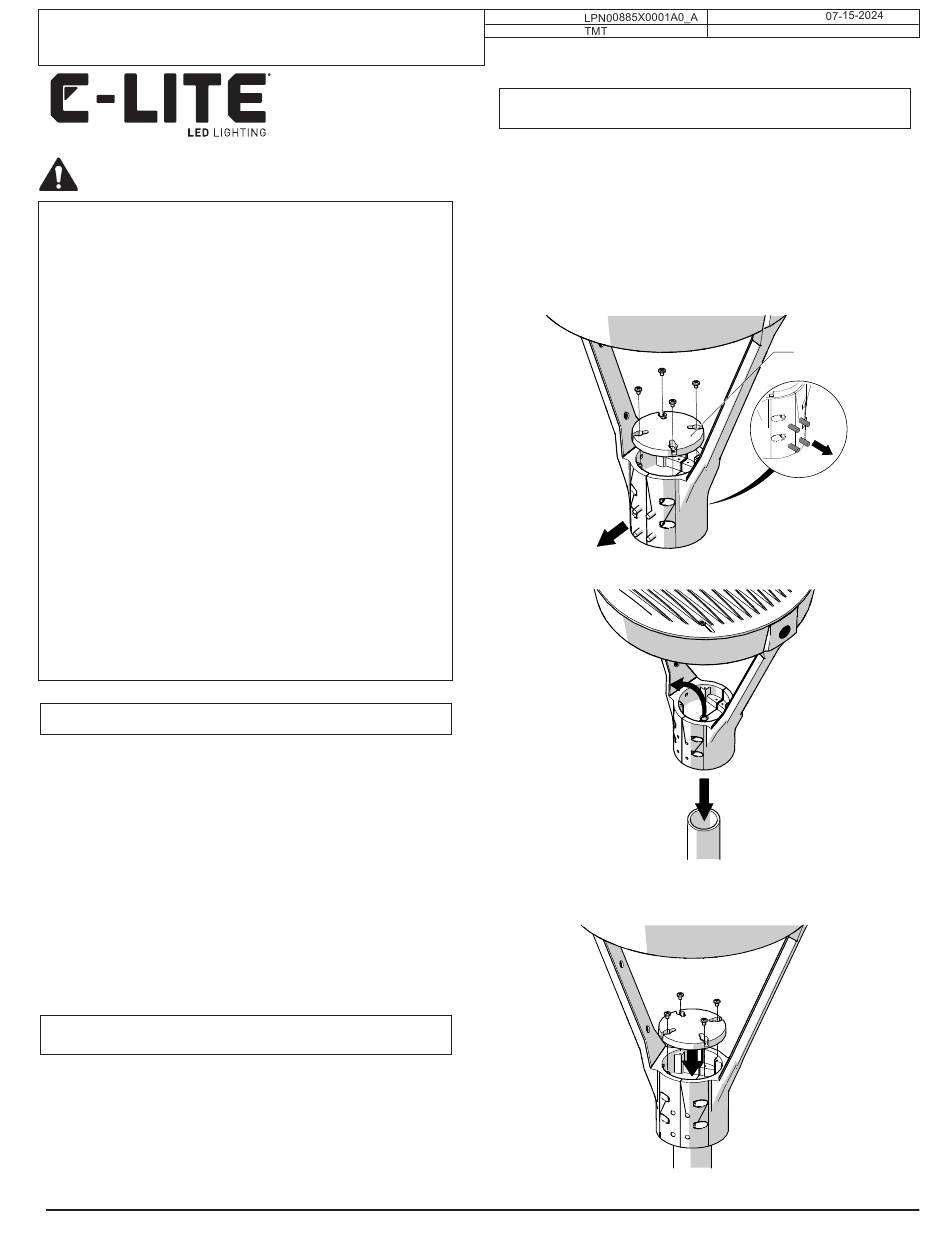

FIGURE 1
FIGURE 2
FIGURE 3
| 888.243.9445 | FAX: 262.504.5409
Date
Wiring Cover
