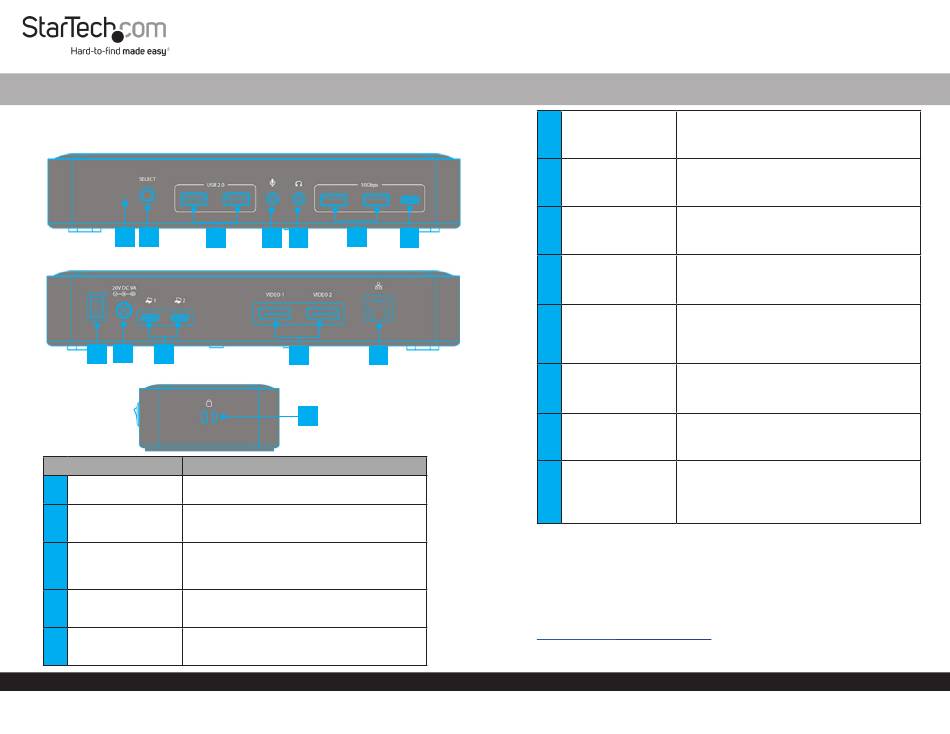

StarTech.com 129N-USBC-KVM-DOCK Quick Start Manual

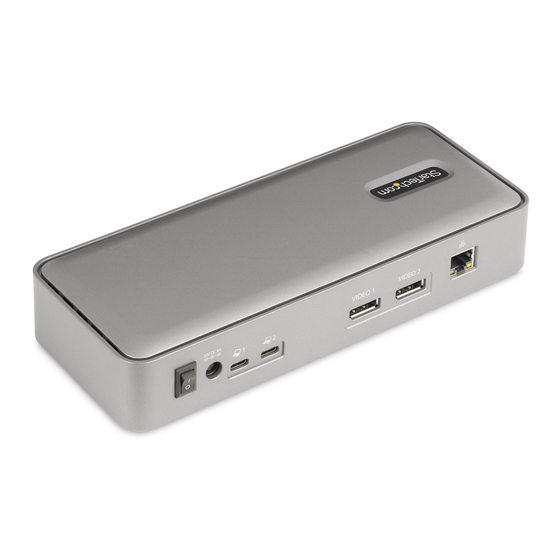

USB-C Dual Monitor KVM Dock - 4x USB-A /1x USB-C (10Gbps) - GbE - 90W PD
Product ID
129N-USBC-KVM-DOCK/129UE-USBC-KVM-DOCK
(Side A)
1
2
(Side B)
11
12 10
(Side C)
Component
• Illuminates White When the Dock is Connected to a
1 Power LED
Power Source and Powered On
Port Selection
2
• Press to Select PC 1 or PC 2
Button
• Connect USB-A Peripherals
3
USB-A Data Ports
• USB 2.0 (480Mbps)
• Supports 5V/0.5A (2.5W) Power
• Connect a Microphone
4 Microphone Jack
• 2 Position Audio Jack for Mono Input
• Connect an Audio Device
5 3.5mm Audio Port
• 3 Position Audio Jack for Stereo Output
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
6
3 4 5
9 8
13
Function
6 USB-A Data Ports
7
USB-C Data Port
Gigabit Ethernet
8
Port
7
DisplayPort Video
9
Ports
USB-C Host Ports
10
(PC 1 & PC 2)
11 DC 20V Port
12
Power Switch
13
Lock Slots
Requirements
2x Computers
•
USB-C Port
•
For the latest drivers, manuals, product information, technical specifications, and declarations of
conformance, please visit:
www.StarTech.com/129N-USBC-KVM-DOCK
Quick-Start Guide
• Connect USB-A Peripherals
• USB 3.2 Gen 2 (10Gbps)
• Supports 5V/0.9A (4.5W) Power
• Connect USB-C Peripherals
• USB 3.2 Gen 2 (10Gbps)
• Supports 5V/0.9A (4.5W) Power
• Connect the Dock to a Network Device, using a
Network Cable
• 10/100/1000 Mbps
• Connect DisplayPort Displays
• DisplayPort 1.4
• Up to 4K (4096x2160) 60Hz
• Connect to a USB-C Port on Your Host Computers
as PC 1 & PC 2
• USB 3.2 Gen 2 (10Gbps)
• Power Delivery 3.0 Specification
• Connect the Dock to a Power Source, using the
Universal Power Adapter
• Powers the Docking Station On or Off
• Secure the Docking Station to a stationary object
Manual Revision: January 19, 2023 3:27 PM
