Summary of Contents for AnyTone AT-D269
- Page 1 A1.220601...

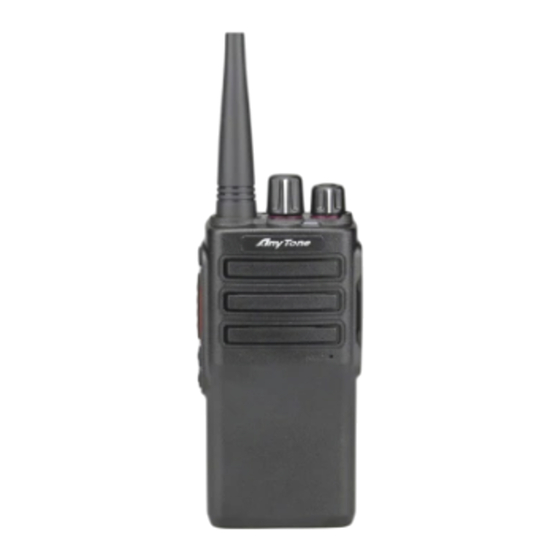

- Page 2 AT-D269 Digital DMR and Analog VHF/UHF Two Way Radio Operating Manual DIGITAL MOBILE RADIO ASSOCIATION...
- Page 4 It offers great stability, and reliability, together with long distance communication as well as fashionable design and compact exterior lines. AT-D269 has Recording, Voice Message, Digital Encryption, Emergency Alarm, Man Down Alarm, Work Alone, Vibration, Analog DTMF, 2TONE, 5TONE, CTCSS/DCS encode/decode functions.
-
Page 5: Standard Accessories
Belt Clip AC Adaptor USB Cable Hand Strap Instruction Manual Charger Indication STATUS Self-Examine Red (for 1 second) No Battery Green Charge Normally Fully Charged Green Trouble Red and Green light twinkles AT-D269 Digital DMR and Analog VHF/UHF Two Way Radio... -
Page 6: Getting Acquainted
2. Red llight on: Transmit 3. Green light flashes: Scan mode 4.Green light on: Receive matched carrier. 5. Blue LED on: Receive matching digital signal. 6. Purple light on: Programming start. AT-D269 Digital DMR and Analog VHF/UHF Two Way Radio... -
Page 7: Basic Operations
(2) In the receiving state, the light blue LED indicator will light up. (3) When the transmitter ends the call, press and hold the [PTT] key, the AT-D269 Digital DMR and Analog VHF/UHF Two Way Radio... -
Page 8: Make A Call
Press and hold the [Top] key to activate the alarm function, and press this key in the alarm state to exit the alarm function. Note:Combined with the emergency alarm setting of PC software, a variety of alarm modes can be realized. AT-D269 Digital DMR and Analog VHF/UHF Two Way Radio... -
Page 9: Mandown Alarm
Note: If the GPS positioning is successful, the GPS positioning information can be sent to the designated contact or group when the alarm or r Mandown alarm is activated. (GPS is an optional function). AT-D269 Digital DMR and Analog VHF/UHF Two Way Radio... -
Page 10: Programmable Functions
Note: This function is only valid in analog mode, when frequency revers function is on. The TX frequency and RX frequency will reversed, the CTCSS/DCS will also reversed. AT-D269 Digital DMR and Analog VHF/UHF Two Way Radio... - Page 11 Note: The standard version support 30 hours voice recording for DMR channels. Optional 500 hours or 1000 hours of digital and analog call recording. Monitor 4.11 In standby, press the key programmed as "Monitor" function, the radio will AT-D269 Digital DMR and Analog VHF/UHF Two Way Radio...
- Page 12 When the user is listening to the playback voice, press the PTT key to send the current voice to the contact or group called by default on the current channel. If you want to delete the AT-D269 Digital DMR and Analog VHF/UHF Two Way Radio...
- Page 13 GPS report time, ID, call type, channel must programmed by PC software. Note: This function valid only for DMR channels. Status Info Report 4.23 In standby, press the key programmed as "Status Info Report" to turn on or turn off Status Report. AT-D269 Digital DMR and Analog VHF/UHF Two Way Radio...
- Page 14 Hold PTT and PF1 key while power on radio, release this 2 keys when the light blue LED indicator turn on, power off and power on radio, the radio already resume default value. AT-D269 Digital DMR and Analog VHF/UHF Two Way Radio...
-
Page 15: Technical Specifications
5/2.5/1W (10W optional) Modulation limit ±5.0KHz@25KHz ±2.5KHz@12.5KHz Adjacent Channel Power ≥70dB ≥60dB Hum & Noise ≥40dB ≥36dB Spurious Emission ≤-36dBm ≤-36dBm 12.5KHz（data）7K60FXD 4FSK Digital Modulation 12.5KHz（data+voice）7K60FXE Audio Distortion ≤5% ≤3% Error rate AT-D269 Digital DMR and Analog VHF/UHF Two Way Radio...
