Kidde DC-9103E-KID Quick Start Manual

Conventional Rate
of Rise and Fixed
Temperature Heat
Detector
DC-9103E-KID
Overview
DC-9103E-KID is the new Generation of Conventional Rate
of Rise and Fixed Temperature Heat from KIDDE. The DC
series Detectors have a microprocessor and use Advanced
Algorithms to reliably Detect Fire alarm conditions.
By Default, the DC-9103E-KID is supplied as an A1R class
Heat Detector. Using the Handheld Programmer, the
installer can easily program the device as an A2S or BS
Detector without the need to carry 3 different heat detectors
to a site..
Connection and Wiring

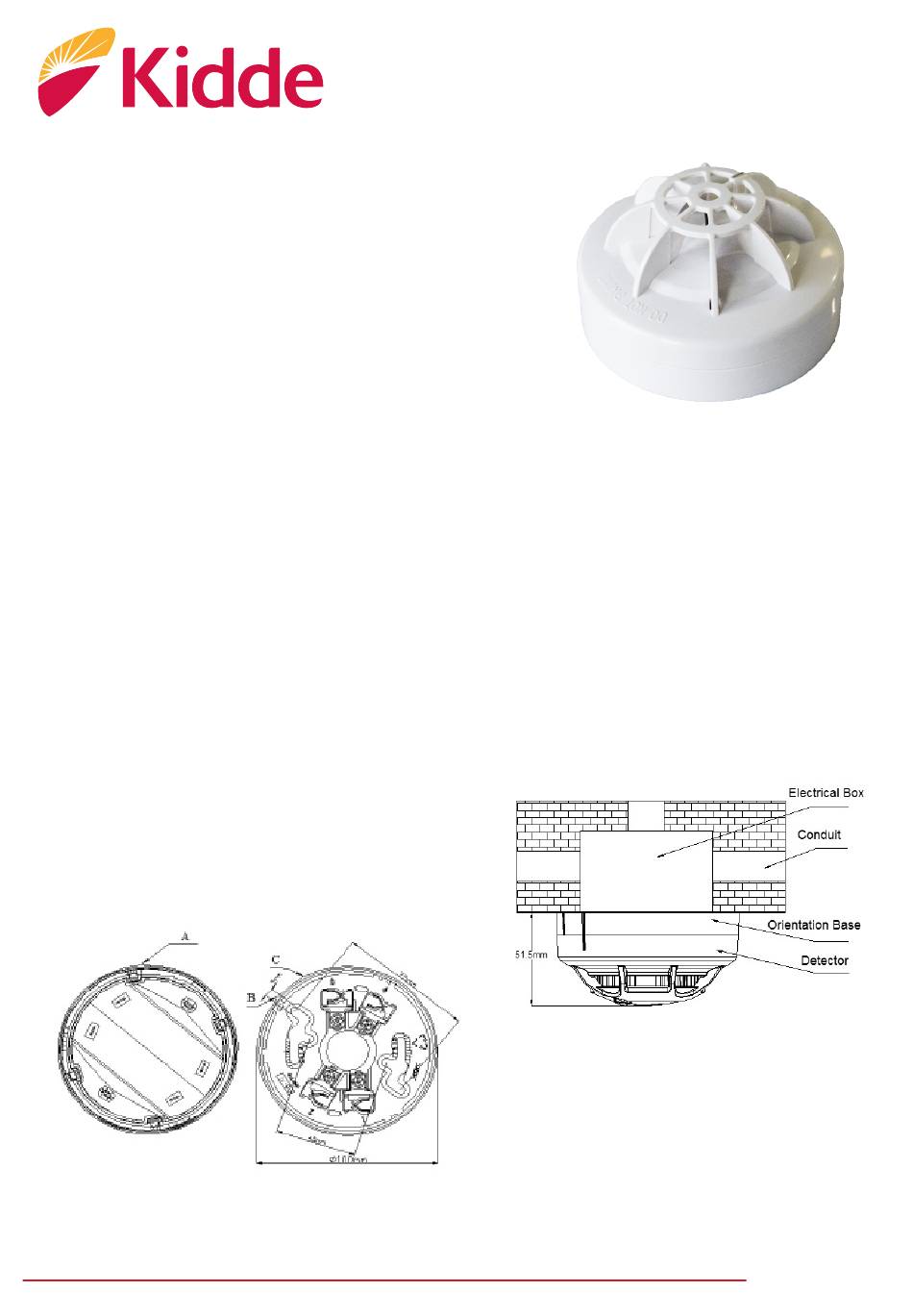

The detector bottom is shown in Fig. 1 and the base in Fig. 2
There are four teminals with numbers on the base
1: Detection zone positive IN
2: Detection zone positive OUT
3: Detection zone negative IN and OUT
2: Positive Terminal of remote indicator
4: Negative terinal of remote indicator
FIGURE 1
Fix the base with two taping screws. Then align A (Fig. 1)
with the bottom of the detector to B (Fig. 2) of the base,
and rotate the detector clockwise to mark C.
Page 1 of 2
Standard Features
Installation
Mounting of the detector is shown in Fig. 3
FIGURE 2
• 3 classes programmable.
• Magnetic test function.
• Output terminal for remote indicator.
• Complying with AS7240.5
FIGURE 3
DC-9103E-KID
DATA SHEET
Issue 1.0
