Kidde Excellence 3000 Series Installation Sheet

Excellence Series Intelligent Addressable Class
A/B Heat Detector Installation Sheet
EN DE ES FR IT NL PL PT SV
1
EN: Installation Sheet
Figures

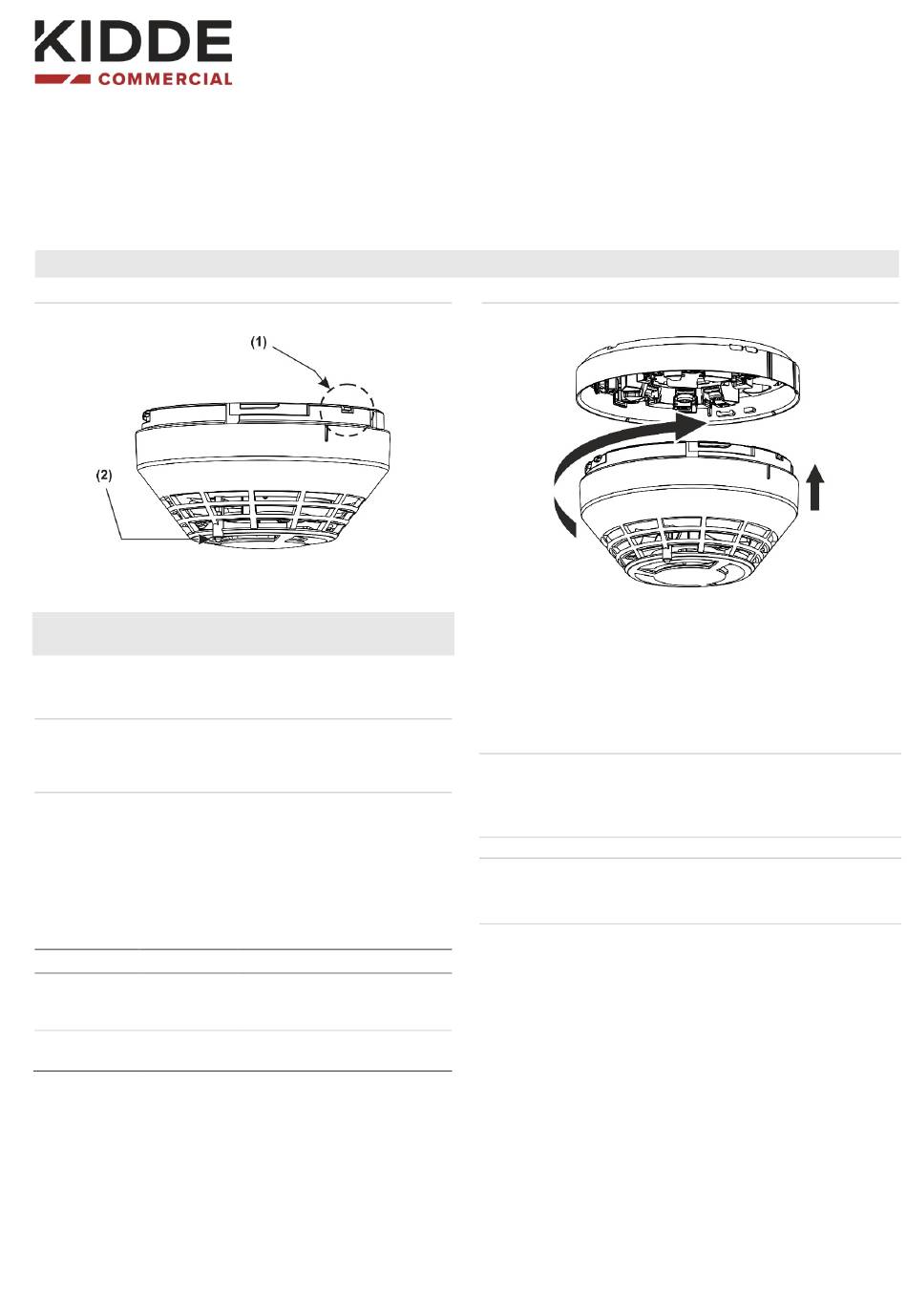

Figure 1: Locking tab and status LED
(1) Locking tab
(2) Status LED
Figure 2: Inserting the detector head into the mounting base
Description
This installation sheet includes information on the 3000 Series
Intelligent Addressable Class A/B Heat Detectors shown in the
table below.
Model Device type
KE-DT3101W- HDni
HAB
KE-DT3001W- HDn
HAB
The detectors use a fixed temperature/rate-of-rise sensor to
detect heat.
The detectors determine whether to signal a fire alarm
condition by monitoring the temperature of the surrounding air
and analysing the data to determine whether to initiate an
alarm.
© 2023 Carrier. All rights reserved.
Description
Intelligent addressable class A/B
heat detector with integrated short
circuit isolator (white)
Intelligent addressable class A/B
heat detector (white)
2
All 3000 Series detectors support the Kidde Excellence
protocol and are compatible for use with 2X-A Series fire alarm
control panels with firmware version 5.0 or later. The detectors
are backwards compatible with 2000 Series devices.
Installation
WARNING: Electrocution hazard. To avoid personal injury or
death from electrocution, remove all sources of power and
allow stored energy to discharge before installing or removing
equipment.
Caution: For general guidelines on system planning, design,
installation, commissioning, use and maintenance, refer to the
EN 54-14 standard and local regulations.
Install and wire the mounting base, as described in the
installation sheet supplied with the base.
Installing the detector head
Insert the detector head into the mounting base and rotate it
clockwise until it snaps into the locked position (see Figure 2).
The detector may be locked into the mounting base if required.
To do this, remove the locking tab before installation (see
Figure 1).
To remove a locked detector:
1. Insert a small screwdriver into the locking tab slot
(Figure 1).
2. Press and rotate the detector anticlockwise.
1 / 23 P/N 3102986-ML • REV 001 • ISS 29NOV23
