V-PHS Photoelectric and
Fixed-Temperature Heat
Detector Installation Sheet
Description
The V-PHS Photoelectric and Fixed-Temperature Heat Detector uses
an optical sensing chamber to detect smoke and a fixed-temperature
heat sensor to monitor the temperature of the air in its surroundings to
detect heat from fire. The detector analyzes the sensor data to
determine whether to initiate an alarm.
The detector is capable of performing comprehensive self-diagnostics
and storing the results. It continuously monitors changes in sensitivity
due to the environment (e.g., dirt, smoke, temperature, humidity),
notifies the control panel of its condition, and issues a dirty sensor
warning when it reaches its preset limit. This notifies the operator of
the need for service while the detector is still operating.
LED operation
The detector provides a bicolor LED that shows its status.
Normal: Green LED flashes
Alarm/active: Red LED flashes
Electronic addressing
The control panel automatically assigns addresses to the detectors.
Use a laptop computer to address custom addresses to the detectors.
No addressing switches are used.
Installation
Install and wire this device in accordance with applicable national and
local codes, ordinances, and regulations.
Refer to Vigilant Detector Application Bulletin (P/N 3101109-EN) for
additional information on detector placement and spacing.
WARNINGS
Risk of system failure. This detector does not operate without
electrical power. As fires frequently cause power interruption,
discuss further safeguards with your local fire protection specialist.
Risk of system failure. This detector does not sense fires that start
in areas where heat cannot reach the detector. Heat from fires in
walls, roofs, or on the opposite side of closed doors may not reach
the detector.
Notes
Photoelectric detectors have a wide range of sensing capabilities,
and are best suited for detecting slow, smoldering fires. The heat
sensor in this device provides a source of supplemental
P/N 3101071-EN • REV 05 • ISS 24FEB16
information to that provided by the photoelectric smoke sensor.
The heat sensor by itself does not provide life safety protection.
Do not use a detector guard with this detector unless the
combination has been evaluated and found suitable.
To ensure proper operation, schedule maintenance (regular or
selected) in accordance with the requirements of the authority
having jurisdiction. Refer to NFPA 72 and CAN/ULC-S536.
To ensure proper operation, store the detector within the
recommended temperature ranges. Allow the detector to stabilize
to room temperature before applying power.
Keep the dust cover (supplied) on the detector during installation
and remove it prior to commissioning and service. The dust cover
is not a substitute for removing the detector during new
construction or heavy remodeling.
To install the detector:
1. Install and wire the detector base using the installation sheet
supplied with the detector base.
2. Connect the detector to the base by rotating the detector clockwise
until it snaps into the locked position.
To remove the head turn it counterclockwise.
3. If the head must lock to the base, break away the locking tab using
a pair of pliers. See Figure 1.
To remove the detector head after breaking away the locking tab,
insert a small screwdriver into the slot on the side of the base and
press in while simultaneously turning the detector head
counterclockwise.
4. Remove the serial number label from the detector and attach it to
the project documentation.

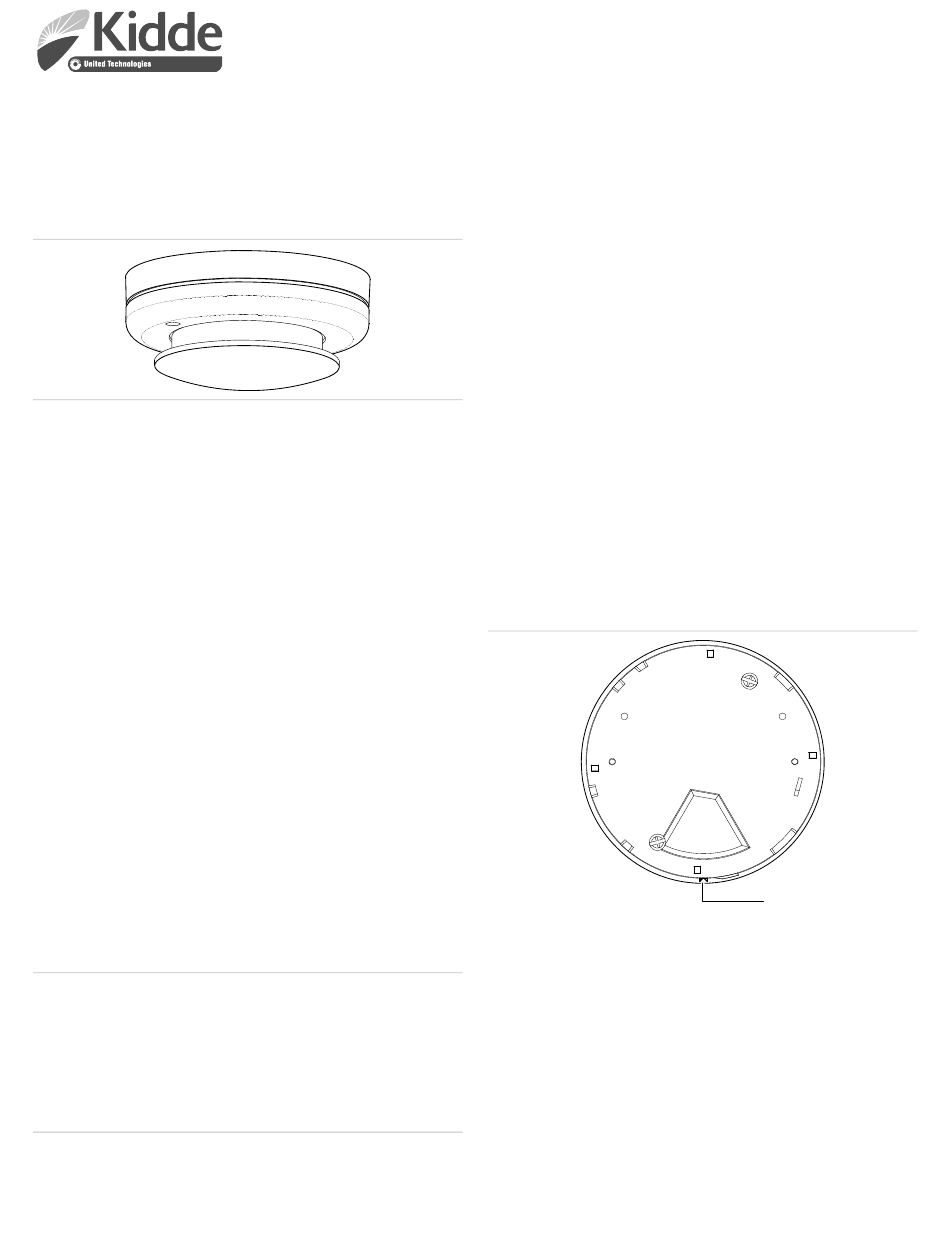

Figure 1: Locking tab
Maintenance
When cleaning is necessary, the sensing chamber of the detector
easily unsnaps for field cleaning and service.
Only the smoke element of the detector requires cleaning.
Note:
To clean the detector:
1. Remove the detector from the base.
2. Insert a screwdriver in the small slot where the detector cap
connects to the detector body. See Figure 2.
3. Pry the detector cap off the detector body.
4. Squeeze the optical block chamber where the two arrows point,
labeled "squeeze here."
(1)
