Kidde KIR-HD Installation Sheet

KIR-HD Intelligent Fixed-
Temperature and Rate-of-Rise
Heat Detector Installation
Sheet
Description
The model KIR-HD Intelligent Fixed-Temperature and Rate-of-Rise
Heat Detector that contains a fixed-temperature heat sensor to detect
heat from fire. The heat sensor monitors the temperature of the air in
its surroundings and the detector analyzes the data to determine
whether to initiate an alarm.
LED indicator. The LED indicator (see Figure 1) displays the following
states:
•
Normal: Green LED indicator flashes, no action
•
Alarm/active: Red LED indicator flashes, evacuate the area

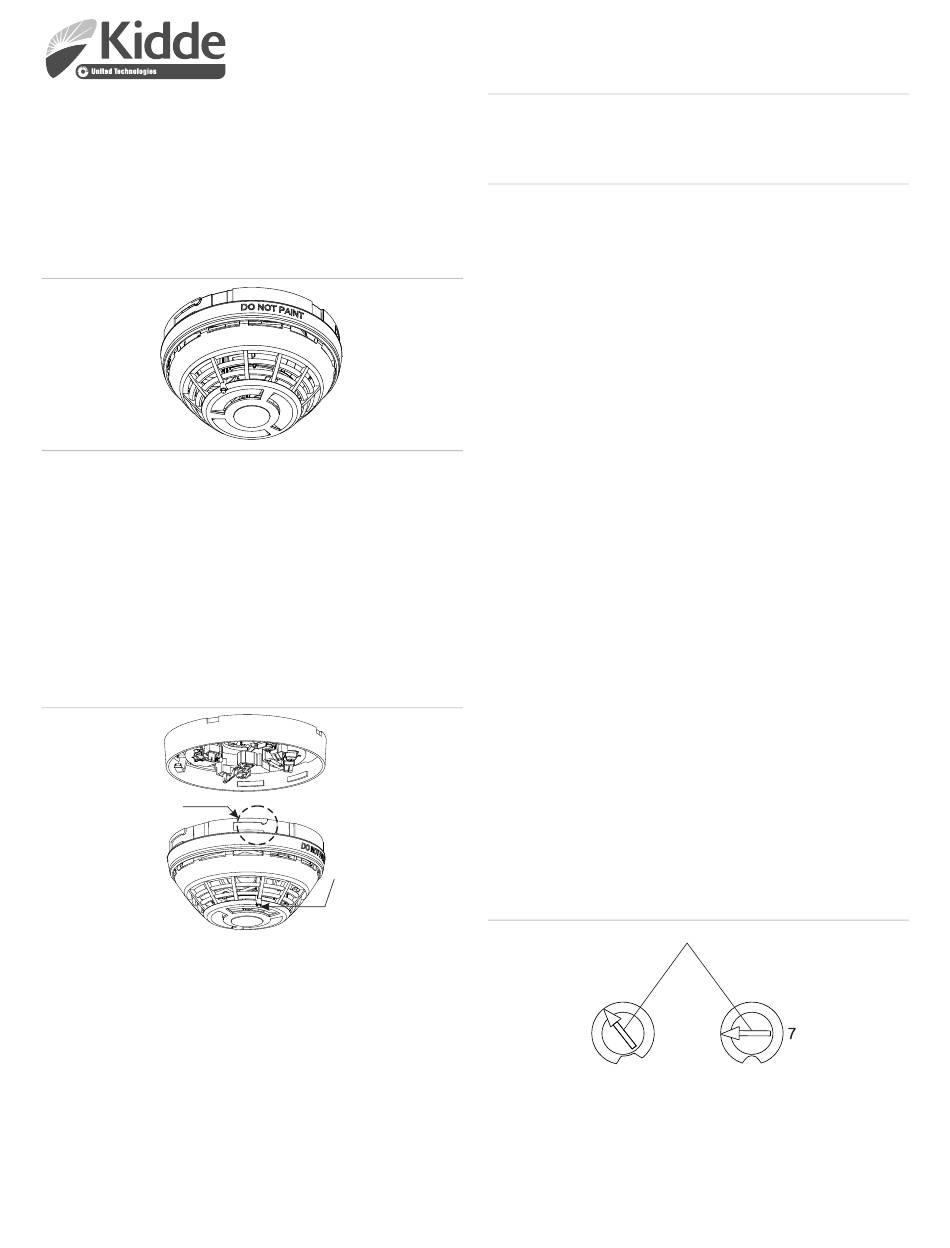

Figure 1: KIR-HD features
(1)
(1) Self-locking tab
(2) LED indicator
© 2017 United Technologies Corporation
Installation
Install and wire this device in accordance with applicable national and
local codes, ordinances, and regulations.
WARNINGS
•
Note:
•
•
•
•
•
•
•
To install the detector:
1. Install and wire the base, as described on the installation sheet
2. Set the detector address. Refer to the panel technical reference
3. Attach the detector to the base by rotating the detector clockwise
(2)
Figure 2: Setting detector address (address 52 shown)
(1) Insert a screwdriver here to set the address
1 / 2
Independent studies indicate that heat detectors should only be
used when property protection alone is involved. Never rely on
heat detectors as the sole means of fire protection.
To ensure proper operation, store the detector within the
recommended ranges. Allow the detector to stabilize to room
temperature before applying power.
The dust cover (supplied) must remain on the detector during
installation and be removed prior to commissioning and service.
The dust cover is not a substitute for removing the detector during
new construction or heavy remodeling.
This detector does not operate without electrical power. As fires
frequently cause power interruption, discuss further safeguards
with the local fire protection specialist.
This detector does not sense fires in areas where heat cannot
reach the detector. Heat from fires in walls, roofs, or on the
opposite side of closed doors may not reach the detector.
This detector by itself does not provide smoke or fire protection.
Use this detector with ionization or photoelectric smoke detectors,
or both.
This detector does not detect oxygen levels, smoke, toxic gases,
or flames. Use this device as part of a broad-based life safety
program, which includes a variety of information sources pertaining
to heat and smoke levels, extinguishment systems, visible and
audible devices, and other safety measures.
In Canada, install according to CAN/ULC-S524 Standard for the
Installation of Fire Alarm Systems, CSA C22.1 Canadian Electrical
Code Part 1, and the local authority having jurisdiction.
supplied with the base.
manual for a list of valid addresses. Use a screwdriver to adjust
the two rotary switches on the back of the detector.
(See Figure 2.) Set the left rotary switch (0 through 12) for the 10s
and 100s digit and the right rotary switch for the 0 through 9 digit.
until it snaps into the locked position.
(1)
5 6 7 8
4
9
3
0 1
2
11
1
1 2
0
TENS
P/N 3102529-EN • REV 001 • ISS 15AUG17
4 5
3
6
2
1 8
0 9
ONES
