PASCO PS-3234 Product Manual

Introduction

The Wireless Spirometer is designed for use with PASCO
Capstone or SPARKvue data collection software. The sensor
allows you to perform respiratory measurements, such as flow
rate, lung volume, and pressure.
NOTE:
• This is NOT a medical device. It is
designed for educational use only and
should not be used in life support, patient
diagnosis, or any other medical process. It
is also not intended for use in graduate
research or industry, including industrial
control or any type of industrial testing.
• Read all instructions before using the
product. Students should be supervised by
their instructors. When using the product,
follow the instructions in this manual and all
applicable local safety guidelines.
• Do not share mouthpieces or filters. The
mouthpieces and filters are intended for a
single occasion, which may include several
tests with the same individual.
CAUTION: In medical settings, pulmonary
function tests are performed under the
supervision of a medical professional. When
using a spirometer without medical supervision,
use extra caution. A person with a medical
condition that may be affected by a pulmonary
function test should NOT use the Wireless
Spirometer. Immediately end use if the subject
experiences breathing difficulty or discomfort.

Equipment

Included equipment:
• Wireless Spirometer
• 3× mouthpieces
• 3× mouthpiece filters
• USB cable

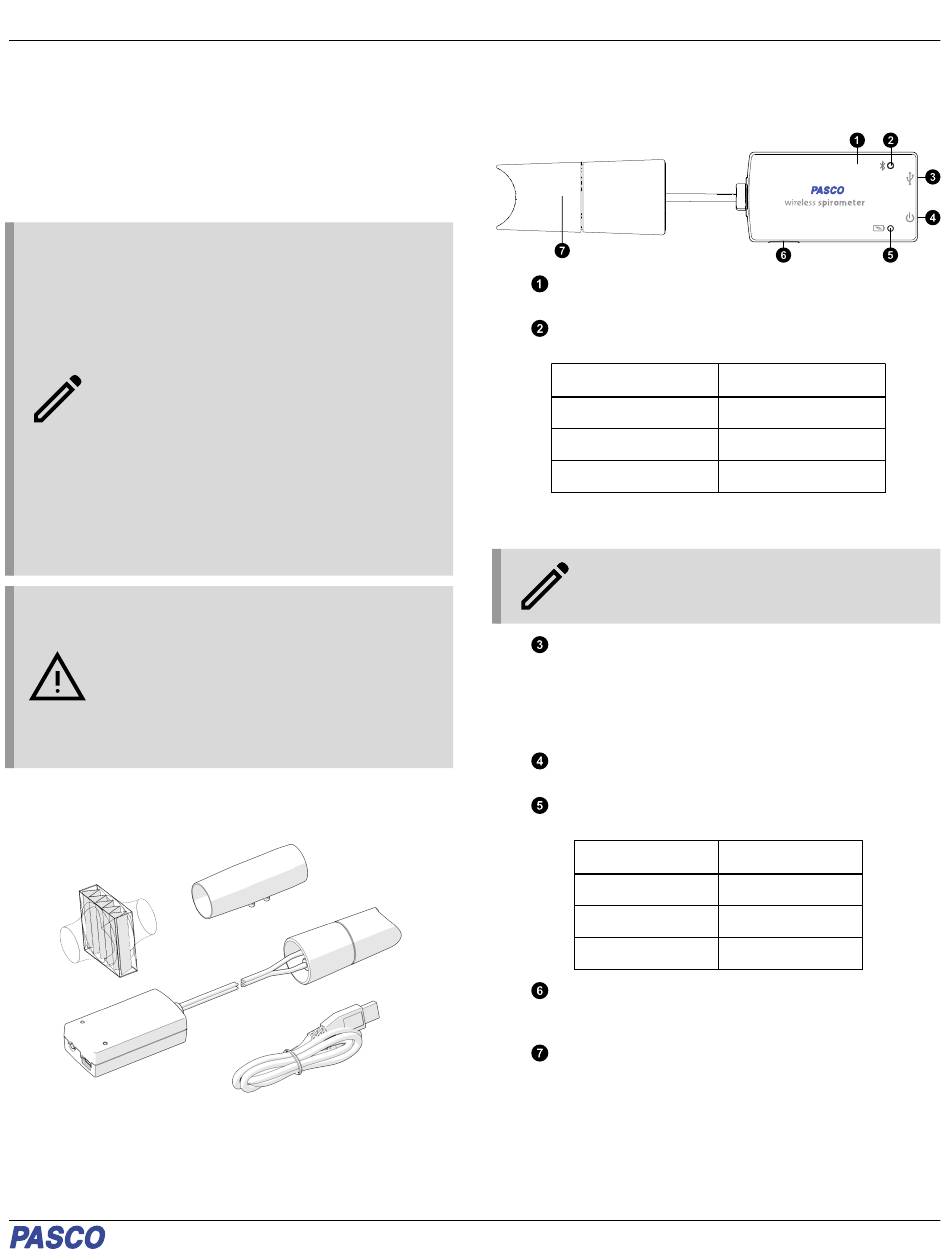

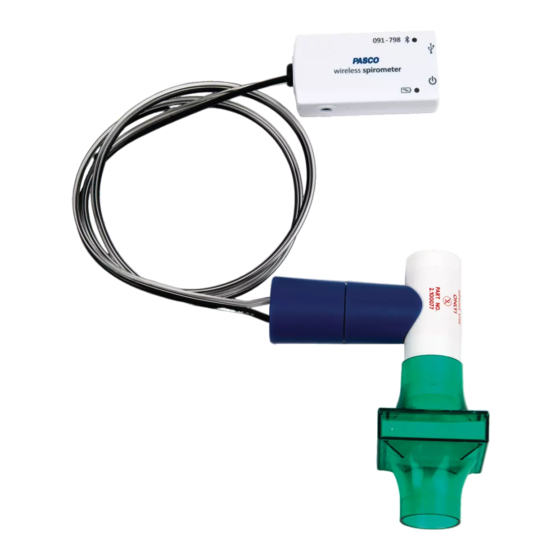

Wireless Spirometer
(PS-3234)
Features:
Device ID
Use to identify the sensor when connecting via Bluetooth.
Bluetooth Status LED
Indicates the status of the Bluetooth connection.
Bluetooth LED
Red blink
Green blink
Yellow blink
For information on remote data logging, see the PASCO
Capstone or SPARKvue online help.
NOTE: The Bluetooth Status LED is disabled
when the sensor is connected to a computer via
the micro USB cable.
USB port
Use with the USB cable to connect the sensor to a USB
wall charger. The port can also be used to connect the
sensor to the software via the USB port of a computer or
mobile device. Note that this connection method is not
supported by iOS devices.
Power button
Press and briefly hold to turn the sensor on or off.
Battery Status LED
Indicates the battery level and current charging status.
Battery LED
Red blink
Yellow ON
Green ON
Threaded hole
Accepts 1/4-20 screws. Use to mount the sensor to a
mounting rod or other similar apparatus.
Handle
Attach the mouthpiece here. Hold the handle upright and
steady while collecting data.
Product Guide | 012-16752B
XXX-XXX
Status
Ready to pair
Connected
Logging data
Status
Low power
Charging
Fully charged
1
