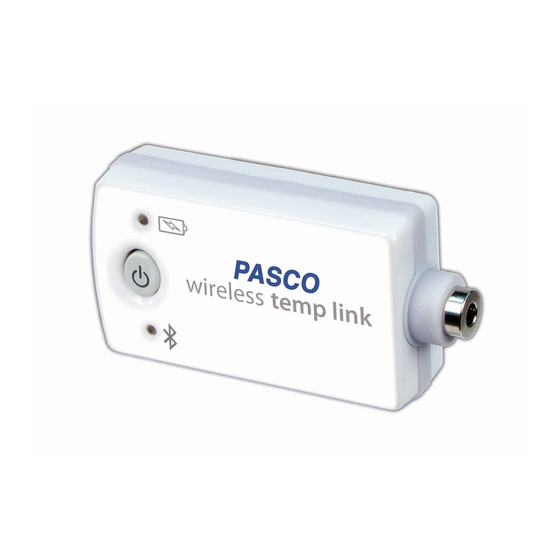

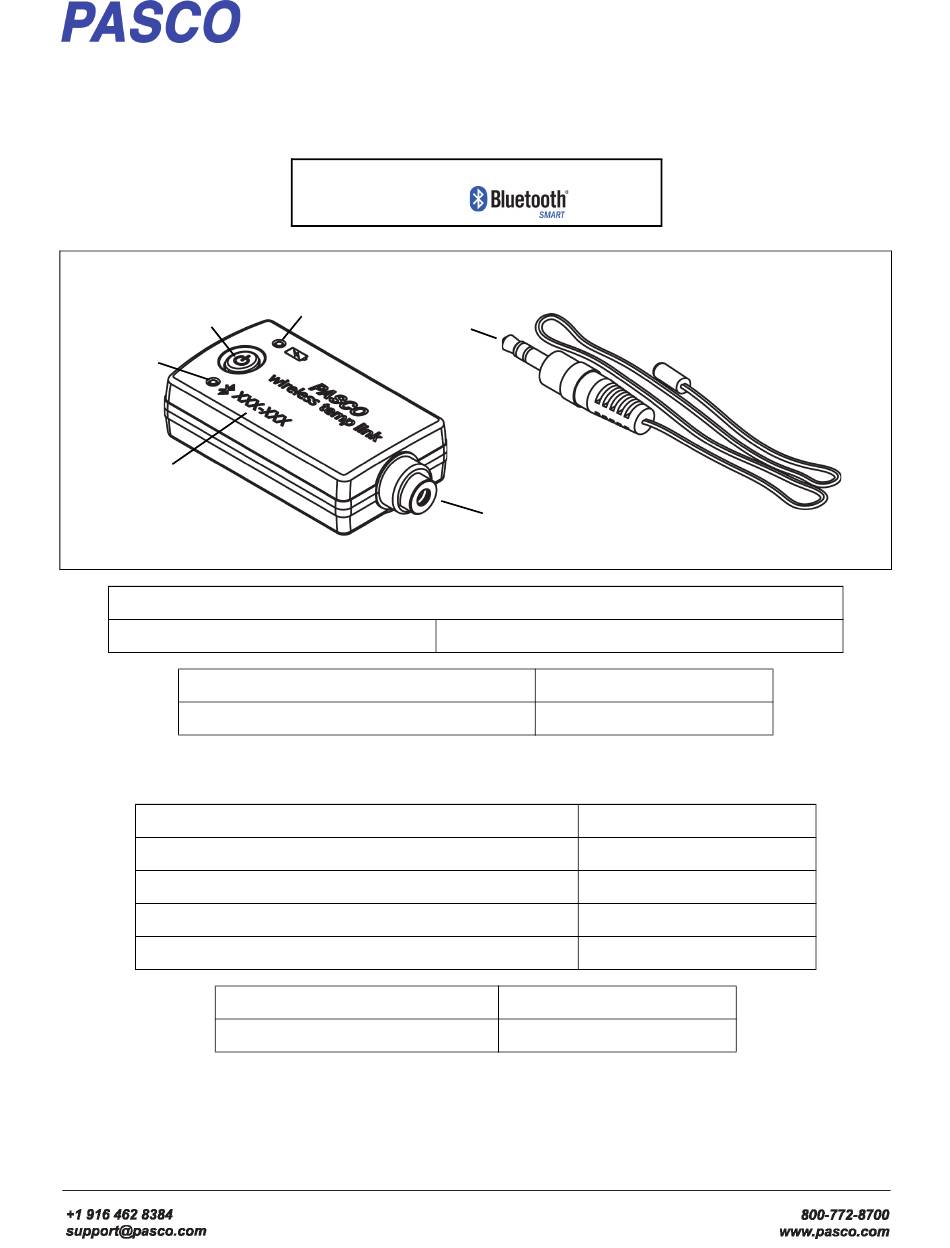

(a) PS-3222 Wireless Temperature Link
Required Item*
PASCO Data Collection Software
*See the PASCO catalog or the PASCO web site www.pasco.com for more information.
Compatible Equipment*
PS-2131 PASPORT Skin/Surface Temperature Probe
PS-2133 Stainless Steel Temperature Probe
TD-8595 Absolute Zero Sphere
TD-8596A Ideal Gas Law Apparatus
Consumable
Coin Cell Battery (CR2032)
Wireless Temperature Link
Power: Replaceable Battery (CR2032)
Connection:
Battery
LED
3.5 mm
Diameter Plug
(a)
Equipment Included
PS-3222
3.5 mm
Diameter Port
(b) PS-2135 Fast Response Temperature Probe
Part Number*
see www.pasco.com
Temperature Range
-35 to +135°C
-35 to +135°C
-35 to +135°C
-35 to +135°C
Product Number*
PS-3204 Pack of 10
Reference Guide
013-16067A
PS-2135 Fast Response
Temperature Probe
(-35 to +135°C)
(b)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS-3222 and is the answer not in the manual?

Questions and answers

Related Manuals for PASCO PS-3222

Summary of Contents for PASCO PS-3222

  • Page 1 (b) PS-2135 Fast Response Temperature Probe Required Item* Part Number* PASCO Data Collection Software see www.pasco.com *See the PASCO catalog or the PASCO web site www.pasco.com for more information. Compatible Equipment* Temperature Range PS-2131 PASPORT Skin/Surface Temperature Probe -35 to +135°C PS-2133 Stainless Steel Temperature Probe -35 to +135°C...
  • Page 2 Chromebook Cover See the PASCO web site at www.pasco.com/software for help in selecting the right PASCO software and to check for the latest versions. Features The Wireless Temperature Link is powered by a replaceable three volt coin cell battery (included) and is well-suited for continuous recording and discrete measurements.

  • Page 3: Software Help

    Help. Copy and paste the address into a web browser program to open the Sparkvue User’s Guide web page (see below). SPARKvue “Help” Window • In PASCO Capstone, select PASCO Capstone Help from the Help menu, or press F1. 013-16067A...
  • Page 4 Wireless Temperature Link Set-up Connect the Sensor Wirelessly to a Device or a Computer via Bluetooth Connect the Sensor in SPARKvue 1. Turn on the sensor and start SPARKvue. Click or Touch “Sensor Data” • The “choose a path” window opens. 2.
  • Page 5 1. Click or touch the “Start” button to begin collecting data. Watch the Graph display to see the data as it is recorded. Connect the Sensor in PASCO Capstone 1. Turn on the sensor and start the software. In PASCO Capstone, click or touch the “Hardware Setup” icon in the Tools palette to open the Hard- ware Setup panel. •...

  • Page 6: Battery Usage

    Logging* *Logging: PASCO wireless sensors can either stream live data to a compatible device or log data (save it to the sensor’s memory). The data can then be uploaded to the device for display and analysis at a later time. Logging capability supports long-term or remote data collection while not connected to the device.
  • Page 7 Battery Compartment Cover. The procedure needs a coin and a CR2032 three volt battery. • (NOTE: This battery is available from PASCO and in electronic and commercial stores.) Remove the Battery Compartment Cover •...

  • Page 8: Technical Support

    Limited Warranty For a description of the product warranty, see the PASCO catalog. Copyright The PASCO scientific Instruction Manual is copyrighted with all rights reserved. Permission is granted to non-profit educational institutions for reproduction of any part of this manual, providing the reproductions are used only in their laboratories and classrooms, and are not sold for profit.

  • Page 9: Appendix A: Bluetooth Compatibility

    All models *The PS-3500 USB Bluetooth 4.0 Adapter, when connected to a USB port, allows up to three Bluetooth SMART devices, such as this PASCO wireless device, to connect to some Windows computers, some Chromebooks, and older Macintosh computers. Note: The PS-3500 USB Bluetooth 4,0 Adapter is the only adapter we can currently recommend.

  • Page 10: Appendix B: Calibration

    2012. The Mac Pro that debuted in December 2013 has Bluetooth SMART support. Exception: Before you upgrade to El Capitan (Mac OS X 10.11.x), if you have a Macintosh with LMP version “0x4” that requires the PS-3500 USB Bluetooth 4.0 Adapter, please contact PASCO Technical Support for further instructions.
  • Page 11 PS-3220 A ppendix B: Calibration 3. In the “Sensor Data Configuration” screen, touch or click the “Graph” in the Templates” part of the screen to open a graph display. Touch or Click Hardware Setup icon 4. Below the Graph, touch or click the “Hardware Setup icon” to open the “Calibrate Sensor: Select Measurement”...
  • Page 12 Theory of Calibration One of the functions of the PASCO Data Collection Software (SPARKvue or PASCO Capstone) is to take the stream of raw data from a sensor and transform it into the calibrated data that you see in the Graph, Table, and other displays.
  • Page 13 PS-3220 A ppendix B: Calibration The function can be represented graphically as a line. Two points, Pt 1 and Pt 2, define the line. In the two-point calibration procedure, each point is reset by associating a known standard value (for instance, the temperature of ice water) with a raw input measurement that the sensor sends out when it is in that standard.
  • Page 14 Wireless Temperature Link Appendix B: Calibration 013-16067A...
