laguna Sheartec:II PXl16 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

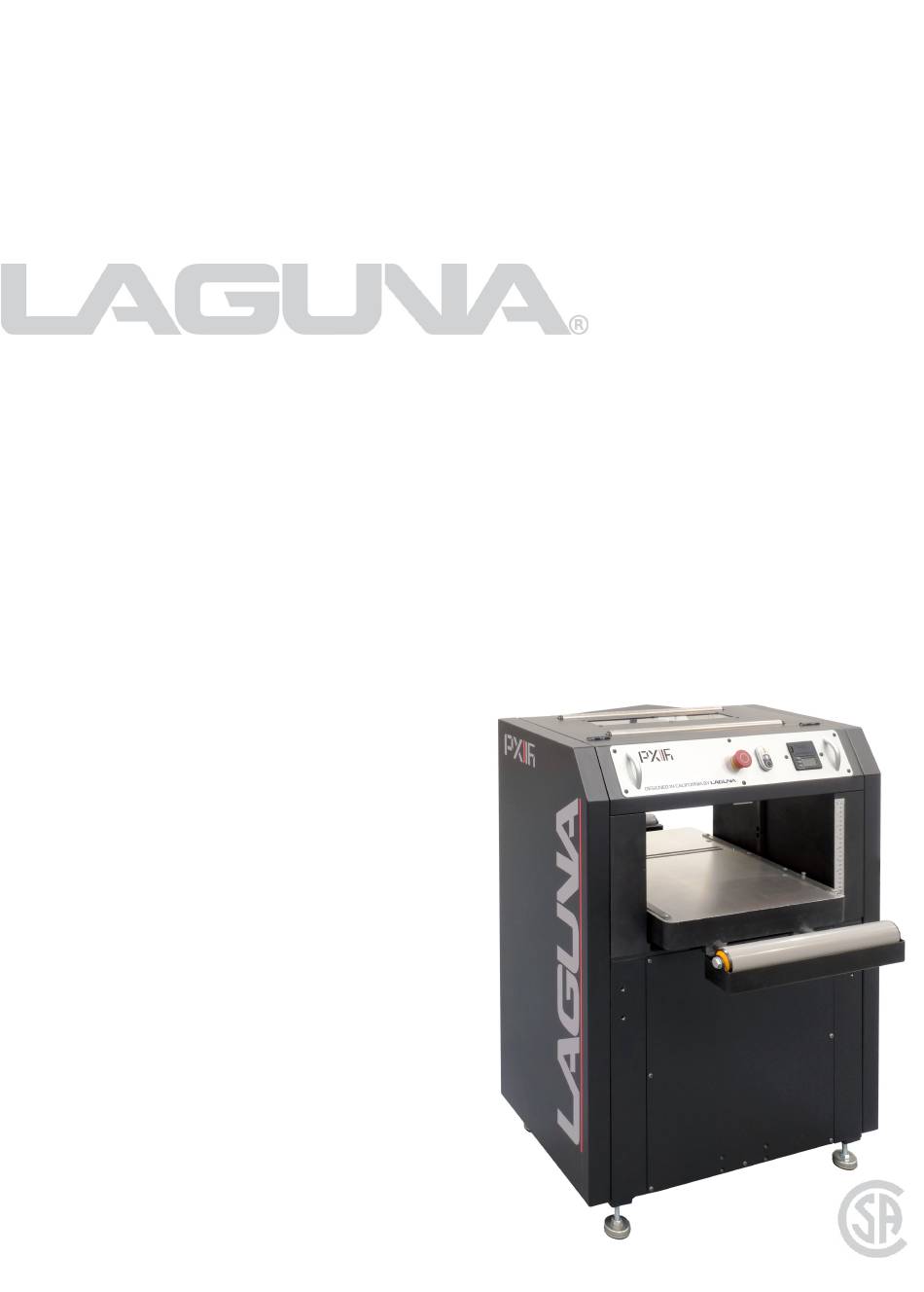

PXl16 Sheartec:II Planer
Owner's Manual
MPLANPX16-0130
3/10/2021

Advertisement

Table of Contents
loading

Related Manuals for laguna Sheartec:II PXl16

Summary of Contents for laguna Sheartec:II PXl16

  • Page 1 PXl16 Sheartec:II Planer Owner's Manual MPLANPX16-0130 3/10/2021...
  • Page 2 For immediate service on any Laguna Tools products: +1 (949) 474-1200 customerservice@lagunatools.com Laguna Tools, Inc. LAGUNA® and the LAGUNA Logo® are the registered trademarks of Laguna Tools, Inc. All rights reserved. 04/01/2019 LAGUNA AMERICAN HEADQUARTERS Texas: 744 Refuge Way Suite 200, Grand Prairie, Texas 75050, U.S.A. Phone: +1-800-332-4094 Huntington Beach: 7291 Heil Ave Huntington Beach, CA 92647, U.S.A.

  • Page 3: Table Of Contents

    CONTENTS PXl16 Sheartec:II Planer Safety ............4 Electrical Safety ..........9 Specifications ..........13 Machine Overview ......... 14 Setup ............16 Placement & Unboxing ......16 Inventory List .......... 18 Assembling ..........19 Operation ............. 25 Maintenance ..........26 Lubrication ........... 34 Troubleshooting ..........

  • Page 4: Safety

    PXl16 Sheartec:II Planer \ Safety Safety Read and understand all warnings and operation instructions before using any tool or equipment. Always follow basic safety precautions to reduce the risk of personal injury. Improper operation, maintenance or modification of tools or equipment could result in serious injury and property damage. There are certain applications for which tools and equipment are designed.
  • Page 5 PXl16 Sheartec:II Planer \ Safety PROP 65 WARNING SOME DUST CREATED BY POWER SANDING, SAWING, GRINDING, DRILLING, AND OTHER CONSTRUCTION ACTIVITIES CONTAINS CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER, BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. SOME EXAMPLES OF THESE CHEMICALS ARE: ·...
  • Page 6 PXl16 Sheartec:II Planer \ Safety WEARING PROPER APPAREL. Do not wear clothing, apparel or jewelry that can become entangled in moving parts. Always tie back or cover long hair. Wear non-slip footwear to reduce risk of slipping and losing control or accidentally contacting cutting tool or moving parts.
  • Page 7 PXl16 Sheartec:II Planer \ Safety TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed. Only allow trained/supervised people to use this machine. When machine is not being used, disconnect power, remove switch keys, or lock-out machine to prevent unauthorized use—especially around children. Make your workshop kid proof! DANGEROUS ENVIRONMENTS.
  • Page 8 PXl16 Sheartec:II Planer \ Safety LIKE ALL MACHINES, THERE IS DANGER ASSOCIATED WITH THE MACHINE. INJURY IS FREQUENTLY CAUSED BY LACK OF KNOWLEDGE OR FAMILIARITY. USE THIS MACHINE WITH RESPECT. IF NORMAL SAFETY PRECAUTIONS ARE OVERLOOKED OR IGNORED, SERIOUS PERSONAL INJURY MAY OCCUR. 1.

  • Page 9: Electrical Safety

    PXl16 Sheartec:II Planer \ Electrical Safety Electrical Safety WARNING! · RUNNING ON A DIFFERENT VOLTAGE THAN STATED BELOW WILL DAMAGE THE MACHINE. NEVER RUN THE MACHINE IN WET OR DAMP CONDITIONS. · ELECTROCUTION, FIRE, SHOCK, OR EQUIPMENT DAMAGE MAY OCCUR IF MACHINE IS NOT PROPERLY GROUNDED AND CONNECTED TO POWER SUPPLY.
  • Page 10 PXl16 Sheartec:II Planer \ Electrical Safety Grounding Methods DANGER! THIS MACHINE MUST BE GROUNDED WHILE IN USE TO PROTECT THE OPERATOR FROM ELECTRIC SHOCK. IN ALL CASES, MAKE CERTAIN THAT THE RECEPTACLE IN QUESTION IS PROPERLY GROUNDED. IF YOU ARE NOT SURE, HAVE A QUALIFIED ELECTRICIAN CHECK THE RECEPTACLE.
  • Page 11 PXl16 Sheartec:II Planer \ Electrical Safety Check with a qualified electrician or service personnel if the grounding instructions are not completely understood, or if in doubt as to whether the tool is properly grounded. Use only 3-wire extension cords that have 3-prong grounding plugs and 3 pole receptacles that accept the tool's plug.
  • Page 12 PXl16 Sheartec:II Planer \ Electrical Safety Extension Cords Use proper extension cords. Make sure your extension cord is in good condition and is a 3- wire extension cord which has a 3-prong grounding type plug and matching receptacle which will accept the machine’s plug.

  • Page 13: Specifications

    PXl16 Sheartec:II Planer \ Specifications Specifications PXl16 Sheartec:II Planer MPLANPX16-0130 VOLT HP MOTOR AMP. RECOM. 230V 5HP 1PHASE 60HZ/23AMP. SIZE BRKR. BED SIZE 16 X 21-1/2" PULL-OUT EXTENSION 4" WHEELS BUILT-IN OPTIONAL MAX. DEPTH OF CUT 1/4" MAX. STOCK THICKNESS 8"...

  • Page 14: Machine Overview

    PXl16 Sheartec:II Planer \ Machine Overview Machine Overview PXl16 Sheartec:II Planer Figure 6: Main Components of PX16 A. Emergency Stop (E-STOP); stops all functions of machine, however, power continues to machine. NOTICE! To reset E-STOP, rotate switch clockwise until the button “pops” out. B.
  • Page 15 PXl16 Sheartec:II Planer \ Machine Overview Extension Rollers Adjustable rollers that extend for increased workpiece support. Feed Speed Selector CAUTION! AS WITH ALL GEAR BOX SHIFTERS, IT IS VERY IMPORTANT TO ONLY CHANGE SPEEDS WHEN THE MACHINE IS RUNNING. The feed speed selector offers two feed speeds, 16 FPM & 28 FPM. Move lever (push/pull) until it locks in place.

  • Page 16: Setup

    ALL SHIPPING DAMAGE MUST BE NOTED UPON DELIVERY AND SIGNED BY THE OWNER AND THE DELIVERY DRIVER. IF YOU FIND ANY DAMAGED ITEMS IN YOUR PACKAGE, YOU MUST CONTACT LAGUNA TOOLS TO FILE A COMPLAINT. IN ORDER TO RETURN DAMAGED GOODS UNDER THE LIMITED WARRANTY TO LAGUNA TOOLS, INC., YOU MUST HAVE THE ORIGINAL PACKAGING.
  • Page 17 PXl16 Sheartec:II Planer \ Setup Placement & Unboxing 5. Locate it close to a power source and dust collection. 6. Allow an area for the storage of blanks, finished products and tools. Unboxing WARNING! · THE MACHINE WEIGHS 597 LBS (270KG). ENSURE THAT YOU HAVE ENOUGH PEOPLE TO DO THE JOB SAFELY. ·...

  • Page 18: Inventory List

    PXl16 Sheartec:II Planer \ Setup Inventory List Inventory List The following depicts items shipped with your machine. Before assembling, ensure that you have received all parts shown below. Machine parts should arrive sealed in plastic bags. Remove parts from plastic bags before laying them out to inventory them.

  • Page 19: Assembling

    PXl16 Sheartec:II Planer \ Setup Assembling Assembling Machine Preparation and Setup: 1. Level machine using the four leveling feet on each of the four corners. Lock leveling feet into position with the nut on the leveling foot stud (Fig. 3). FIGURE 3: LEVELING FEET (OPTIONAL) If Installing Unverisal Casters Installing universal caster set (Fig.
  • Page 20 PXl16 Sheartec:II Planer \ Setup Assembling 2. 2. Clean all rust protected surfaces with a commercial de-greaser. DO NOT use acetone, gasoline, lacquer thinner or any type of cleaner that could damage paint. Coat cleaned surfaces with WD-40® or 20W machine oil. 3.
  • Page 21 PXl16 Sheartec:II Planer \ Setup Assembling Power Supply Circuit Requirements The power source circuit for your machine must be grounded and rated for the amperage given below. Never replace a circuit breaker on an existing circuit with one of higher amperage without consulting a qualified electrician to ensure compliance with wiring codes.
  • Page 22 PXl16 Sheartec:II Planer \ Setup Assembling Calibrating the Thickness Scale NOTICE! The following procedures describe the use of a “calibrating board”. It is a piece of hardwood which has been surfaced on one side with a jointer, drum sander or wide belt sander. 1.
  • Page 23 PXl16 Sheartec:II Planer \ Setup Assembling Calibrating the DRO (Digital Read Out) 1. Remove the battery cover of the DRO and install 2 AAA batteries. FIGURE 9: DRO BATTERIES DRO Button Reference and Use It is helpful to familiarize these buttons and their purpose with the Wixey™ DRO...
  • Page 24 PXl16 Sheartec:II Planer \ Setup Assembling FIGURES 10-12: DRO ADJUSTMENT...

  • Page 25: Operation

    PXl16 Sheartec:II Planer \ Operation Operation CAUTION! PLACE THE PLANER ON A SECURE AND STABLE SURFACE FOR OPERATION. CLAMP OR BOLT THE PLANER INTO POSITION. 1. Establish the proper depth of cut (typically less than 1/16”), using either the DRO or scale. 2.

  • Page 26: Maintenance

    PXl16 Sheartec:II Planer \ Maintenance Maintenance General Keep your machine clean. At the end of each day, clean the machine. Wood contains moisture, and if sawdust or wood chips are not removed they will cause rust. In general, we recommend that you only use a Teflon-based lubricant on the planer. Regular oil attracts dust and dirt.
  • Page 27 PXl16 Sheartec:II Planer \ Maintenance Sheartec II Knife rotation/replacement CAUTION! KNIFE INSERTS ARE DANGEROUSLY SHARP. USE EXTREME CAUTION WHEN INSPECTING, REMOVING, OR REPLACING KNIFE INSERTS. WARNING · TURN PLANER OFF AND DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE OR ADJUSTMENTS! · MAKE SURE ALL KNIFE INSERT SCREWS ARE TIGHTENED SECURELY.
  • Page 28 PXl16 Sheartec:II Planer \ Maintenance Conveying Rollers WARNING · TURN PLANER OFF AND DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE OR ADJUSTMENTS! MAINTENANCE: Keep rollers clean to help prevent slippage of material. Be careful not to contact cutterhead knives as they are very sharp! ADJUSTMENTS: The planer comes set-up from the factory and typically will not need adjustment.
  • Page 29 PXl16 Sheartec:II Planer \ Maintenance Anti-Kickback Fingers WARNING · TURN PLANER OFF AND DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE OR ADJUSTMENTS! Anti-kickback fingers help prevent stock from being kicked out of the machine towards the user. Keep the fingers clean and free from sawdust, pitch gum, etc., so they operate smoothly.
  • Page 30 PXl16 Sheartec:II Planer \ Maintenance Adjustment of Pressure Bar WARNING · TURN PLANER OFF AND DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE OR ADJUSTMENTS! The pressure bar should be set even with the lowest point of knife. Make sure the knives are set properly see the “Setting / Changing Knives”...
  • Page 31 PXl16 Sheartec:II Planer \ Maintenance 1. Disconnect machine from power source. 2. Place a hard wood gauge (Fig.17, A) under a knife in the cutterhead. Place a 0.02” feeler gauge (Fig. 17, B) on top of wood block and raise table until the gauge contacts the knife in its lowest position.
  • Page 32 PXl16 Sheartec:II Planer \ Maintenance Poly-V-Belt Adjustment WARNING · TURN PLANER OFF AND DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE OR ADJUSTMENTS! Poly-V-belt (Fig. 22, D) tension has been set at the factory. If the belt has stretched and needs adjustment. 1.
  • Page 33 PXl16 Sheartec:II Planer \ Maintenance Adjusting Table Rollers WARNING · TURN PLANER OFF AND DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE OR ADJUSTMENTS! The table rollers come pre-set from the factory and shouldn’t need any adjustment. If adjustment is necessary, follow the below listed steps. 1.

  • Page 34: Lubrication

    PXl16 Sheartec:II Planer \ Lubrication Lubrication Regular monitoring and replacement of lubrication is needed. Figure 25 Table POSITION GREASE GEAR BOX CHAIN CHAIN CHAIN CHAIN BUSHING LEAD SCREW FIGURE 25: LUBRICATION FIGURE 26: LUBRICATION · The Gear Box oil must be changed after 2500 hours of work.

  • Page 35: Troubleshooting

    PXl16 Sheartec:II Planer \ Troubleshooting Troubleshooting Symptom Possible Cause Possible Solution Machine will not 1. Fuse blown or circuit breaker tripped 1. Replace fuse or reset circuit breaker start 2. Cord damaged 2. Have cord replaced 3. Not connected to power source 3.

  • Page 36: Wiring

    PXl16 Sheartec:II Planer \ Wiring Wiring WARNING REVIEW ELECTRICAL SAFETY PRIOR TO ANY WIRING PROCEDURES.

  • Page 37: Replacement Parts Diagram

    PXl16 Sheartec:II Planer \ Replacement Parts Diagram Replacement Parts Diagram Cutterhead & Drivetrain...
  • Page 38 PXl16 Sheartec:II Planer \ Replacement Parts Diagram Table & Lift...
  • Page 39 PXl16 Sheartec:II Planer \ Replacement Parts Diagram Stand & Motor...

  • Page 40: Replacement Parts Table

    PXl16 Sheartec:II Planer \ Replacement Parts Table Replacement Parts Table REF NO PART NUMBER DESCRIPTION SPECIFICATION 000804-107 ROUND HEAD HEX SCREW M5-0.8X12 174818-000 DUST CHUTE 000302-201 ROUND HEAD PHILLIPS SCREW M4-0.7X6 230409-905 BUCKLE CT-22 174817-000 TOP COVER 340007-615 BLOCK 200113-615 SPONGE 174723-904 ROLLER BRACKET...
  • Page 41 PXl16 Sheartec:II Planer \ Replacement Parts Table REF NO PART NUMBER DESCRIPTION SPECIFICATION 924681-001 DIGITAL READ OUT ASSEMBLY 491210-000 DIGITAL READ OUT WR5502CT 950788-001 SENSOR STRIP WR7003 491128-000 SENSOR WR5501 730139-001 CABLE CAT 5E/RJ45-8P8CT-A/2M 006001-034 FLAT WASHER 6.7-16X2.0 130384-000 BUSHING 280276-000 SPRING 380200-901...
  • Page 42 PXl16 Sheartec:II Planer \ Replacement Parts Table REF NO PART NUMBER DESCRIPTION SPECIFICATION 002604-103 CAP LOCKING SCREW M10-1.5X40 000801-102 ROUND HEAD HEX SCREW M6-1.0X12 000002-106 HEX SCREW M6-1.0X30 924834-001 EXTENSION ROLLER ASSEMBLY 660300-000 ROLLER 174829-904 ROLLER BRACKET 000004-101 HEX SCREW M10-1.5X20 006307-100 SPRING WASHER...
  • Page 43 PXl16 Sheartec:II Planer \ Replacement Parts Table REF NO PART NUMBER DESCRIPTION SPECIFICATION 012004-003 6X6X40 130404-000 SHIFTING CLAW 924811-001 GEAR ASSEMBLY 030205-002 BALL BEARING 6201 320356-000 SHAFT 320198-000 GEAR 012003-002 5X5X10 320406-000 GEAR 012003-003 5X5X12 320160-000 SHAFT 043337-000 O-RING 043401-000 PLUG PT1/4”-19 012002-011...
  • Page 44 PXl16 Sheartec:II Planer \ Replacement Parts Table REF NO PART NUMBER DESCRIPTION SPECIFICATION 150016-000 LIFTING SPROCKET 170746-901 TEETH WASHER 130094-903 LOCK NUT 360413-901 FIXING PIN 174822-000 BASE CASTING 010014-000 RETAINING RING STW-35 938011-001 MAGNETIC SWITCH ASSEMBLY 5HP/220V-240V/1PH/CSA 000801-108 ROUND HEAD HEX SCREW M6-1.0X8 174846-000 BASE REAR COVER...
  • Page 45 PXl16 Sheartec:II Planer \ Replacement Parts Table REF NO PART NUMBER DESCRIPTION SPECIFICATION 000202-102 SET SCREW M5-0.8X8 174819-000 BASE FRONT COVER 174821-000 BASE TOP COVER 361385-902 SUPPORT ROD 050287-008 MOTOR PLATE 380148-000 ADJUSTABLE ROD 006003-091 FLAT WASHER 13-28X3.0 000003-108 HEX SCREW M8-1.25X40 006001-041 FLAT WASHER...

  • Page 46: Warranty

    This machine is covered by a warranty and the purchasing dealer can answer any questions you may have. Additionally, you can contact Laguna: +1 (949) 474-1200 customerservice@lagunatools.com. Every product sold is warranted to be free of manufacturers’ defective workmanship, parts, and materials.
  • Page 47 PXl16 Sheartec:II Planer \ Warranty...
  • Page 48 Minnesota: 5250 West 74th St, Edina, MN 55439, U.S.A Phone: +1-949-474-1200 DAKE CORPORATION 724 Robbins Road, Grand Haven, MI 49417, United States +1-800-937-3253 LAGUNA EUROPE Walker Rd, Bardon Hill, Coalville LE67 1TU, United Kingdom. Phone: +44-1530-516921 © 2021 Laguna Tools...

This manual is also suitable for:

Mplanpx16-0130Mplanpx20-0130Mplanpx2275-0130Mplanpx2210-0130
