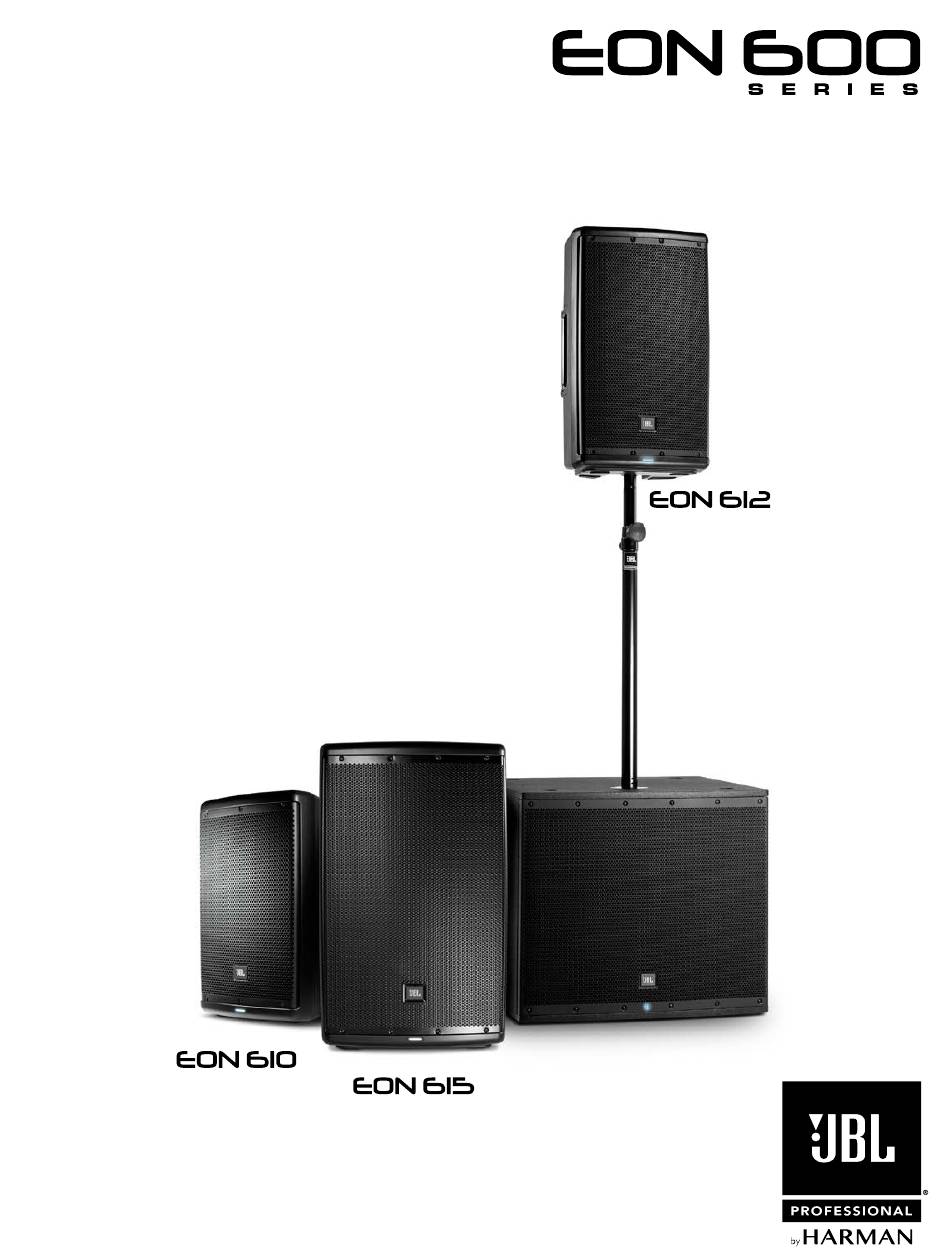

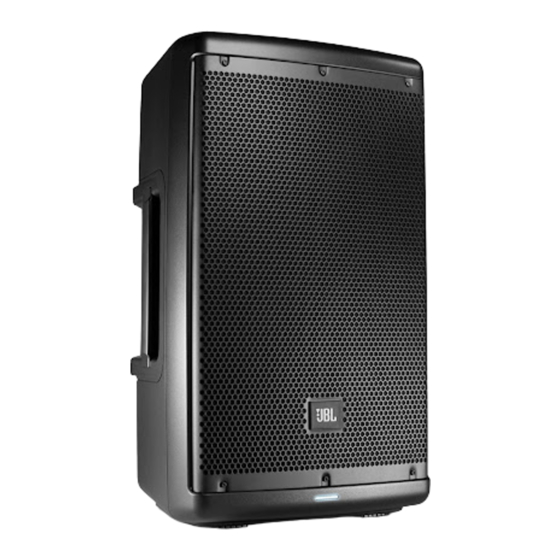

- Page 1 User’s Guide EON 618S...
-
Page 3: Table Of Contents
CONTENTS Safety Instructions .............................4 Declaration Of Conformity ......................... Quick Setup Guide ............................6 Back Panel ..............................8 Overview - EON Family ..........................10 EON Family - Block Diagram ........................11 EON615 Specifications ..........................13 EON612 Specifications ..........................14 EON610 Specifications ..........................15 EON618S Specifications ..........................16 Purposeful Product Design........................17 Coverage .............................. -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Before You Begin - Important Information Before using your EON® speaker system please review the following for important information on safety and protection of your investment in quality loudspeakers. 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. -
Page 5: Declaration Of Conformity
DECLARATION OF CONFORMITY Safety And EMC Compliance Specifications EN 55103-1:1997 Electromagnetic Compatibility - Product Family Standard for Audio, Video, Audio-Visual and Entertainment Lighting Control Apparatus for Professional Use, Part 1: Emissions EN 55103-1:1997 Magnetic Field Emissions-Annex A@ 10 cm and 20 cm EN 55022:2003 Limits and Methods of Measurement of Radio Disturbance Characteristics of ITE: Radiated, Class B Limits;... -
Page 6: Quick Setup Guide
QUICK SETUP GUIDE Congratulations on your purchase of JBL Professional EON600 Series loudspeakers! We know you are anxious to get up and running as fast as possible, which is why you are reading this section. The following will help you get set up as soon as possible. Packaging Contents Your EON600 system should include the following: 1 x EON600 speaker... - Page 7 100-120VAC 50/60Hz NORTHRIDGE, CA. USA 230-240VAC 50/60Hz FUSE TYPE: T3.15L250V A HARMAN INTERNATIONAL COMPANY FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE FUSE ONLY WITH SAME TYPE OF RATING. DESIGNED AND ENGINEERED IN THE USA POWER IT ON PLUG IN THE INPUTS...
- Page 8 JBL PROFESSIONAL 690W Max NORTHRIDGE, CA. USA 100-120VAC 50/60Hz 220-240VAC 50/60Hz FUSE TYPE: T3.15L250V A HARMAN INTERNATIONAL COMPANY FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE FUSE ONLY WITH SAME TYPE OF RATING. DESIGNED AND ENGINEERED IN THE USA Power Switch...
-
Page 9: Back Panel
BACK PANEL A. Power LED result in unpleasant and fatiguing distortion and may lead to premature failure of your speaker system. This LED (White) lights to indicate that the speaker is plugged in and switched ON. J. Signal Indicators B. Bluetooth Sync The SIGNAL LEDs (Green) illuminates to indicate a usable signal is present at connected INPUTS. -
Page 10: Overview - Eon Family
OVERVIEW - EON FAMILY EON 618S 10" Two-way multipurpose 12" Two-way multipurpose 15" Two-way multipurpose 18” multipurpose powered self-powered sound self-powered sound self-powered sound subwoofer reinforcement reinforcement reinforcement • 1000 Watt • 1000 Watt • 1000 Watt • 1000 Watt •... -
Page 11: Eon Family - Block Diagram
EON FAMILY - BLOCK DIAGRAM EON 610, EON 612, and EON 615... - Page 12 EON 618S - BLOCK DIAGRAM...
-
Page 13: Eon615 Specifications
EON615 SPECIFICATIONS 295 mm 11.61 in System Specification System Type: Self powered 15”, two-way, bass-reflex Maximum SPL Output: 127 dB Frequency Range (-10 dB): 39 Hz - 20 kHz Frequency Response (±3 dB): 50 Hz - 20 kHz 3 Parametric EQ’s, High and Low Shelf (Available via Bluetooth app only) 558 mm 21.97 in Amplification... -
Page 14: Eon612 Specifications
EON612 SPECIFICATIONS System Specification System Type: Self powered 12”, two-way, bass-reflex Maximum SPL Output: 126 dB Frequency Range (-10 dB): 48 Hz - 20 kHz Frequency Response (±3 dB): 57 Hz - 20 kHz 3 Parametric EQ’s, High and Low Shelf (Available via Bluetooth app only) Amplification Amplifier Design: High Efficiency Class D... -
Page 15: Eon610 Specifications
EON610 SPECIFICATIONS System Specification System Type: Self powered 10”, two-way, bass-reflex Maximum SPL Output: 124 dB Frequency Range (-10 dB): 52 Hz -20 kHz Frequency Response (±3 dB): 60 Hz - 20 kHz 3 Parametric EQ’s, High and Low Shelf (Available via Bluetooth app only) Amplification Amplifier Design: High Efficiency Class D... -
Page 16: Eon618S Specifications
EON618S SPECIFICATIONS System Specification System Type: Self powered 18”, subwoofer Maximum SPL Output: 134 dB Frequency Range (-10 dB): 31 Hz - 150Hz Frequency Response (±3 dB): 42 Hz - 150Hz 3 Parametric EQ’s, High and Low Shelf (Available via Bluetooth app only) Amplification Amplifier Design: High Efficiency Class D... -
Page 17: Purposeful Product Design
PURPOSEFUL PRODUCT DESIGN Portability made easy Enclosure designs have been optimized for ideal acoustic resonance taking advantage of injection molding techniques and mechanical shaping of the enclosures. This results in tremendous increases in cabinet volumes which enable better acoustic performance while maintaining the same footprint. Four intelligently positioned handles make the 600 easy to carry and move around. -
Page 18: Coverage
COVERAGE EON600 Family Coverage Patterns Compared to a Typical Speaker TYPICAL TYPICAL TYPICAL EON615 EON612 EON610 The EON600’s extraordinary performance results from a breakthrough approach to waveguide design. JBL engineers examined the radiation characteristics of the EON’s high and low frequency drivers at 36 different points employing JBL’s exclusive, state of the art measurement techniques, then designed individual waveguides for both components that control the sound radiation at the high frequencies, the crossover point and at the low frequencies. -
Page 19: Bluetooth Integration
BLUETOOTH INTEGRATION Visit jblpro.com/EON600 to register iPad 8:35 PM DEMO SETTINGS INFO BACK • Supports iOS & Android GUIT AR : 01 EON : 02 S E T U P ONLINE • Bluetooth audio NOT supported OFFLINE OFFLINE L O CAT E L O CAT E FRONT Speaker Discovery... -
Page 20: Loudspeaker Placement And Suspension
LOUDSPEAKER PLACEMENT AND SUSPENSION Suspended Stacking Floor Monitor Floor Standing Tripod Stand Pole Mount The following guidelines will help you achieve optimum sound wherever you use your EON ® loudspeakers: Only experienced professionals should attempt to suspend the speakers. For permanent installation applications utilizing the M10 suspension points, JBL Professional recommends the use of three (3) M10 x 1.5 thread pitch forged shoulder steel eyebolts with an 18-20mm threaded shaft, along with fender washers, rated for overhead suspension. -
Page 21: Application Examples
JBL PROFESSIONAL 100-120VAC 50/60Hz NORTHRIDGE, CA. USA 230-240VAC 50/60Hz FUSE TYPE: T3.15L250V A HARMAN INTERNATIONAL COMPANY FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE FUSE ONLY WITH SAME TYPE OF RATING. DESIGNED AND ENGINEERED IN THE USA IN 1 IN 2... - Page 22 230-240VAC 50/60Hz FUSE TYPE: T3.15L250V FUSE TYPE: T3.15L250V A HARMAN INTERNATIONAL COMPANY A HARMAN INTERNATIONAL COMPANY FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE FUSE ONLY WITH SAME TYPE OF RATING. FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE FUSE ONLY WITH SAME TYPE OF RATING.
- Page 23 230-240VAC 50/60Hz FUSE TYPE: T3.15L250V FUSE TYPE: T3.15L250V A HARMAN INTERNATIONAL COMPANY A HARMAN INTERNATIONAL COMPANY FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE FUSE ONLY WITH SAME TYPE OF RATING. FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE FUSE ONLY WITH SAME TYPE OF RATING.
-
Page 24: Trouble Shooting
TROUBLE SHOOTING Symptom Likely Cause What to do Speaker not connected Verify that speaker is connected and that the circuit is on No sound to active AC power Power not switched on Switch on power and verify that power LED is on No sound, speaker is connected Speaker power cable is faulty •... -
Page 25: Warranty Information
WARRANTY INFORMATION The JBL Limited Warranty on professional loudspeaker products (except for enclosures) remains in effect for five years from the date of the first consumer purchase. JBL amplifiers are warranted for three years from thedate of original purchase. Enclosures and all other JBL products are warranted for two years from the date of original purchase. -
Page 26: Contact Information
CONTACT INFORMATION Mailing Address: JBL Professional 8500 Balboa Blvd. Northridge, CA 91329 Shipping Address: JBL Professional 8500 Balboa Blvd., Dock 15 Northridge, CA 91329 (Do not return product to this address without first obtaining prior authorization from JBL) Customer Service: Monday through Friday 8:00am -5:00pm Pacific Coast Time in the U.S.A. - Page 28 Rev B 2/16 8500 Balboa Boulevard Northridge, CA 91329 USA www.jblpro.com...
