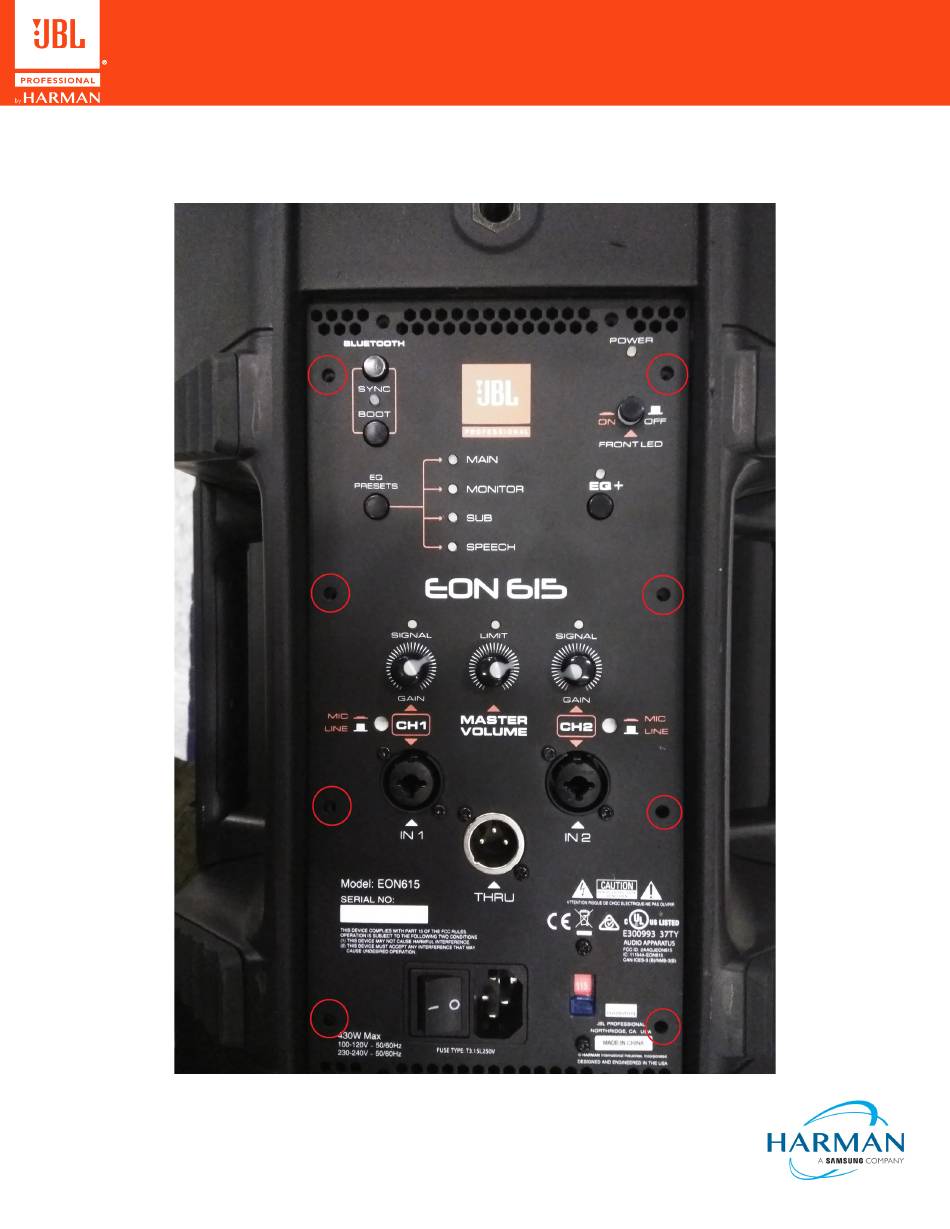

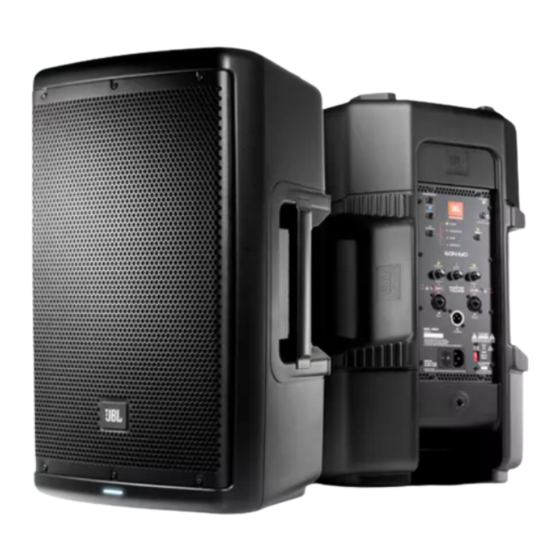

- Page 1 Repair Addendum v 1.0 -03/19 EON600 Fuse Replacement 1. Remove all eight of the amplifier module screws (see Figure 1) from the enclosure. Figure 1. Amplifier Module Cover...
- Page 2 Repair Addendum v 1.0 -03/19 EON600 Fuse Replacement 2. Remove the amplifier module from the enclosure recess and disconnect the speakers, LED, and Bluetooth antenna connections. 3. Locate the fuse on the PCBA (see Figure 2). The stock fuse should have a shrink-wrap cover. 4.
- Page 3 Repair Addendum v 1.0 -03/19 EON600 Fuse Replacement Figure 3. Amplifier PCBA 11. Insert new fuse (Littelfuse 0218004.MXED or XCE 5T4000212000R15 or equivalent). 12. Solder the fuse to PCB and trim excess leads on the solder side of the PCB. 13.
