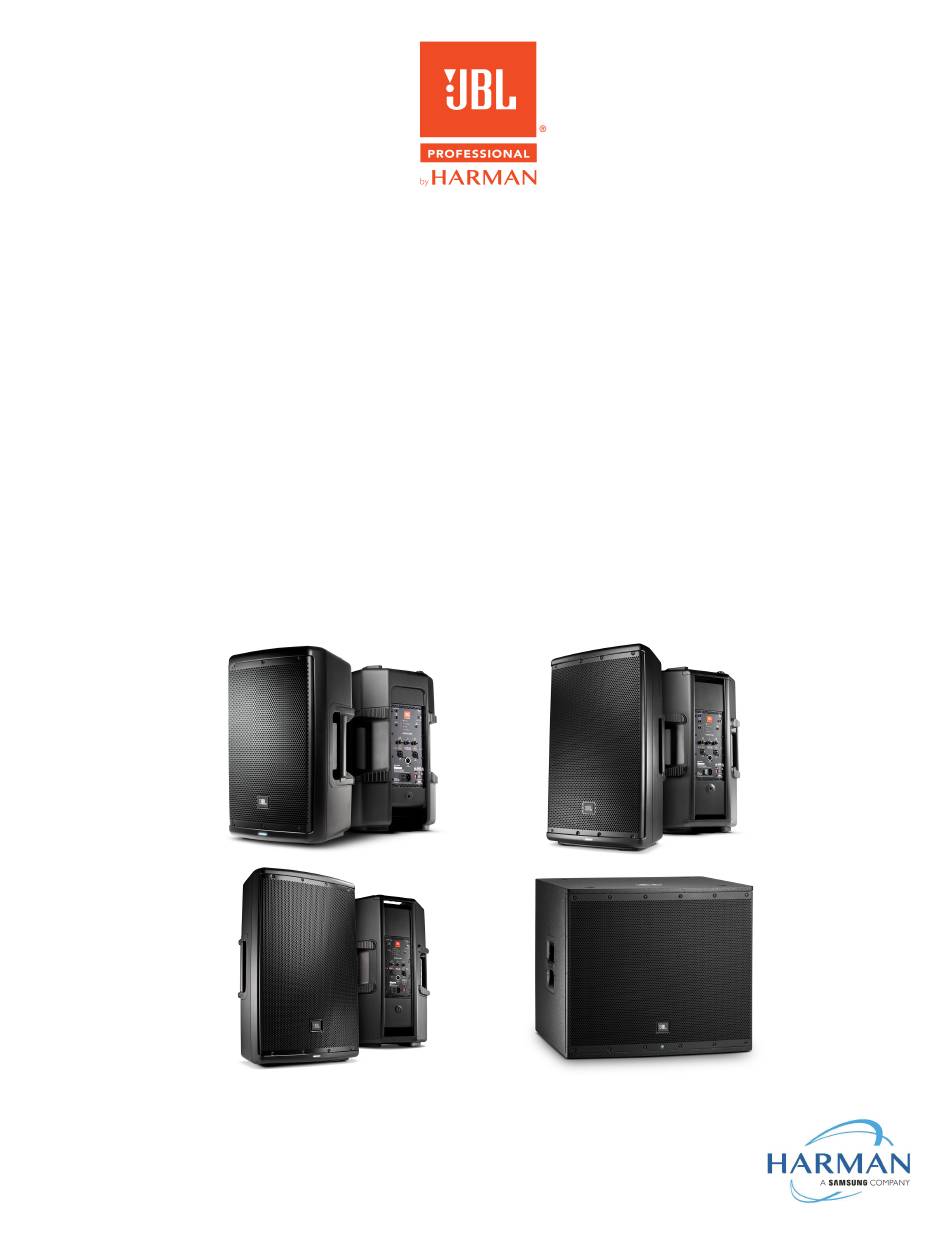

- Page 1 Version A - 06/20 Service Manual EON 600 Series Two-Way Multipurpose Self-Powered Sound Reinforcement & Self-Powered Subwoofer • EON610 • EON612 • EON615 • EON618S...
-
Page 2: Table Of Contents
EON600 Series Service Manual Version A - 06/20 Table of Contents Safety Instructions Datasheets and Specifications Back Panel Overview Troubleshooting Block Diagrams Schematics Exploded View Diagrams Bill of Materials... -
Page 3: Safety Instructions
EON600 Series Service Manual Safety Instructions Version A - 06/20 Before You Begin - Important Information Before using your EON® speaker system please review the following for important information on safety and protection of your investment in quality loudspeakers. 1. Read these instructions. 2. - Page 4 ► JBL Premium Transducers ► 1000 W highly efficient Class-D amplification ► Maximum SPL Output: 124dB ► System Type: Self powered 10� two-way, bass-reflex ► Frequency Range (-l0dB): 52Hz- 20kHz ► Frequency Response (- 3dB): 60Hz - 20kHz ► Coverage Pattern: 110 x 60 ►...
- Page 5 ► JBL Premium Transducers ► 1000 W highly efficient Class-D amplification ► Maximum SPL Output: 126dB ► System Type: Self powered 12� two-way, bass-reflex ► Frequency Range (-1 0dB): 48Hz - 20kHz ► Frequency Response (- 3dB): 57Hz - 20kHz ►...
- Page 6 ► JBL Premium Transducers ► 1000 W highly efficient Class-D amplification ► Maximum SPL Output: 127dB ► System Type: Self powered 15� two-way, bass-reflex ► Frequency Range (-l0dB): 39Hz- 20kHz ► Frequency Response (- 3dB): S0Hz - 20kHz ► Coverage Pattern: 90 x 50 ►...
- Page 7 ► JBL Premium Transducers ► 1000 W highly efficient Class-D amplification ► Maximum SPL Output: 134dB ► System Type: Self powered 18" Subwoofer ► Frequency Range (-1 0dB): 31 Hz - 1 SO Hz ► Frequency Response (- 3dB): 42. S Hz - lS 0 Hz ►...
-
Page 8: Back Panel Overview
EON600 Series Service Manual Back Panel Overview Version A - 06/20 Power LED Bluetooth Sync • Front LED On/Off Bluetooth Boot EQ Presets EQ+ On/Off CH1 & CH2 Gain Limit LED Mic/Line Button Master Volume XLR-1 /4" Combo Inputs XLR Male Loop Thru Power Switch •... - Page 9 EON600 Series Service Manual Back Panel Overview Version A - 06/20 Signal Indicator ...-----------tlr!.a .------� Master Volume Limit LED Bluetooth Sync Power LED Bluetooth Indicator • Front LED On/Off Bluetooth Boot XLR-1/4"Combo Inputs EQ+ On/Off Polarity Switch XLR Male Loop Thru Power Switch Table of Contents...
- Page 10 EON600 Series Service Manual Version A - 06/20 Table of Contents Table of Contents...
- Page 11 EON600 Series Service Manual Troubleshooting Version A - 06/20 Symptom Likely Cause What to do Speaker not connected Verify that speaker is connected and that the circuit is on No sound to active AC power Power not switched on Switch on power and verify that power LED is on No sound, speaker is connected Speaker power cable is faulty •...
-
Page 12: Version A - 06/20
EON600 Series Service Manual Block Diagrams--EON600 Version A - 06/20 SIGNAL LINE LEVEL 1 MASTER LIMIT SIGNAL VOLUME MAIN MONITOR SPEECH LINE LEVEL 2 THRU EON610 EON612 EON615 Table of Contents... -
Page 13: Table Of Contents
EON600 Series Service Manual Block Diagrams--EON600 SUB Version A - 06/20 SIGNAL .,...,_ MIC rl LINE LEVEL 1 THRU MASTER VOLUME 80Hz 100Hz 120Hz .,...,_ MIC rl LINE LEVEL2 THRU EON618S Table of Contents... - Page 14 EON600 Series Service Manual Schematics Version A - 06/20 All unused 1/0 should be configured as analog input and all decoupling caps should be put as c1ose as possible to the micro SWHCllf.S and LED Controls \\1,.., U.111, ; ITAG(B)close Jl open J2, ID large! oo,.-dno ffi'.G (ll). Jl and J2 JBL Professional EON600 Table of Contents...
- Page 15 EON600 Series Service Manual Version A - 06/20 Table of Contents...
- Page 16 EON600 Series Service Manual Version A - 06/20 Table of Contents...
- Page 17 EON600 Series Service Manual Version A - 06/20 Table of Contents...
- Page 18 EON600 Series Service Manual Version A - 06/20 Table of Contents...
- Page 19 EON600 Series Service Manual Version A - 06/20 Table of Contents...
- Page 20 EON600 Series Service Manual Version A - 06/20 Table of Contents...
- Page 21 EON600 Series Service Manual Version A - 06/20 Table of Contents...
- Page 22 EON600 Series Service Manual Version A - 06/20 --EON600 Table of Contents...
- Page 23 EON600 Series Service Manual Version A - 06/20 Table of Contents...
- Page 24 EON600 Series Service Manual Version A - 06/20 Table of Contents...
- Page 25 EON600 Series Service Manual Version A - 06/20 Table of Contents...
- Page 26 EON600 Series Service Manual Version A - 06/20 Table of Contents...
- Page 27 EON600 Series Service Manual Version A - 06/20 Table of Contents...
- Page 28 EON600 Series Service Manual Version A - 06/20 Table of Contents...
- Page 29 EON600 Series Service Manual Version A - 06/20 SMPS--EON600SUB Table of Contents...
- Page 30 EON600 Series Service Manual Version A - 06/20 Table of Contents...
-
Page 31: Exploded View Diagrams
EON600 Series Service Manual Exploded View Diagrams--EON610 Version A - 06/20 Table of Contents... - Page 32 EON600 Series Service Manual Exploded View Diagrams--EON612 Version A - 06/20 Table of Contents...
- Page 33 EON600 Series Service Manual Exploded View Diagrams--EON615 Version A - 06/20 � ® Table of Contents...
- Page 34 EON600 Series Service Manual Exploded View Diagrams--EON618S Version A - 06/20 Table of Contents...
-
Page 35: Bill Of Materials
EON600 Series Service Manual Bill of Materials - EON600 Series Version A - 06/20 For reference only, refer to SBOM to view and order spare parts Bill of Materials Description REAR ENCLOSURE BAFFLE GRILLE HANDLE, TOP/BOTTOM EON600 SERIES SIDE FOOT LEFT SIDE FOOT RIGHT M/I, 2414H-1 SIDE HANDLE ASSEMBLY... - Page 36 EON600 Series Service Manual Bill of Materials - EON600 Series Version A - 06/20 Bill of Materials Description FRONT LED ASSEMBLY, EON600 LINER, EON600 PERMANENT THREADLOCK, (RED) Loctite 2760 0.15 ADH,JET_MELT/3796-PG 0.03 GASKET, CLOCKING FERRITE BEAD ANTENNA, EON615 ADH,TORQUE INDICATOR,BLU Table of Contents...
