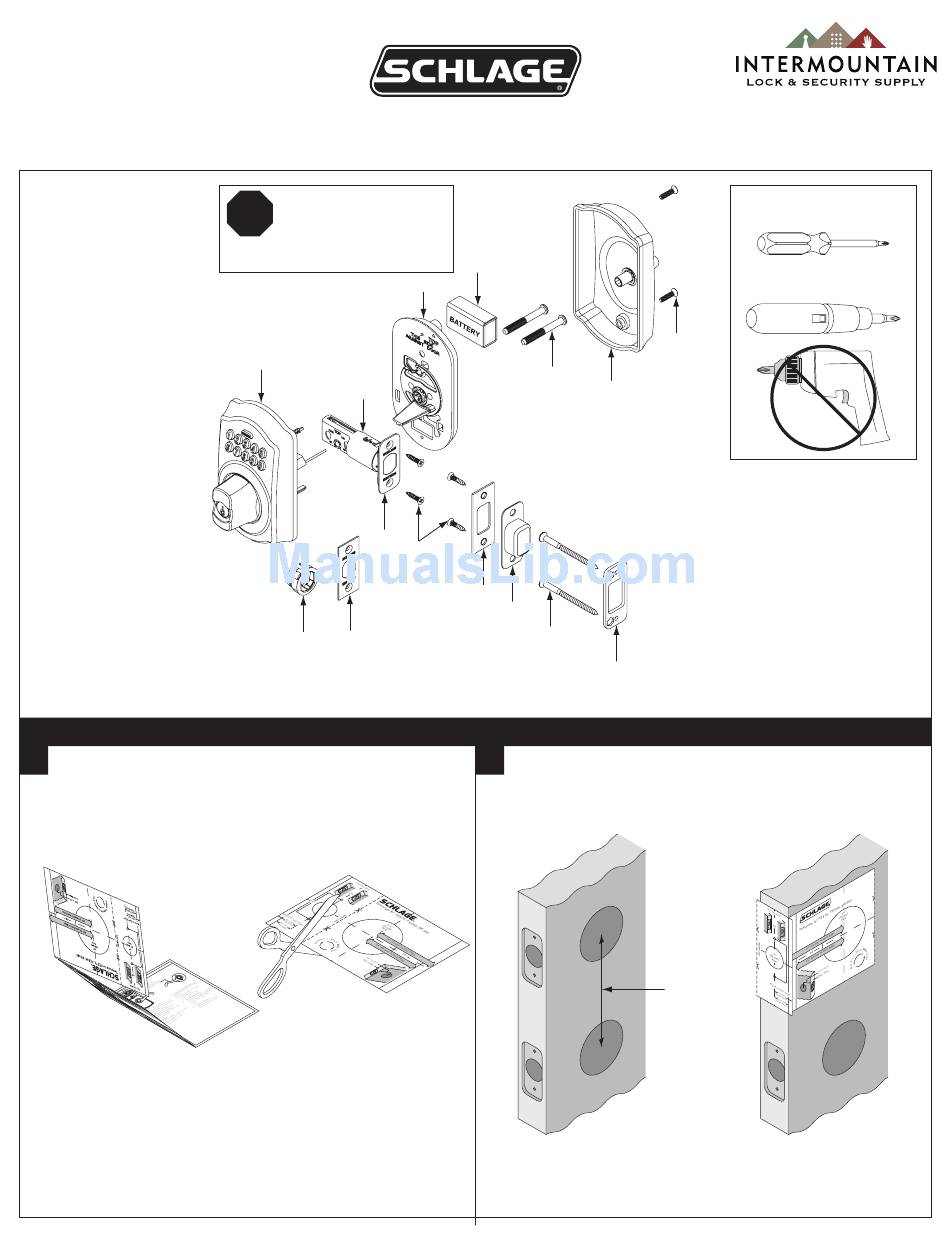

P515-481
A. Keypad Assembly
B. Deadbolt
C. Mounting Plate
D. 9V Battery
E. Mounting Screws
F. Thumbturn Assembly
G. Thumbturn Screws
H. Deadbolt/Strike Screws
J. Strike
K. Dust Box
L. Reinforcement Screws
M. Reinforcement Plate
N. Rounded-corner Faceplate
P. Square-corner Faceplate
Q. Drive-in Faceplate
1
Remove Template From Programming Booklet

Installation Instructions

Keep the programming
booklet with you while
STOP
installing lock. Without
the user codes, you can
get locked out.
A
B
N
P
Q
BE365
D
C
E
H
J
K
L

Install Lock

2
Check Door Holes
Note: If door holes do not match template, visit
www.schlage.com for door drilling instructions.
Tools for Installation
G
F
M
5¹⁄₂"
Minimum
OR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BE365 and is the answer not in the manual?

Questions and answers

Related Manuals for Schlage BE365

Summary of Contents for Schlage BE365

  • Page 1: Installation Instructions

    L. Reinforcement Screws M. Reinforcement Plate N. Rounded-corner Faceplate P. Square-corner Faceplate Q. Drive-in Faceplate Install Lock Remove Template From Programming Booklet Check Door Holes Note: If door holes do not match template, visit www.schlage.com for door drilling instructions. 5¹⁄₂” Minimum...
  • Page 2 For U.S.A.– Choose Appropriate Deadbolt Choose Deadbolt Faceplate For Canada– See bottom of page. 2³⁄₄” 2³⁄₈” Square Corner Rounded Corner Drive-in Install Install Actual Size Move to Step 5 Actual Size Install Deadbolt For Canada ONLY: If Needed, Adjust Deadbolt IMPORTANT: Make sure “top”...
  • Page 3 Install Keypad Assembly Install Inside Mounting Plate IMPORTANT: Cable passes over top of deadbolt. IMPORTANT: Pull excess wire through mounting plate. Cam tip MUST point down Deadbolt MUST STOP be retracted Check Cam Orientation and Install Screws Actual Size...
  • Page 4 Door Edge Actual Size Route and Tuck Cables Install Strike, Dust Box and Reinforcer IMPORTANT: Cable must be routed and tucked as shown. Actual Size Actual Size ©2006 Schlage Lock Company Printed in U.S.A. P515-481 Rev. 6/06 CD...
