Rotary actuator

Advertisement

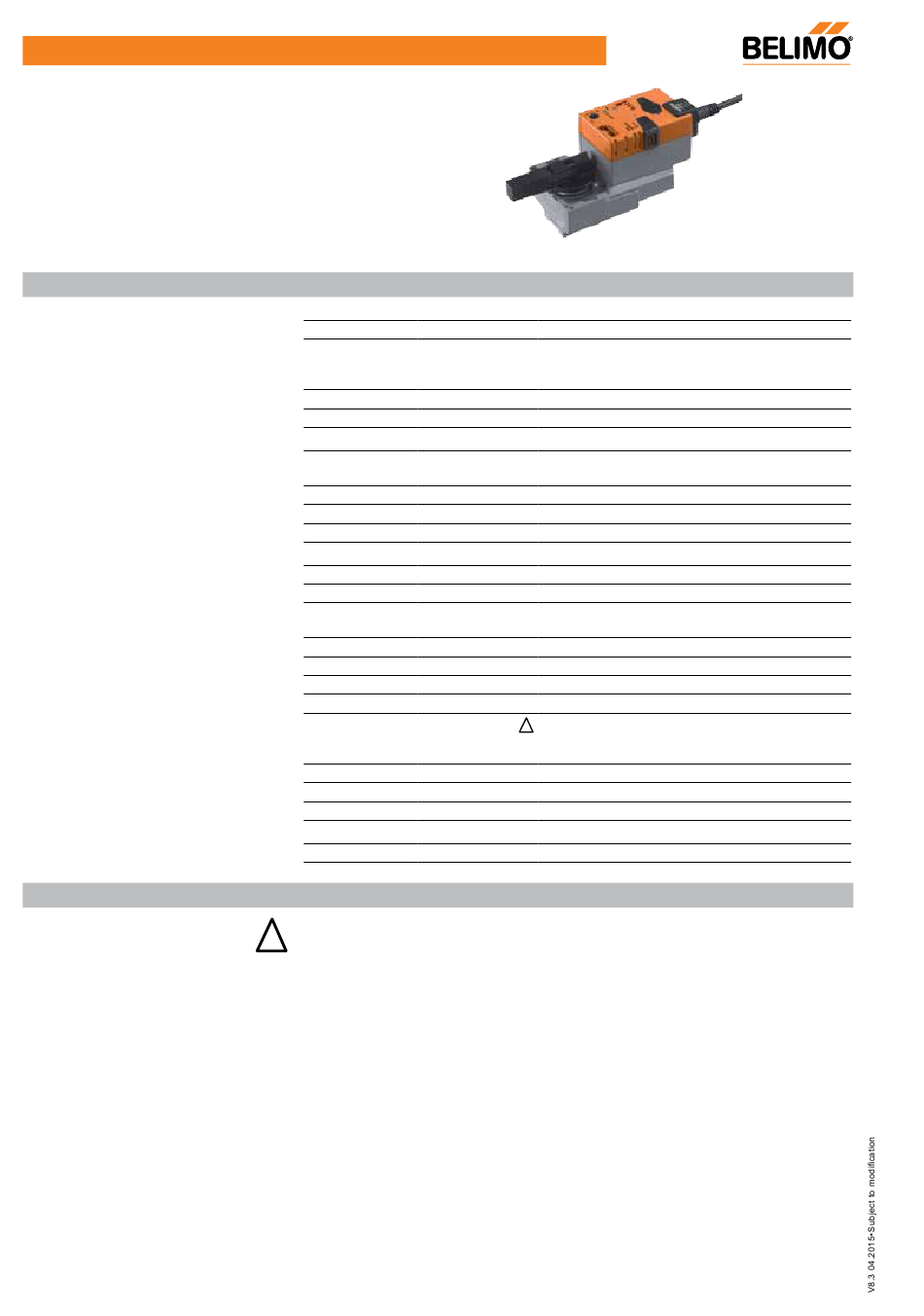

LRQ24A
Rotary actuator for 2 and 3 way control ball valves
• Torque 4Nm
• Nominal voltage AC/DC 24V
• Control: Open-close
• Running time 9s
Technical data
Functional data
Dimensions / Weight
Safety notes
98
Electrical data
Nominal voltage
Nominal voltage range
Power
consumption
Connection
Parallel connection
Torque (nominal torque)
Manual override
Running time
Sound power level
Position indication
Safety
Protection class
Degree of protection
EMC
Certification
Mode of operation
Rated impulse voltage
Control pollution degree
Ambient temperature
Non-operating temperature
Ambient humidity
Maintenance
Dimensions
Weight
• The actuator has been designed for use in stationary heating, ventilation and air
!
conditioning systems and is not allowed to be used outside the specified field of
application, especially in aircraft or in any other airborne means of transport.
• It may only be installed by suitably trained personnel. Any legal regulations or regulations
issued by authorities must be observed during assembly.
• The switch for changing the direction of rotation may only be operated by authorised
personnel. The direction of rotation must not be reversed in a frost protection circuit.
• The device may only be opened at the manufacturer's site. It does not contain any parts
that can be replaced or repaired by the user.
• The cable must not be removed from the device.
• Self adaptation is necessary when the system is commissioned and after each adjustment
of the angle (press the adaptation push-button)
• The device contains electrical and electronic components and is not allowed to be
disposed of as household refuse. All locally valid regulations and requirements must be
observed.
AC 24V, 50/60Hz / DC 24V
AC/DC 19.2 ... 28.8V / DC 21.6 ... 28.8V
In operation
12W @ nominal torque
At rest
1.5W
For wire sizing
18VA (I max. 20A @ 5ms)
Cable 1m, 3 x 0.75mm ²
Possible, note the performance data
Min. 4Nm @ nominal voltage
Gearing latch disengaged with push-button, can
be locked
9s / 90°
Max. 52dB(A)
Mechanical, pluggable
III Safety extra-low voltage
IP54 in any mounting position, UL/NEMA 2
CE according to 2004/108/EC
Certified to IEC/EN 60730-1 and IEC/EN 60730-
2-14
Type 1
0.8kV
3
0 ... +40°C (no restrictions)
+40 ... +50°C (Caution: can only be used
!
with restrictions. Please contact your Belimo
representative.)
–40 ... +80°C
95% r.H., non-condensating
Maintenance-free
See «Dimensions»
Approx. 0.95kg
UL marked actuators is optional, please contact your local Sales Representative for details.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LRQ24A and is the answer not in the manual?

Questions and answers

Summary of Contents for Belimo LRQ24A

  • Page 1 Rated impulse voltage 0.8kV Control pollution degree Ambient temperature 0 ... +40°C (no restrictions) +40 ... +50°C (Caution: can only be used with restrictions. Please contact your Belimo representative.) Non-operating temperature –40 ... +80°C Ambient humidity 95% r.H., non-condensating Maintenance...
  • Page 2: Electrical Installation

    LRQ24A Rotary actuator, AC/DC 24 V, 4Nm, running time 9s Product features Simple direct mounting Straightforward direct mounting on the ball valve with only one screw. The assemply tool is integrated in the plug-on position indicator. The mounting position in relation to the fitting can be selected in 90°...
  • Page 3: Dimensions (Mm)

    LRQ24A Rotary actuator, AC/DC 24 V, 4Nm, running time 9s Dimensions [mm] Dimensional drawings Operating controls and indicators Direction of rotation switch Switching over: Direction of rotation changes Push-button and green LED display Off: No voltage supply or fault In operation...
  • Page 4: Technical Data

    Mode of operation Type 1 Rated impulse voltage 0.8kV Control pollution degree Ambient temperature –30...+40°C (no restrictions) +40...+50°C (Caution: can only be used with restrictions. Please contact your Belimo representative.) Non-operating temperature –40...+80°C Ambient humidity 95% r.H., non-condensating Maintenance Maintenance-free...
  • Page 5: Product Features

    LRQ24A-SR Modulating rotary actuator, AC/DC 24V, 4Nm, running time 9s Safety notes • The device may only be opened at the manufacturer‘s site. It does not contain any parts that can be replaced or repaired by the user. • The cable must not be removed from the device.
  • Page 6 Modulating rotary actuator, AC/DC 24V, 4Nm, running time 9s Electrical installation Cable lengths A = Actuator C = Control unit = Belimo connecting cable, 1m (4 x 0.75mm ² = Customer cable = Maximum cable length Cross section Max. cable length Example for DC 0.75 mm...
  • Page 7 LRQ24A-SR Modulating rotary actuator, AC/DC 24V, 4Nm, running time 9s Operating controls and indicators Direction of rotation switch Switching over: Direction of rotation changes Push-button and green LED display Off: No voltage supply or fault In operation Press button: Switches on angle of rotation adaptation followed by standard operation...
