2.
A12 / LMC-1 / E

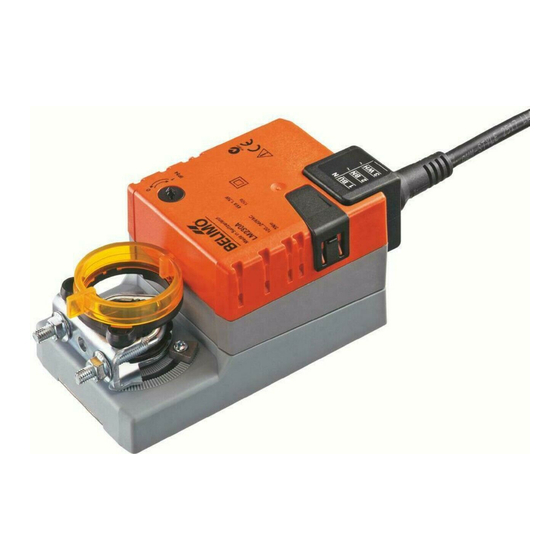

Damper actuators LMC...
(with fast running time)
Spindle clamp versions
Biuro Handlowe
MERPRO Sp. z o.o.
ul. Ścinawska 43
60-178 POZNAŃ
tel. 0048 61 8685629
fax 0048 61 8685940
E-mail: bh@merpro.pl
www.merpro.pl
KARTY KATALOGOWE
-CD
j. polskim
przesyłamy na życzenie
fax-em!!!
w
B
C
Actuators for for heating,
ventilation, air-conditioning
OEM
Advertisement
Table of Contents
Related Manuals for Belimo LMC24
Summary of Contents for Belimo LMC24
- Page 1 Actuators for for heating, Biuro Handlowe ventilation, air-conditioning MERPRO Sp. z o.o. ul. Ścinawska 43 60-178 POZNAŃ tel. 0048 61 8685629 fax 0048 61 8685940 E-mail: bh@merpro.pl www.merpro.pl KARTY KATALOGOWE A12 / LMC-1 / E Damper actuators LMC... j. polskim (with fast running time) przesyłamy na życzenie Spindle clamp versions...
- Page 2 Note Using BELIMO damper actuators The actuators listed in this catalogue are intended for the operation of air dampers in HVAC systems. Torque requirements When calculating the torque required to operate dampers, it is essential to take into account all...
-
Page 3: Table Of Contents
• • • • Damper rotation with universal spindle clamp Actuators with damper rotation for square form-fit spindles (8 mm), see documentation 2.A12/LMC-F-1/E Damper actuators, Open/Close LMC24 LMC24-S LMC230 LMC230-S Mounting instructions Adjusting the auxiliary switch Damper actuator, modulating LMC24-SR... -
Page 4: Lmc24
Open/Close actuator (AC/DC 24 V) Single-wire or 2-wire control Running time < 35 s Application The type LMC24(-S) is intended for the operation of air control dampers in venti- lation and air-conditioning systems. Mode of operation Open/Close control by single-wire or 2-wire system. -
Page 5: Lmc230
LMC230, LMC230-S Damper actuators 2 Nm Dampers up to approx. 0.4 m Open/Close actuator (AC 230 V) Control by single-pole contact (single-wire control) Running time < 35 s Application The type LMC230(-S) is intended for the operation of air control dampers in venti- lation and air-conditioning systems. -
Page 6: Mounting Instructions
Mounting instructions LMC24(-S), LMC230(-S) 6...16 5...6 Nm ≈ 1 mm Subject to technical changes / 01.00... -
Page 7: Adjusting The Auxiliary Switch
Adjusting the auxiliary switch LMC24-S, LMC230-S a) Referring to end stop 0 Option 1: Procedure: Actuator at – Turn the scale knob of the auxiliary switch clockwise (cw) from left-hand end stop 0 until the tip of the arrow is pointing to the required switching position. -
Page 8: Lmc24-Sr
Control DC 0…10 V and posi- tion feedback DC 2… 10 V Running time < 35 s Application The type LMC24-SR is intended for the operation of air control dampers in venti- lation and air-conditioning systems. Mode of operation The actuator is controlled by a standard DC 0…10 V signal and runs to whatever... - Page 9 Mounting instructions for LMC24-SR Mounting on anticlockwise-closing damper 6...16 5...6Nm 100% Mounting on clockwise-closing damper 6...16 5...6Nm 100% Subject to technical changes / 01.00...
- Page 10 LMC24-SR Control and monitoring functions Remote control 0...100% Minimum position Connect via Connect via AC 24 V AC 24 V safety isolating safety isolating transformer transformer SGA24, SGF24 SGA24, SGF24 Y [ V ] SGE24 SGE24 10 V Positioner Positioner Y DC 0...10 V...
