Summary of Contents for iRay Technology G600

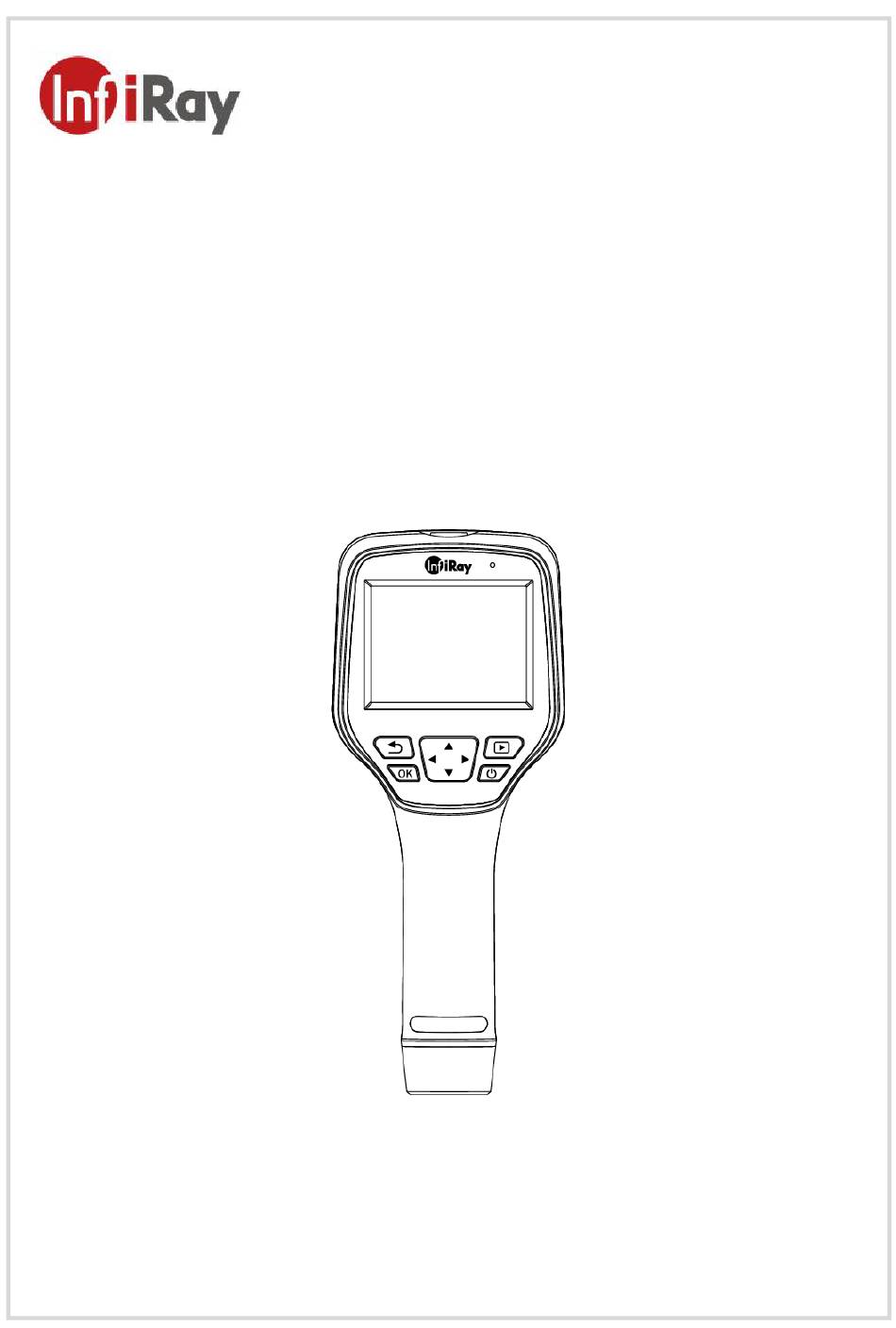

- Page 1 Uncooled Handheld Thermal Camera for Gas Leak Detection User Manual V1.0.3 IRay Technology Co., Ltd. www.infiray.com...
- Page 2 Introduction to IRay Technology IRay Technology concentrates on developing infrared thermal imaging technologies and manufacturing relevant products, with completely independent intellectual property rights. IRay is committed to providing global customers with professional and competitive infrared thermal imaging products and solutions. The main products include IRFPA detectors, thermal imaging modules, and terminal thermal cameras and imagers.
-
Page 3: Table Of Contents
Uncooled Handheld Thermal Camera for Gas Leak Detection·User Manual Table of Contents 1.Legal Disclaimer ............................1 1.1 Legal Disclaimer ..........................1 1.2 Copyright ............................1 1.3 Quality Assurance ..........................1 2.Safety Information .............................2 3.Notice to user ............................3 3.1 Calibration ............................3 3.2 Accuracy ............................3 3.3 Video Teaching .......................... - Page 4 Uncooled Handheld Thermal Camera for Gas Leak Detection·User Manual 8.10 Non-uniformity Correction ......................17 8.10.1 Non-uniformity Correction Introduction ................17 8.10.2 Non-uniformity Correction Operations ................17 8.11 Contrast Adjustment ........................17 8.12 Digital Zoom ..........................18 8.13 Other Settings ..........................18 8.13.1 Temperature Measurement Mode ..................19 8.13.2 Above/Below Temperature Alarm ..................19 8.13.3 Wi-Fi Settings ........................
-
Page 5: Legal Disclaimer
TECHNOLOGY or this warranty will not apply. IRAY TECHNOLOGY will, at its option, repair or replace any such defective product free of charge if, upon inspection, the product or accessories prove to be defective, the user can contact with after-sales service department of IRAY TECHNOLOGY within the said warranty period. -
Page 6: Safety Information
Uncooled Handheld Thermal Camera for Gas Leak Detection·User Manual 2. Safety Information WARNING 1. Make sure you read all applicable Material Safety Data Sheets (SDS) and warning labels on containers before you use a liquid. The liquids can be dangerous. Injury to persons can occur. -
Page 7: Notice To User
Uncooled Handheld Thermal Camera for Gas Leak Detection·User Manual 3.Notice to user 3.1 Calibration IRAY TECHNOLOGY recommends that you verify your calibration yearly in order to ensure accuracy. You can verify the calibration through IRAY TECHNOLOGY or third-party organizations. 3.2 Accuracy... -
Page 8: Product Introduction
Uncooled Handheld Thermal Camera for Gas Leak Detection·User Manual 5.Product Introduction 5.1 Camera（View from the front） Figure5.1 Introduction to Camera Components Components Infrared Lens Digital Camera Laser Pointer Trigger Note: the laser warning label is stuck on the lens cap. -
Page 9: Buttons（View From The Rear
Uncooled Handheld Thermal Camera for Gas Leak Detection·User Manual 5.2 Buttons（View from the rear） Figure5.2 Introduction to Buttons Components Function Description Display screen Press to open the gallery. Long press to perform image Gallery button uniformity correction. Navigation Make selections for the menu, settings, gallery by clicking button up/down/left/right. -
Page 10: Connector And Memory Card
Uncooled Handheld Thermal Camera for Gas Leak Detection·User Manual 5.3 Connector and Memory Card Figure5.3 Illustration of Connector and Memory Card Name Description Connect a USB cable with the power adapter for charging. USB Interface Connect a USB cable to a computer to charge or transfer ... - Page 11 Uncooled Handheld Thermal Camera for Gas Leak Detection·User Manual Methane Sulfur hexafluoride Nitrous oxide Ammonia Sulfur dioxide Ethylene Phenol Ethylene ether Ethyl acrylate Vinyl chloride 2-Ethylhexyl acrylate Trichloroethylene Gases Methyl vinyl ketone Detectable R13B1 Propylene R123 Acrolein R125 Acrylonitrile R134A Ethyl cyanoacrylate R417A Allyl fluoride...
- Page 12 Uncooled Handheld Thermal Camera for Gas Leak Detection·User Manual Temperature Center spot/hot and cold Center spot/hot and cold spot Measurement spot tracing and tracing and temperature Mode temperature display display Self-defined Movable spot/line/area Movable spot/line/area Spots, Lines temperature measurement; temperature measurement; and Areas Support 10 spots, 10 lines Support 10 spots, 10 lines and...
- Page 13 Uncooled Handheld Thermal Camera for Gas Leak Detection·User Manual Traditional Chinese, Traditional Chinese, English, English, French, Spanish, French, Spanish, Italian, Italian, Brazilian Brazilian Portuguese, Language Portuguese, German, German, Polish, Russian, Polish, Russian, Korean, Korean, Hungarian, Turkish, Hungarian, Turkish, Japanese. Japanese. 3.5-inch touch screen 3.5-inch touch screen Display...
- Page 14 Uncooled Handheld Thermal Camera for Gas Leak Detection·User Manual Drop Encapsulatio IP54(IEC 60529) IP54(IEC 60529) n Rating Shock :25g(IEC Shock & Shock :25g(IEC 60068-2-27); 60068-2-27); Vibration: Vibration Vibration: 2.5g(IEC60068-2-6) 2.5g(IEC60068-2-6) Dimensions 256.4 x 105.1 x 105.3mm 256.4 x 105.1 x 105.3mm （HxWxD）...
-
Page 15: Quick Start Guide
Uncooled Handheld Thermal Camera for Gas Leak Detection·User Manual 6.Quick Start Guide Please follow the procedures： 1.Charging (1) 5V 3A power adapter and USB cable can be used to charge the device. (2) You can charge the device by connecting the USB cable in the accessory to the computer. -
Page 16: User Interface
Uncooled Handheld Thermal Camera for Gas Leak Detection·User Manual 7.User Interface Figure 7.1 User Interface Name Description Gas parameters, measurement parameters, Main Menu measurement mode, image mode, color palettes and other settings can be set. specific options can be set, such as a specific color Sub Menu palette. -
Page 17: Operation Instruction
Uncooled Handheld Thermal Camera for Gas Leak Detection·User Manual 8.Operation Instruction 8.1 Charging 8.1.1 Charge with a Power Adapter 1. Plug the power adapter into the socket. 2. Use a USB cable to connect the adapter and the camera to charge. Note：It takes about 3h to get the device fully charged. -
Page 18: Focus Adjustment
Uncooled Handheld Thermal Camera for Gas Leak Detection·User Manual 8.3 Focus Adjustment Make sure that the device is powered on, align the camera at the measured scene, rotate the focus ring beside the lens clockwise or counterclockwise, which can make the image clearer via focal length adjustment, see the following figure for the detailed adjustment method: Figure 8.1 Focus Adjustment Through Focus Ring 8.4 Images/Videos Capture... -
Page 19: Set Gas Detection Mode
Uncooled Handheld Thermal Camera for Gas Leak Detection·User Manual to delete the current item. Select the rename option and confirm to rename the current item. 4. When in the preview interface, click the multiple button in the upper right corner of the screen, then select the picture or video to be deleted, and delete the selected items by pressing the delete button. -
Page 20: Palettes
Uncooled Handheld Thermal Camera for Gas Leak Detection·User Manual Distance : distances have effects on the measurement results. In order to get accurate measurement, distance information of the object is necessary for the thermal camera to compensate the result. 8.8 Palettes In the observation interface, short press OK to enter the main menu, and select Palette Setting with... -
Page 21: Non-Uniformity Correction
Uncooled Handheld Thermal Camera for Gas Leak Detection·User Manual 8.10 Non-uniformity Correction 8.10.1 Non-uniformity Correction Introduction Non-uniformity correction is used to compensate for non-uniformity of detector pixels or non-uniformity caused by other optical interference. When there are more noise in the image, non-uniformity correction is needed, which is common when the ambient temperature changes rapidly. -
Page 22: Digital Zoom
Uncooled Handheld Thermal Camera for Gas Leak Detection·User Manual After the lower limit is changed to 27.7℃ manually: Click the A button in the bottom right corner to return to the auto contrast mode, the upper limit and lower limit will adjust automatically according to the Min temperature and Max temperature on the image, and the image color will distribute based on the color of the temperature scale. -
Page 23: Temperature Measurement Mode
Uncooled Handheld Thermal Camera for Gas Leak Detection·User Manual 8.13.1 Temperature Measurement Mode -20～120℃：the device supports thermal imaging between -20℃ and 120℃. 8.13.2 Above/Below Temperature Alarm 1.High temperature alarm switch: click to enable or disable the function of high temperature alarm. Temperature setting for high temperature alarm: click on the pop-up keyboard and set the alarm temperature, 120℃... -
Page 24: Wi-Fi Settings
Uncooled Handheld Thermal Camera for Gas Leak Detection·User Manual 8.13.3 Wi-Fi Settings Click and enter Wi-Fi settings interface. Hotspot Switch: turn on hotspot and set the network name and password, then click OK. ... -
Page 25: Photo Settings
Uncooled Handheld Thermal Camera for Gas Leak Detection·User Manual Note: 1)The specialized app is needed while this function is enabled. You need connect the hotspot manually after turning hotspot on, and you can transmit the saved pictures or videos to mobile device to perform secondary analysis. -
Page 26: Automatic Power-Off
Uncooled Handheld Thermal Camera for Gas Leak Detection·User Manual Picture-in-picture Adjustment This function can be used to adjust the position of the picture-in-picture. First select coarse tuning and fine tuning, and then adjust the position of the picture-in-picture by the navigation buttons. When finished, click OK or enter button to save the settings. -
Page 27: System Settings
Uncooled Handheld Thermal Camera for Gas Leak Detection·User Manual 8.13.7 System Settings 1. Device Information Click to check model, version, SD card capacity and SD card remaining capacity. 2. Date & Time Click to perform date and time settings. The year can be self-defined from the Year 2020 to the Year 2037, the month, day, hour and min can be changed. - Page 28 Uncooled Handheld Thermal Camera for Gas Leak Detection·User Manual 6. USB Mode There are two options for data transmission: U disk and USB camera. U disk mode: the saved images and videos can be read and analyzed when the camera is connected ...
-
Page 29: Structural Drawings
Uncooled Handheld Thermal Camera for Gas Leak Detection·User Manual 9. Structural Drawings... -
Page 30: Cleaning Thermal Camera
Uncooled Handheld Thermal Camera for Gas Leak Detection·User Manual 10.Cleaning Thermal Camera 10.1 Cleaning Camera Housing, Cables and Other Items Camera Housing, Cables and Other Items One of the following liquids can be used. Liquids 1.Warm water 2.A Weak detergent solution Cleaning Tools A soft cloth Please follow this procedure:... -
Page 31: Cleaning Infrared Lens
Uncooled Handheld Thermal Camera for Gas Leak Detection·User Manual 10.2 Cleaning Infrared Lens Cleaning Infrared Lens One of the following liquids can be used. 1.Commercial lens cleaning liquid with more than Liquids 30% is opropyl alcohol. 2. 96% ethyl alcohol(C OH). - Page 32 Uncooled Handheld Thermal Camera for Gas Leak Detection·User Manual Worth comes from Service Technical Support Hotline： 24h Hotline: 400-883-0800 400-998-3088 Customized Services...
