- Page 1 Saim SCL Series Quick Start Guide V2.0 IRay Technology Co., Ltd.

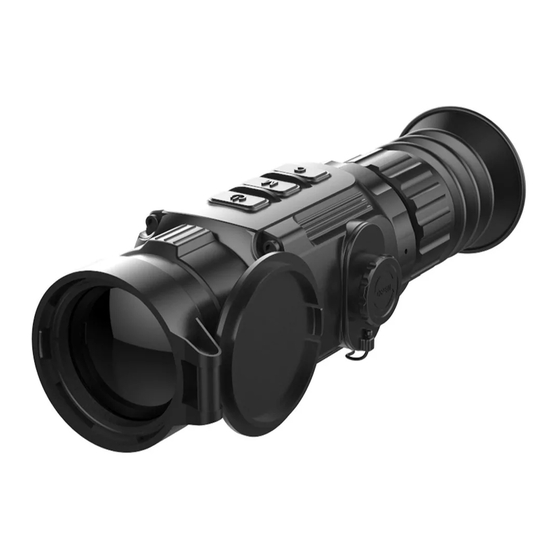

- Page 2 11th Guiyang Street, YEDA, Yantai 264006, P. R. China 400-998-3088 1. Description The Saim series is a low-cost thermal rifle scope, which can be mounted on various firearms for night hunting and target observation. Its compact size and lightweight design make it easy to carry. What makes it outstanding is long operation hours, good concealment and great ability to detect, recognize and identify objects or targets fast and easy.
-
Page 3: Diopter Adjustment
11th Guiyang Street, YEDA, Yantai 264006, P. R. China 400-998-3088 ➢ Open the battery compartment cover anticlockwise according to the schematic diagram on the cover. ➢ Install the batteries correctly as shown in Figure 2. ➢ After installing the batteries, cover and push the battery bay cover till hear “click”... -
Page 4: Shortcut Menu
11th Guiyang Street, YEDA, Yantai 264006, P. R. China 400-998-3088 the M button four times to invoke the reticle for the first time use. Press and hold P + M + C button simultaneously for three seconds to achieve the Shortcut key for switch the reticle on/off. -
Page 5: Advanced Menu
11th Guiyang Street, YEDA, Yantai 264006, P. R. China 400-998-3088 Pop up Shortcut Menu2 to adjust E-zoom and screen brightness ➢ Short press P button to switch the digital zoom from 1x, 2x, 3x, 4x. 2 times ➢ Press C button to switch 1 to 4 screen brightness level. - Page 6 11th Guiyang Street, YEDA, Yantai 264006, P. R. China 400-998-3088 Fig.3 Advanced Menu H. Ultraclear Mode Under heavy fog, rain or snow weather, Ultraclear Mode will show more image details. I. Zeroing ➢ Before setting Zeroing, please make sure that the reticle is on and select the zeroing type in advanced menu firstly.
- Page 7 11th Guiyang Street, YEDA, Yantai 264006, P. R. China 400-998-3088 ➢ Then aim the center of the reticle at the bull’s-eye 100 meters away and shoot. ➢ Locate the bullet hole after shot. ➢ If the bullet hole can be seen on the display screen: ⚫...
-
Page 8: Reset To Default
11th Guiyang Street, YEDA, Yantai 264006, P. R. China 400-998-3088 ➢ In the zeroing interface, there is a white dot that represents the original position of the reticle before calibration. ➢ After zeroing, the center of all reticles will be changed accordingly. J. - Page 9 11th Guiyang Street, YEDA, Yantai 264006, P. R. China 400-998-3088 and exit to the normal interface. Fig.6 Default resetting interface 4. Key Function Customization Saim series supports the function customization of shortcut keys that users can set the shortcut functions according to their personal preferences or usage frequency. The operation is as follows: ➢...
- Page 10 11th Guiyang Street, YEDA, Yantai 264006, P. R. China 400-998-3088 Fig.7 Operation procedure Fig.8 key function customization interface 5. Shortcut keys instructions To quickly realize the frequently used functions, the Saim made the default shortcut keys of the most commonly used functions in the observation interface. ⚫...
- Page 11 11th Guiyang Street, YEDA, Yantai 264006, P. R. China 400-998-3088 ⚫ Long press M+C button to achieve stadiametric rangefinder. After entering the menu of stadiametric rangefinder, press P + C button to adjust the scale plate to move up and down, and long- press M button to exit. 六、技术参数...
